Control Buttons

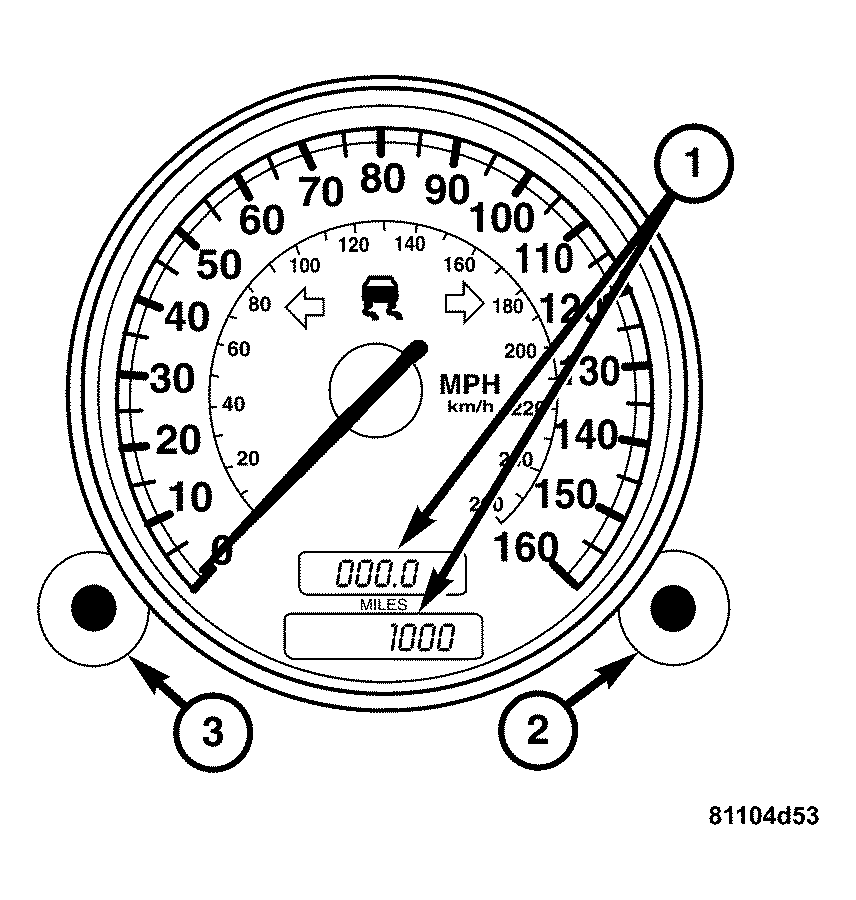

Fig 1: Identifying Instrument Cluster Gauges And Control Dials

Courtesy of DAIMLERCHRYSLER CORP.

The Instrument Cluster has two control dials which are to the left and right of the speedometer face.

• The right control dial (2) is used to adjust the time. Refer to the Owner's Manual.
• The left control dial (3) is used to regulate the instrument illumination, activate the display illumination, reset the trip odometer display, and operate the FSS maintenance display.
