Steering Angle Sensor: Installation

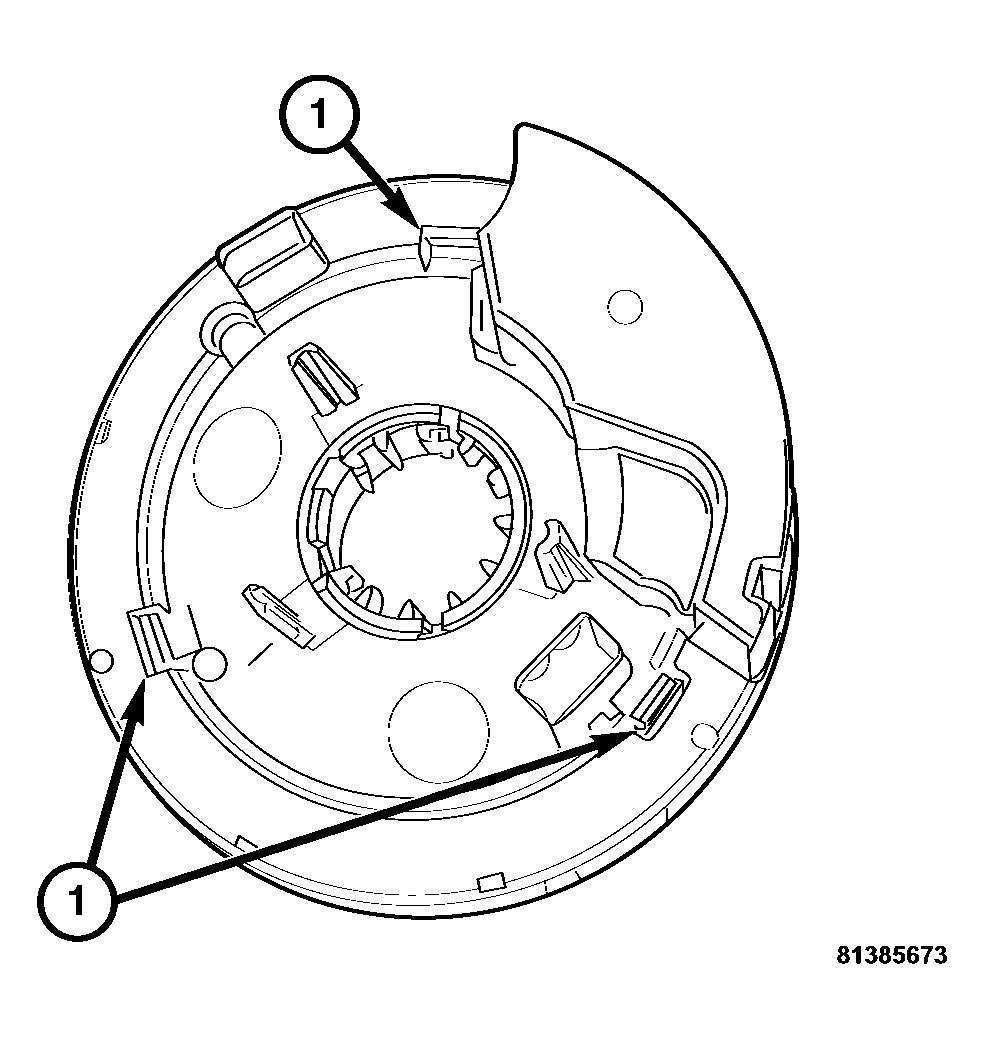

Fig 1: Locating Alignment Points On Component Housing

Courtesy of DAIMLERCHRYSLER CORP.

Locate and align the alignment points on the component housings (1).
Install the steering angle sensor to the clockspring.

Fig 2: Identifying Retension Tabs
Courtesy of DAIMLERCHRYSLER CORP.
Snap the steering angle sensor retaining tabs (1) onto the clockspring.

Fig 3: Installing Clockspring Onto Steering Column
Courtesy of DAIMLERCHRYSLER CORP.
Install the clockspring onto the steering column. (Refer to ELECTRICAL/RESTRAINTS/CLOCKSPRING - INSTALLATION) .
