Rear Wheel Speed Sensor: Removal

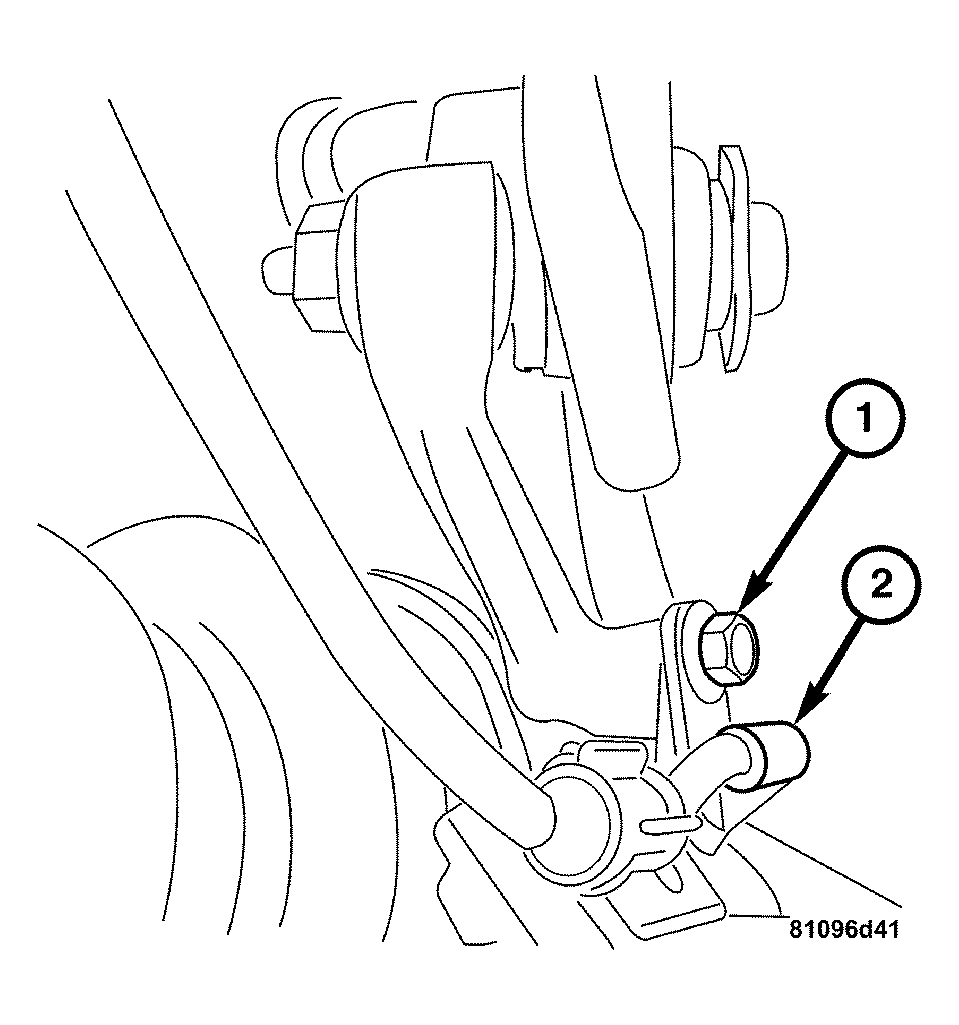

Fig 1: Removing/Installing Rear Wheel Speed Sensor
GC0033673Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the bolt (1) attaching the wheel speed sensor to the rear knuckle.
  2. Remove the rear wheel speed sensor (2) from the knuckle.

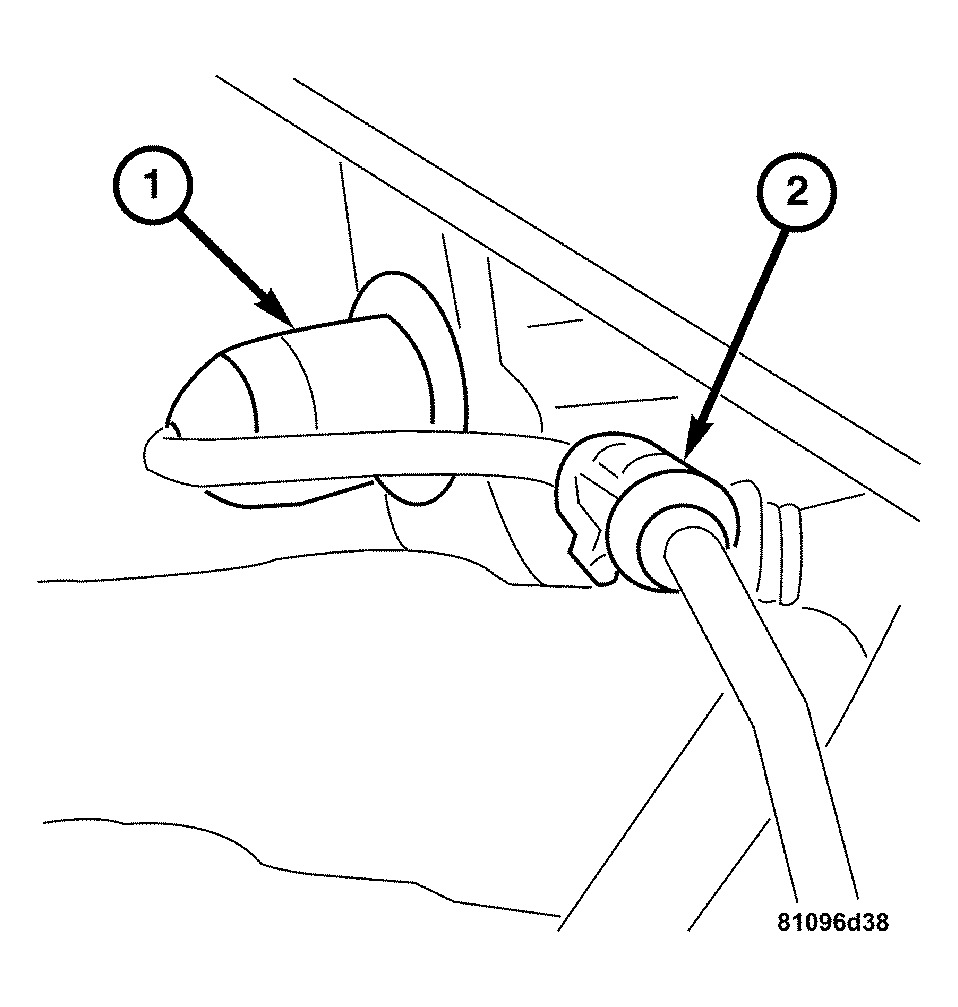

    Fig 2: Identifying Rubber Grommet & Wheel Speed Sensor Mount
    GC0033911Courtesy of DAIMLERCHRYSLER CORP.
  3. Pull the rubber grommet (1) out of the body. Unhook the wheel speed sensor wire harness from the mount (2).

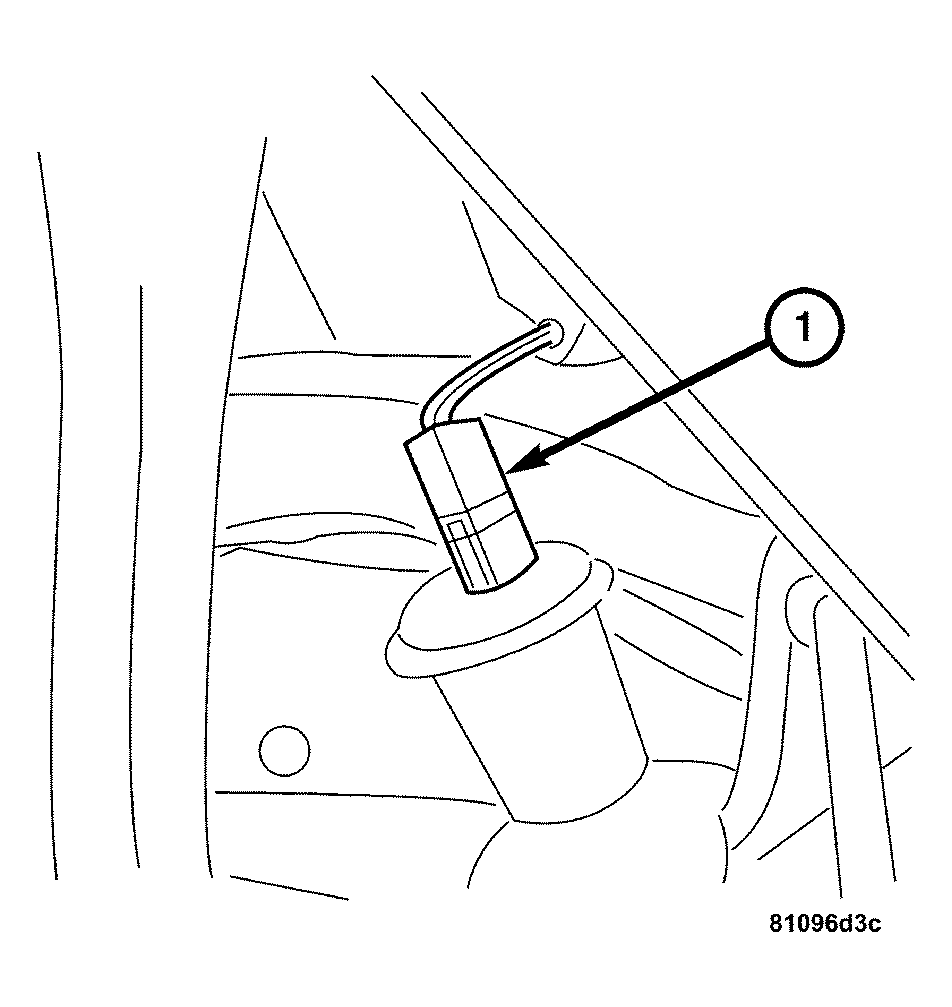

    Fig 3: Disconnecting/Connecting Wheel Speed Sensor Harness Connector
    GC0033912Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect the wheel speed sensor harness connector (1).
