Brake Pressure Sensor: Description

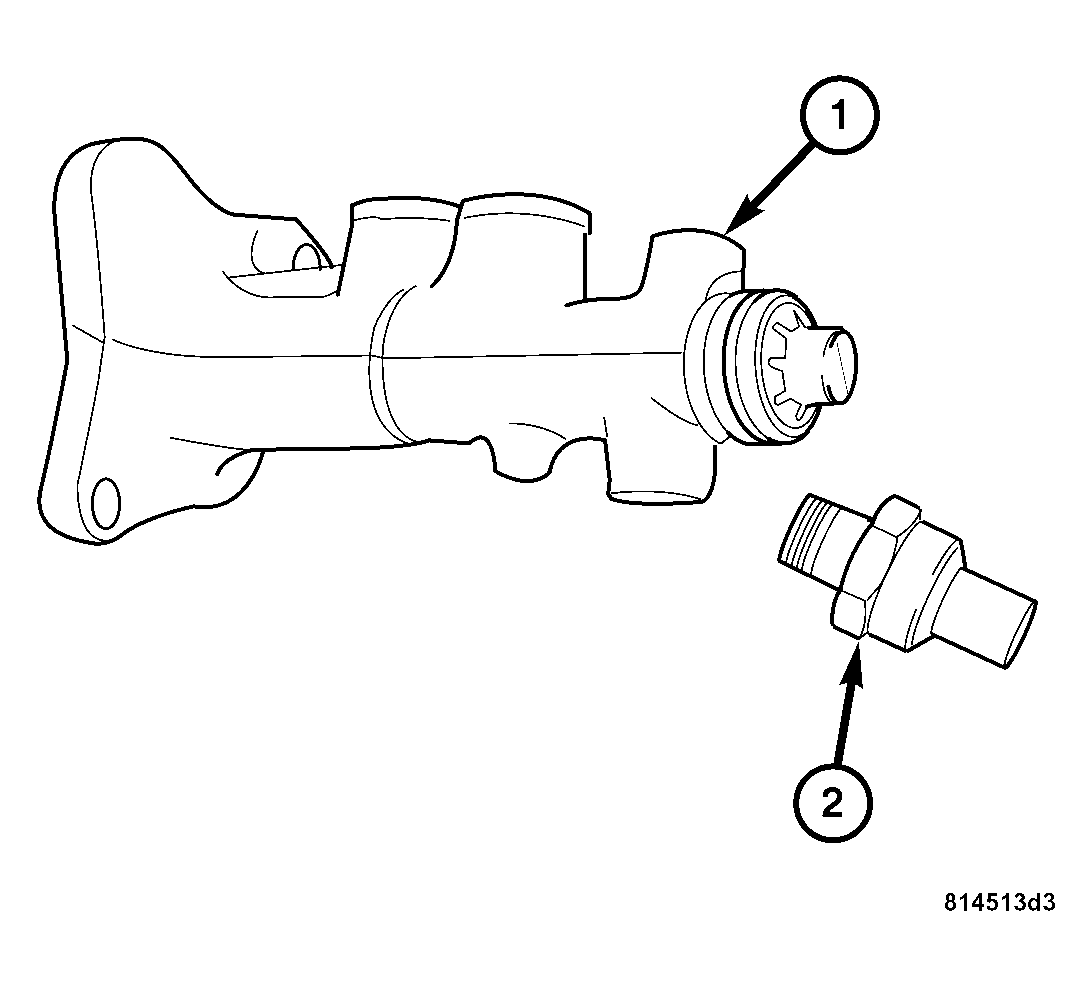

Fig 1: Identifying Master Cylinder & Brake Pressure Sensor

Courtesy of DAIMLERCHRYSLER CORP.

There is one Brake Pressure Sensor (2) incorporated into the master cylinder (1) on this vehicle. The sensor is used to monitor brake pressure for the hydraulic brake system. The sensor is used as an input to the Controller Antilock Brake (CAB) module.
