Heated Seat Module: Installation

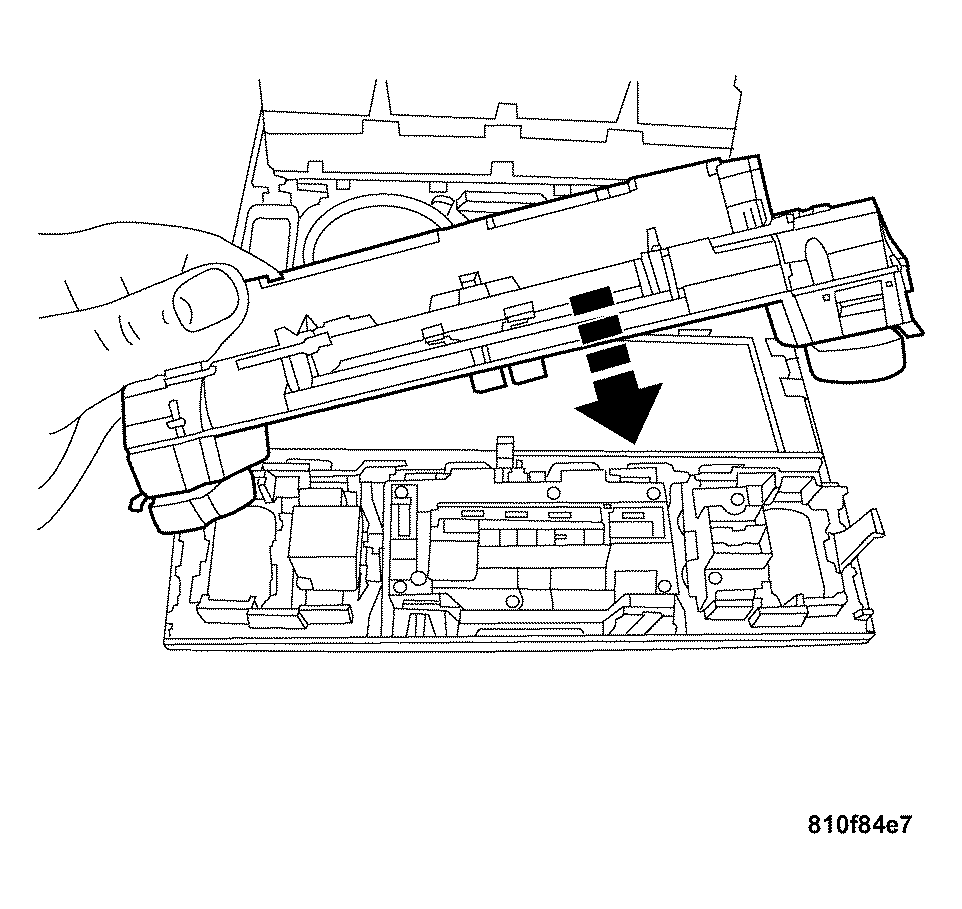

Fig 1: Installing Heated Seat Switch

Courtesy of DAIMLERCHRYSLER CORP.

The Heated Seat Control Module is integrated within the Heated Seat Switch assembly. For complete Heated Seat Control Module installation procedures, (Refer to ELECTRICAL/HEATED SEATS/DRIVER HEATED SEAT SWITCH - INSTALLATION) .
