Modulating Pressure Control Solenoid Valve
The modulating pressure control solenoid valve is located in the shell of the electric valve control unit and pressed against the shift plate by a spring.
Its purpose is to control the modulating pressure, depending on the continuously changing operating conditions, such as load and gear change.

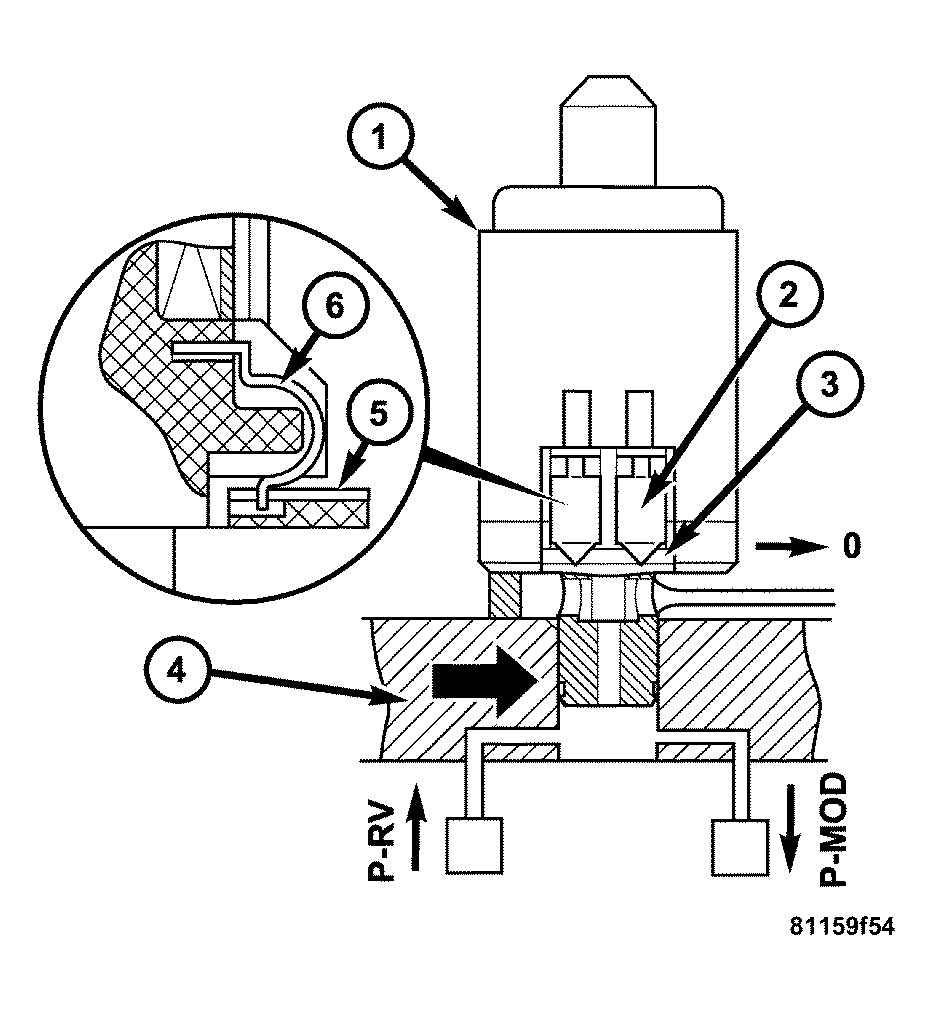

The modulating pressure regulating solenoid valve (1) has an interference fit and is sealed off to the valve body of the shift plate (4) by a seal (arrow). The contact springs (2) at the solenoid valve engage in a slot in the conductor tracks (3). The force of the contact springs (2) ensures secure contacts.
