Removal - Except SRT

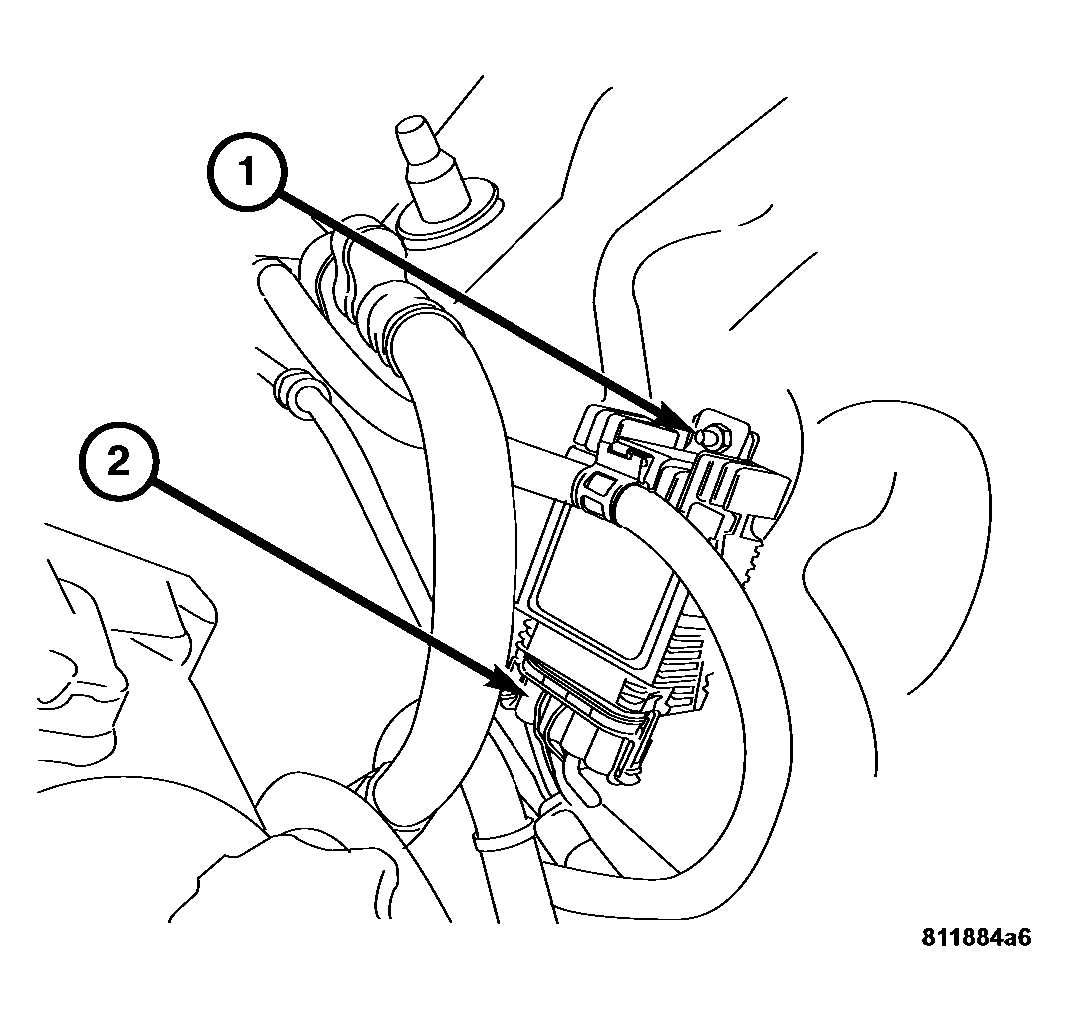

Fig 1: Identifying Cooling Fan Module & Radiator Fan Control Module Harness Connector
GC0033981Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect the negative battery cable.
  2. Disconnect the radiator fan control module harness connector (2).
  3. Remove the retaining nuts at the top and bottom of the cooling fan module (1).
  4. Remove the cooling fan module from the engine compartment.
