(P2009) Short Runner Solenoid Circuit Low: Notes

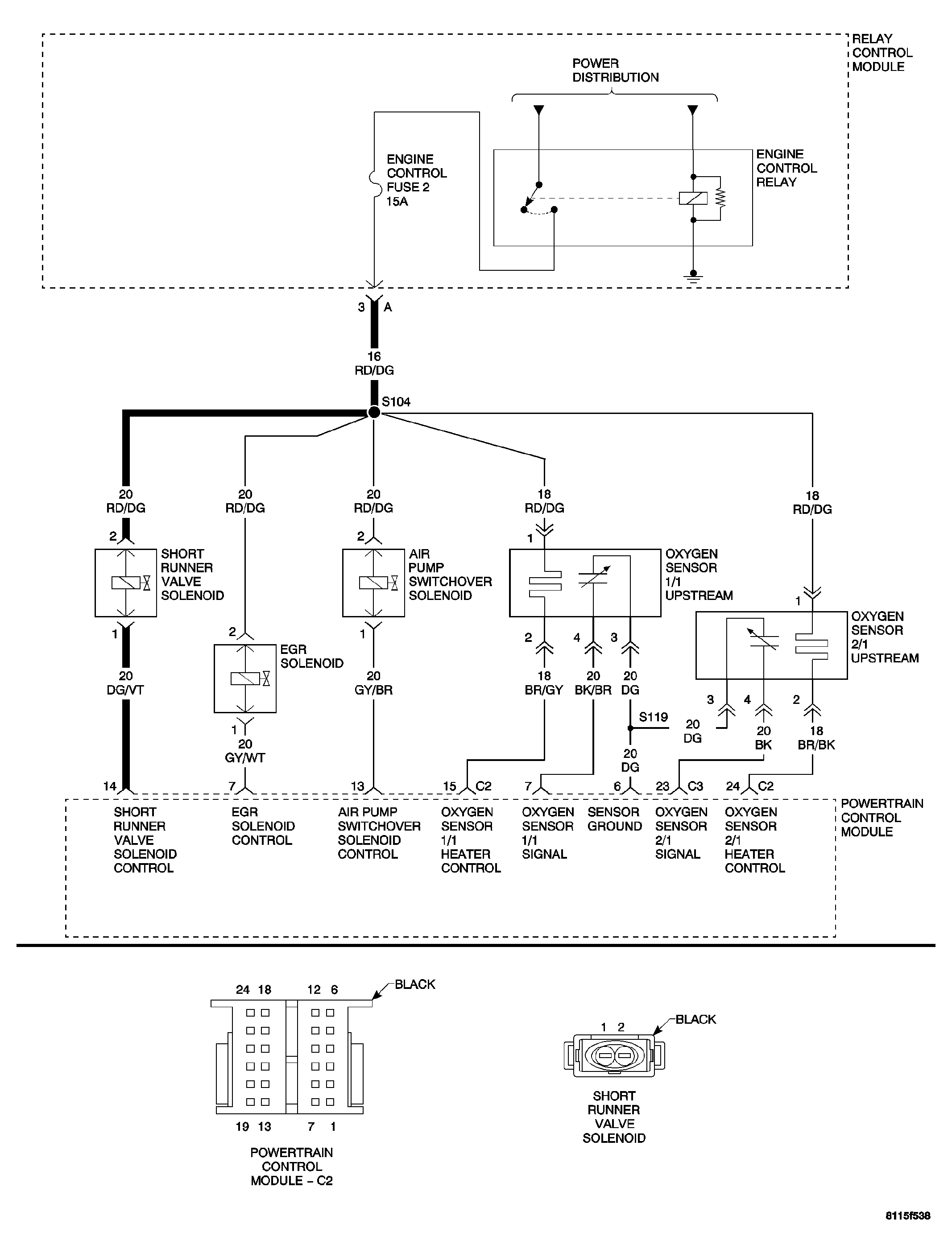

Fig 1: Short Runner Solenoid Circuit Schematic

GC0034362

Courtesy of DAIMLERCHRYSLER CORP.
