DTC 9711: Right Rotation Relay Control Circuit Open/Short To B(+): Notes

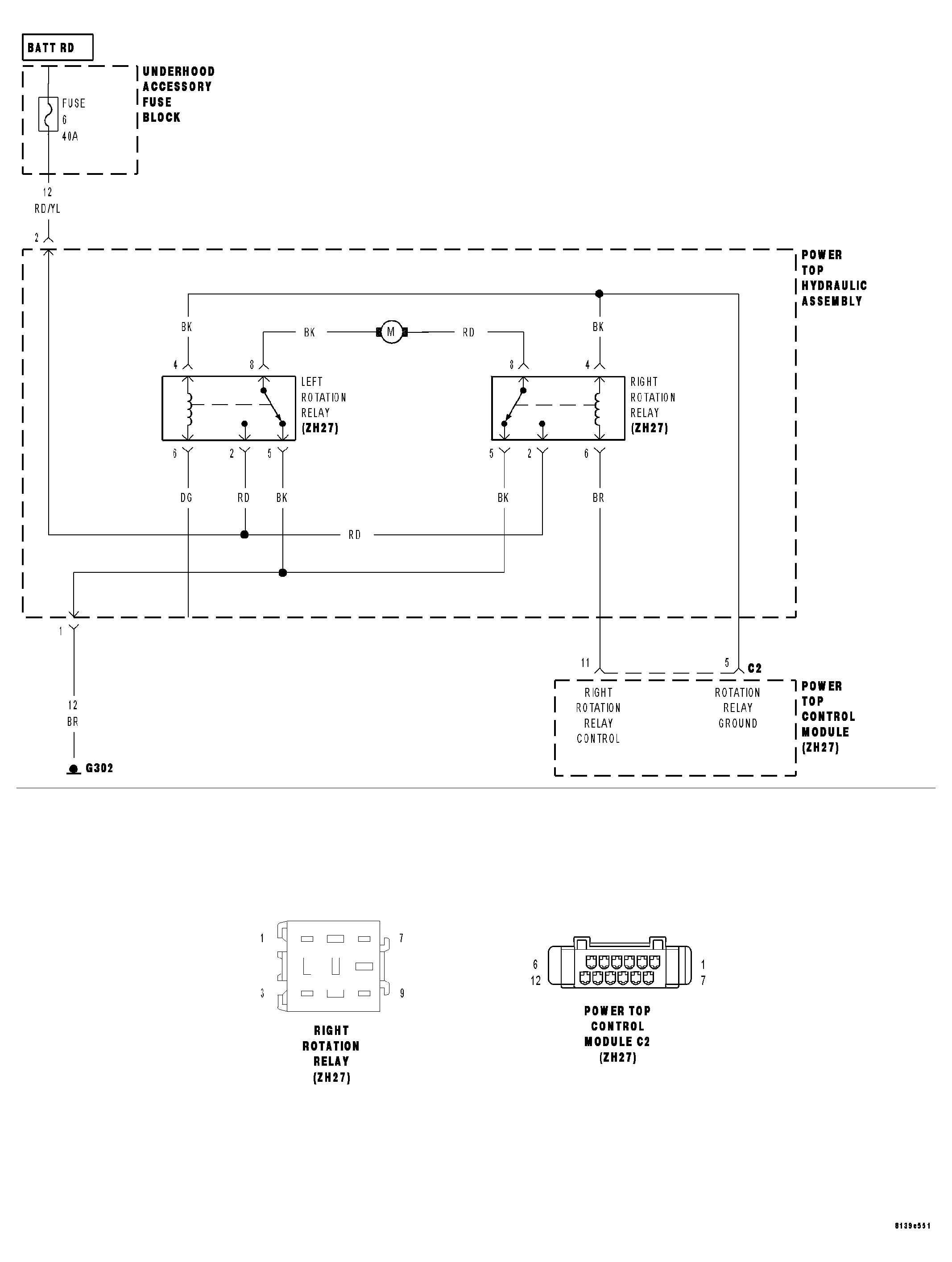

Fig 1: Power Top Rotation Relay Circuit Schematic

Courtesy of DAIMLERCHRYSLER CORP.

1. When Monitored: With the ignition on, the Power Top Control Module (PTCM) continuously senses the voltage on the Right Rotation Relay Control circuit.
2. Set Condition: When the PTCM senses B(+) on the Right Rotation Relay Control circuit.

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.
