Wiper Arms: Installation

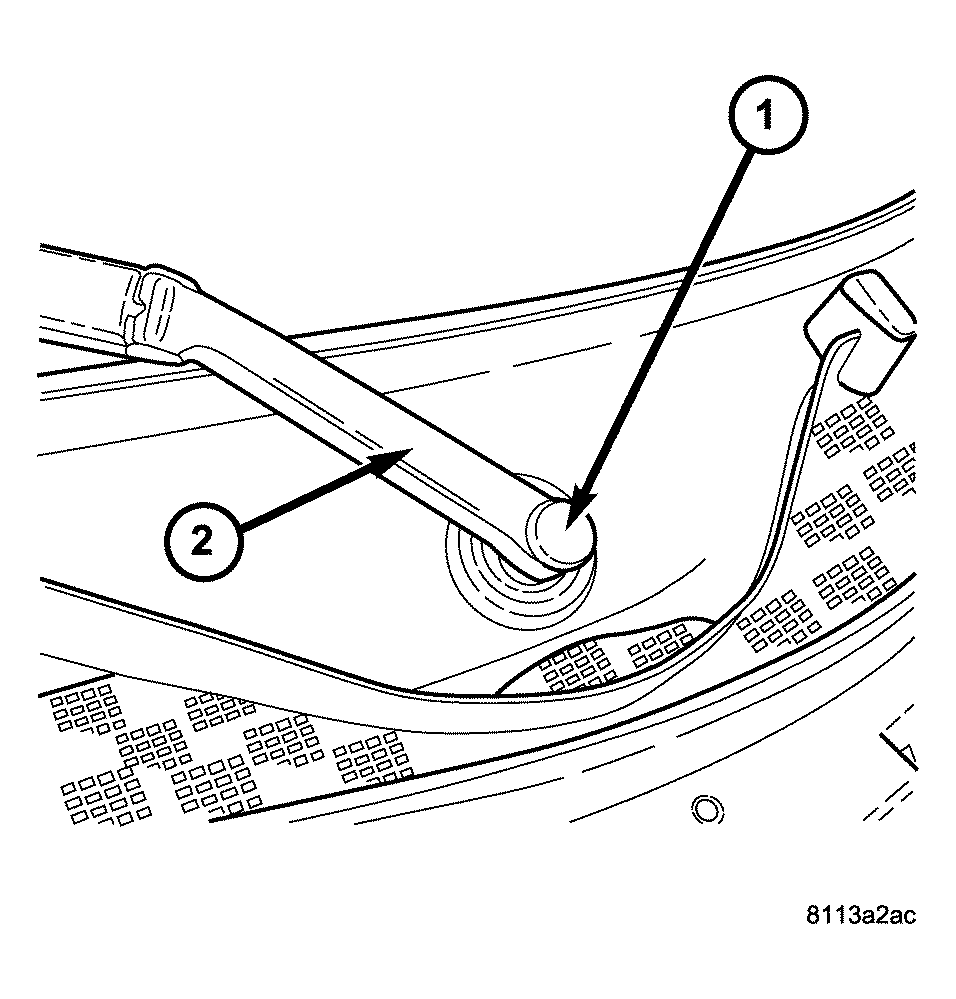

Fig 1: Removing/Installing Wiper Arm

Courtesy of DAIMLERCHRYSLER CORP.

Install the pivot end of the wiper arm (2) on the wiper pivot shaft.
Install the wiper arm attachment nut (1) finger tight.

Fig 2: Aligning Wiper Arm
Courtesy of DAIMLERCHRYSLER CORP.
Carefully set the wiper arm down so the wiper blade touches the glass surface.
Align the center of the wiper blade (2) with the top of the dot matrix (1) on the bottom of the windshield. Torque the wiper arm retaining nut to 19 N.m (14 ft. lbs.).

Fig 3: Identifying Plastic Nut Cap & Wiper Arm
Courtesy of DAIMLERCHRYSLER CORP.
Press the plastic nut cap (1) into the wiper arm (2) to cover the wiper arm attachment nut.

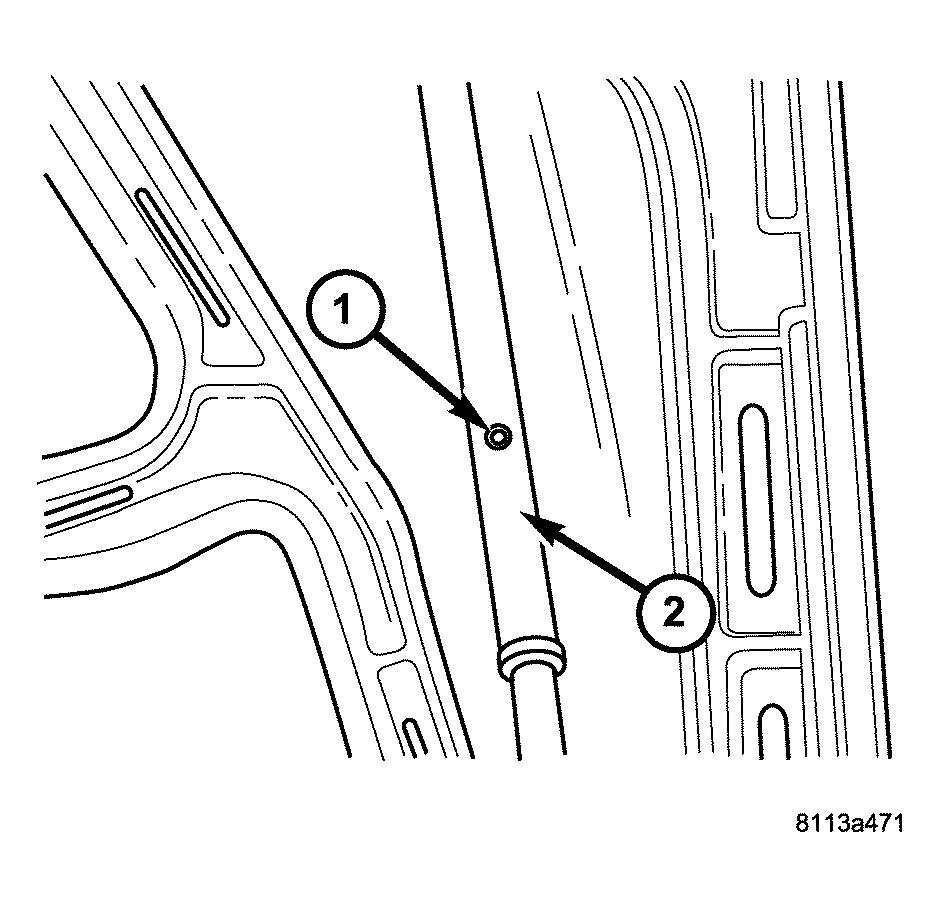

Fig 4: Identifying Hood Prop Release Button & Hood Prop Outer Sleeve
Courtesy of DAIMLERCHRYSLER CORP.
Press the hood prop release button (1) and lower the hood prop outer sleeve (2), then close the hood.
