*Both Power Windows Inoperative: Notes
| POSSIBLE CAUSES |
|---|
| FUSED B(+) CIRCUIT OPEN |
| POWER WINDOW SWITCH GROUND CIRCUIT OPEN |
| BODY CONTROL MODULE |

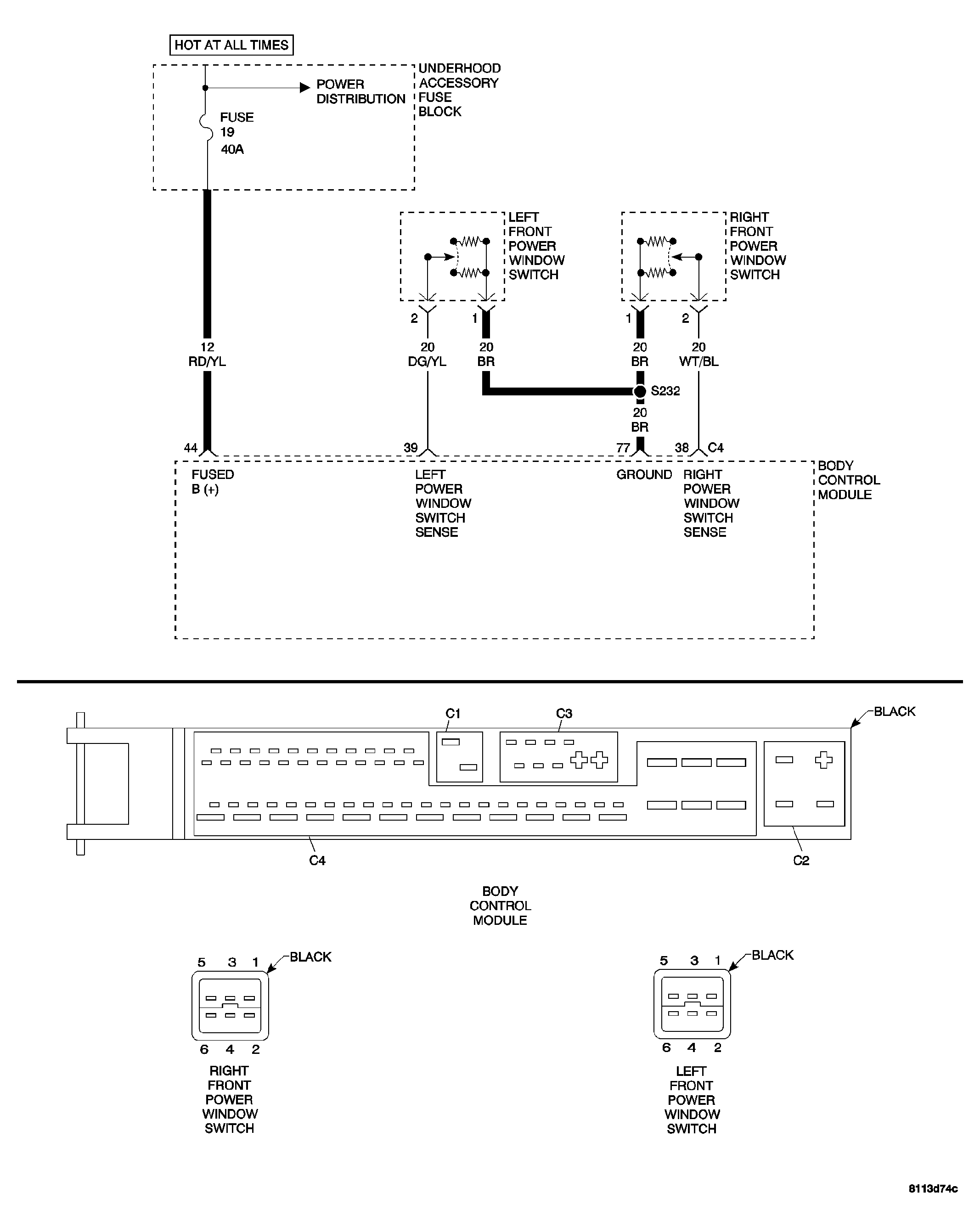

For a complete Power Windows Circuit Diagram, (Refer to ELECTRICAL/POWER WINDOWS - SCHEMATICS AND DIAGRAMS) .
| POSSIBLE CAUSES |
|---|
| FUSED B(+) CIRCUIT OPEN |
| POWER WINDOW SWITCH GROUND CIRCUIT OPEN |
| BODY CONTROL MODULE |
For a complete Power Windows Circuit Diagram, (Refer to ELECTRICAL/POWER WINDOWS - SCHEMATICS AND DIAGRAMS) .
