Rear Window Antenna Module: Installation

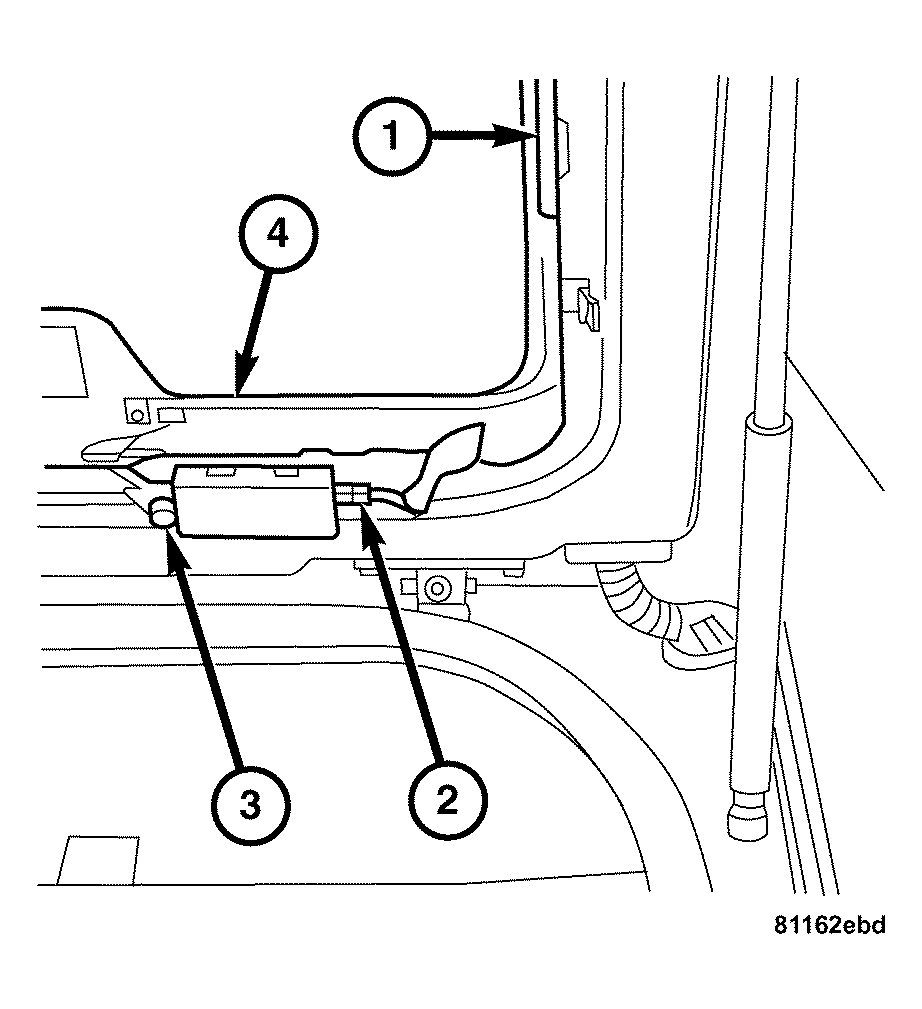

Fig 1: Identifying Antenna Components

Courtesy of DAIMLERCHRYSLER CORP.

1. Install the rear window antenna module to the liftgate and attach with the retaining screw (3) and secure.
2. Install the rear window antenna module harness connectors (2).
   NOTE: Use care when routing harnesses and allow sufficient clearance near trim panel pinch points.
3. Install the liftgate interior trim panel. (Refer to BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/TRIM PANEL - INSTALLATION) .
4. Connect the negative battery cable.
