Data Link Connector: Description

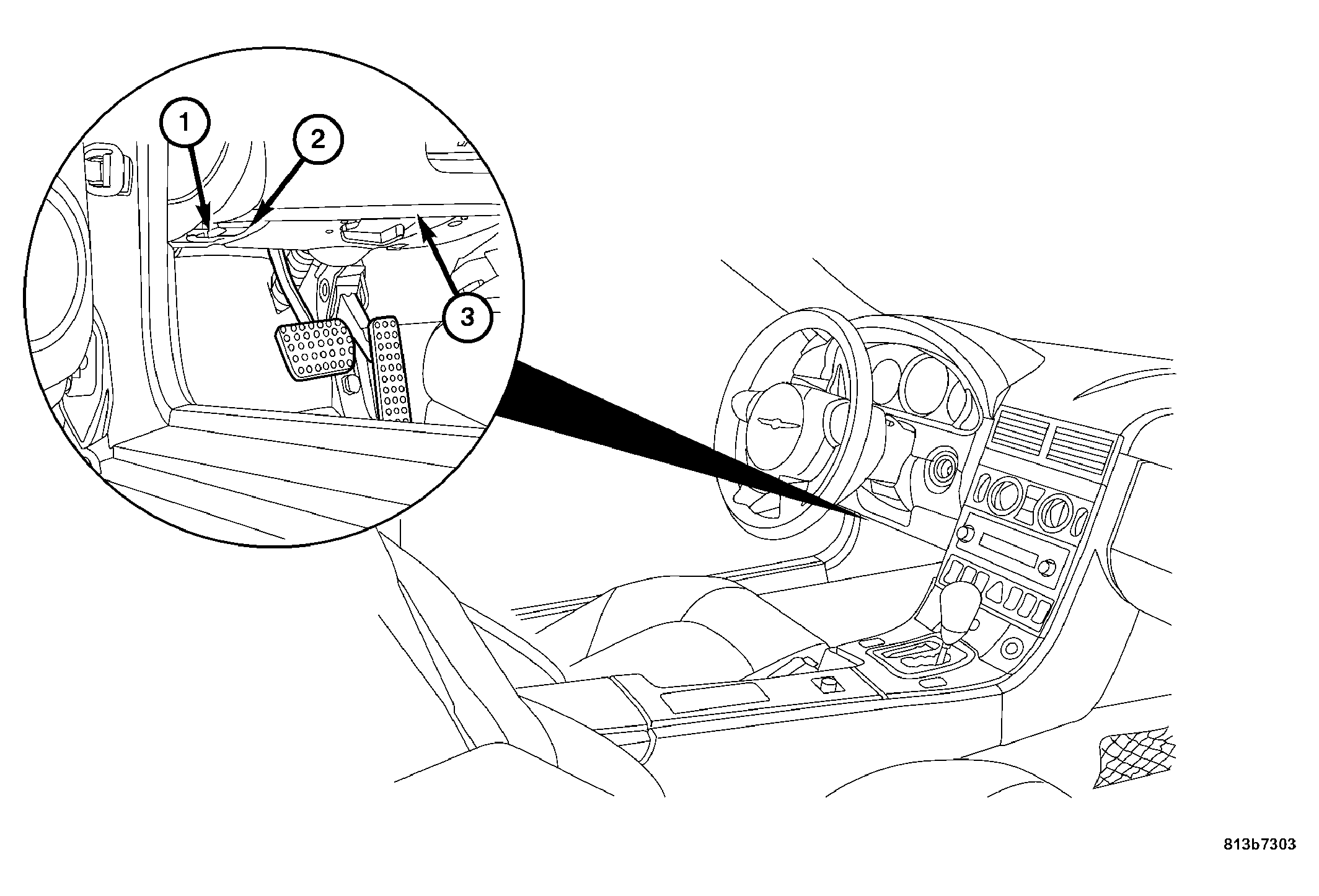

Fig 1: Locating Data Link Connector

Courtesy of DAIMLERCHRYSLER CORP.

The Data Link Connector (DLC) (1) is located at the lower edge of the instrument panel (3) near the hood release (2). The exposed connector terminals are protected by a plastic cover which flips open if access is needed.
