Power Distribution Center: Removal
WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of DAIMLERCHRYSLER CORP.
- Disconnect and isolate the battery negative cable.

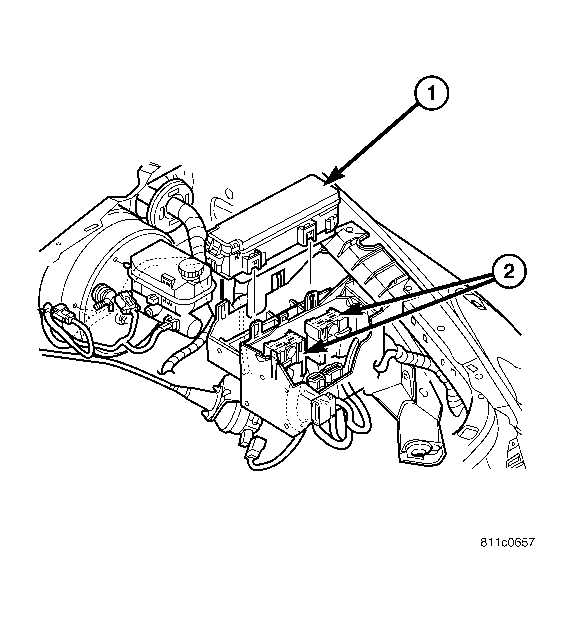

- Depress retaining tabs on the side on the PDC (1).
- Disconnect electrical harness connectors (2) and remove PDC.
