Section 365 (Interior/Exterior): Liftgate: Support-Strut: Hinge: Removal

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

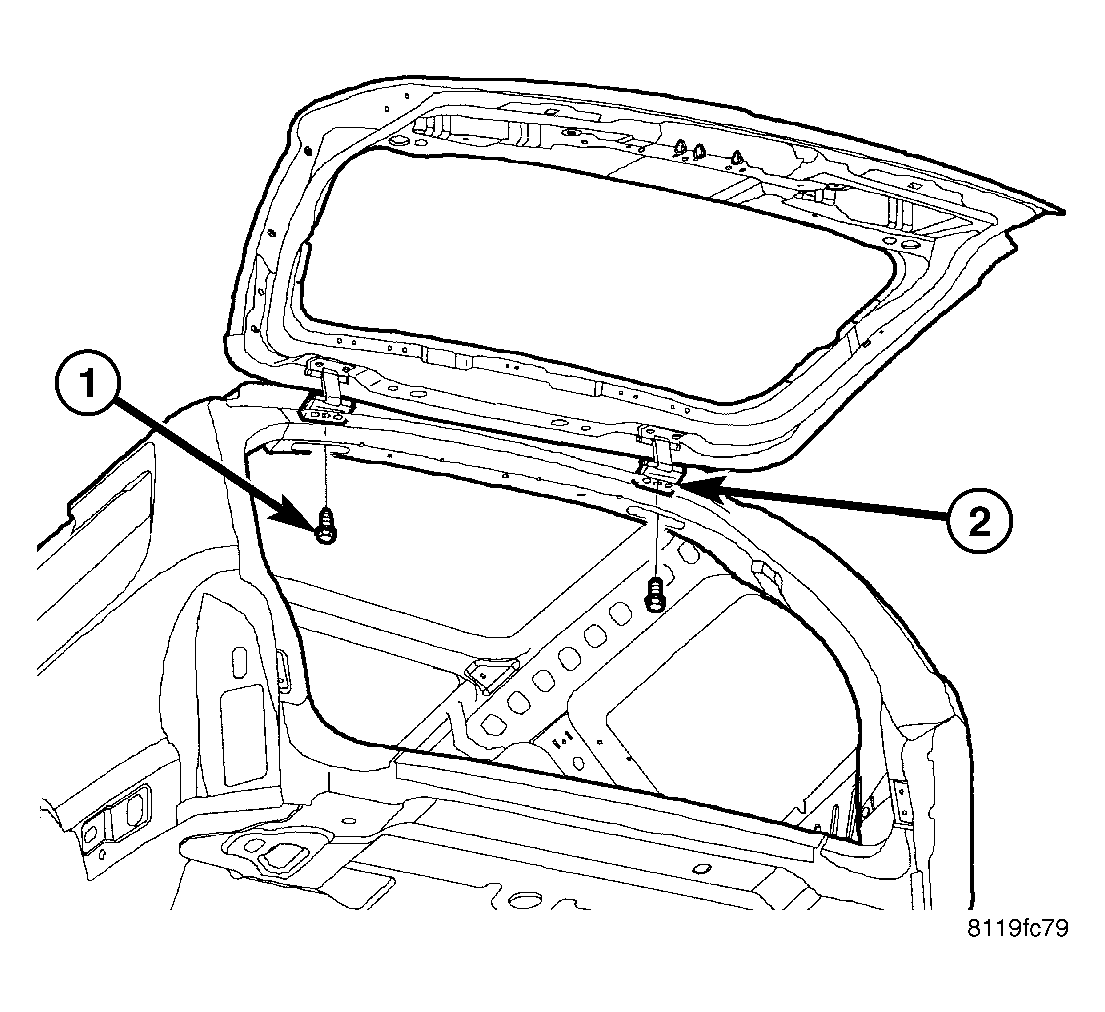

Fig 1: HINGES

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: It is not necessary to remove the liftgate to replace one or both hinges. The hinges can be replaced one at a time.

NOTE: A suitable body sealant should be used when removing or moving the hinges.

Support liftgate on a suitable lifting device.
Using a trim stick C-4755 or equivalent, remove the upper rear headliner trim.
Using a grease pencil or equivalent, mark the location of the hinge to aid installation.
Remove the liftgate bolts (2).

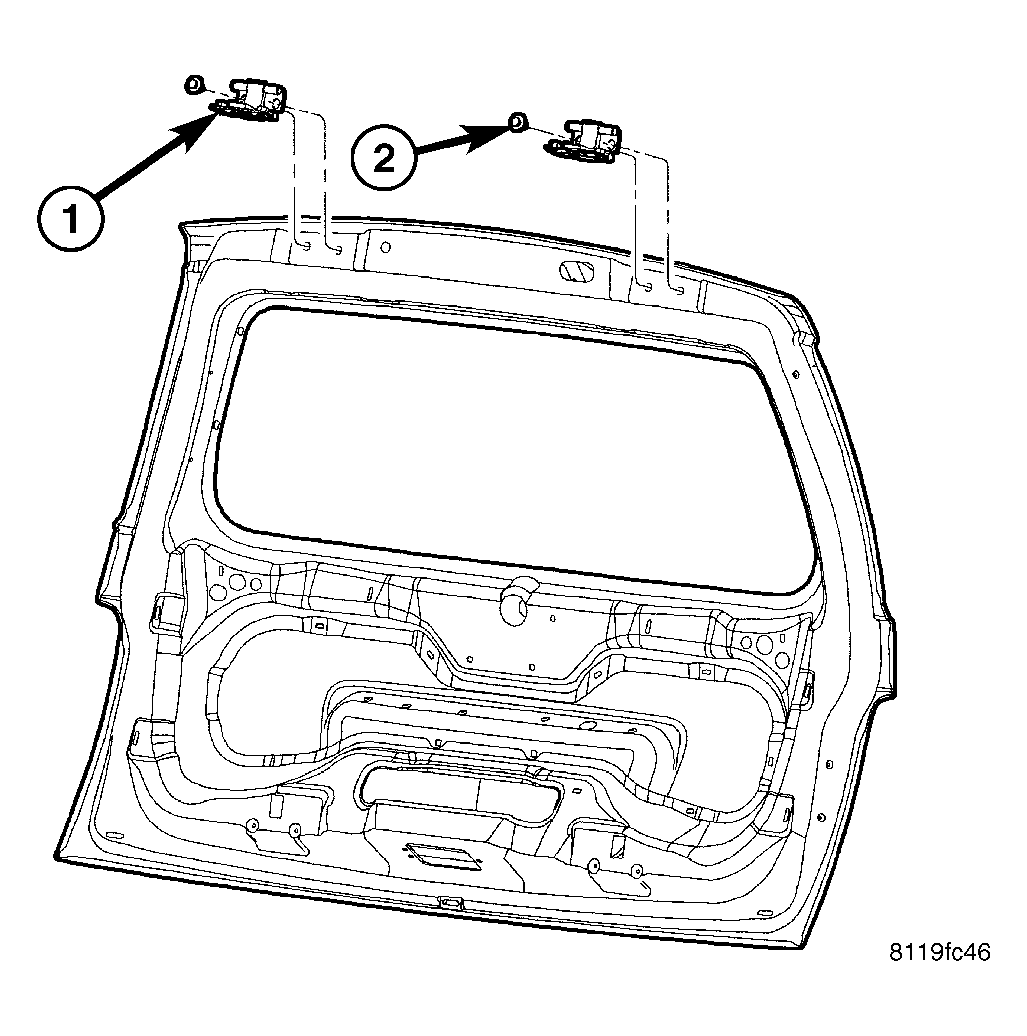

Fig 2: LIFTGATE
Courtesy of DAIMLERCHRYSLER CORP.
Remove the body bolts (1) and remove the hinge.
