4X4 With Traction Control

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

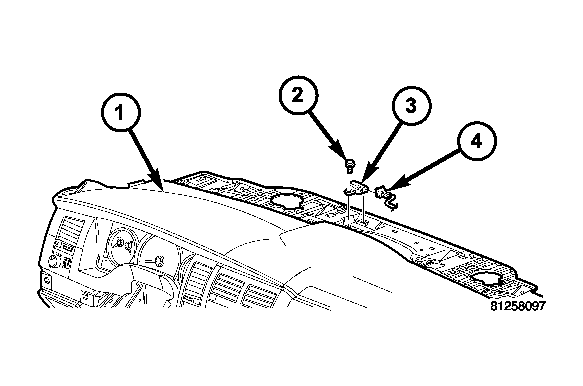

Fig 1: Locating G-Sensor

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: If the G-sensor (3) was mounted incorrectly in the area designed for the GPS antenna, the G-sensor will be off 90 ° and not function properly.

The G-sensor (3) is located under the instrument panel top cover (1). The sensor (3) must be mounted with the electrical connector (4) facing the passenger side of the vehicle to function properly.
