Section 320 (Interior/Exterior): Tailgate: Latch: Installation

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

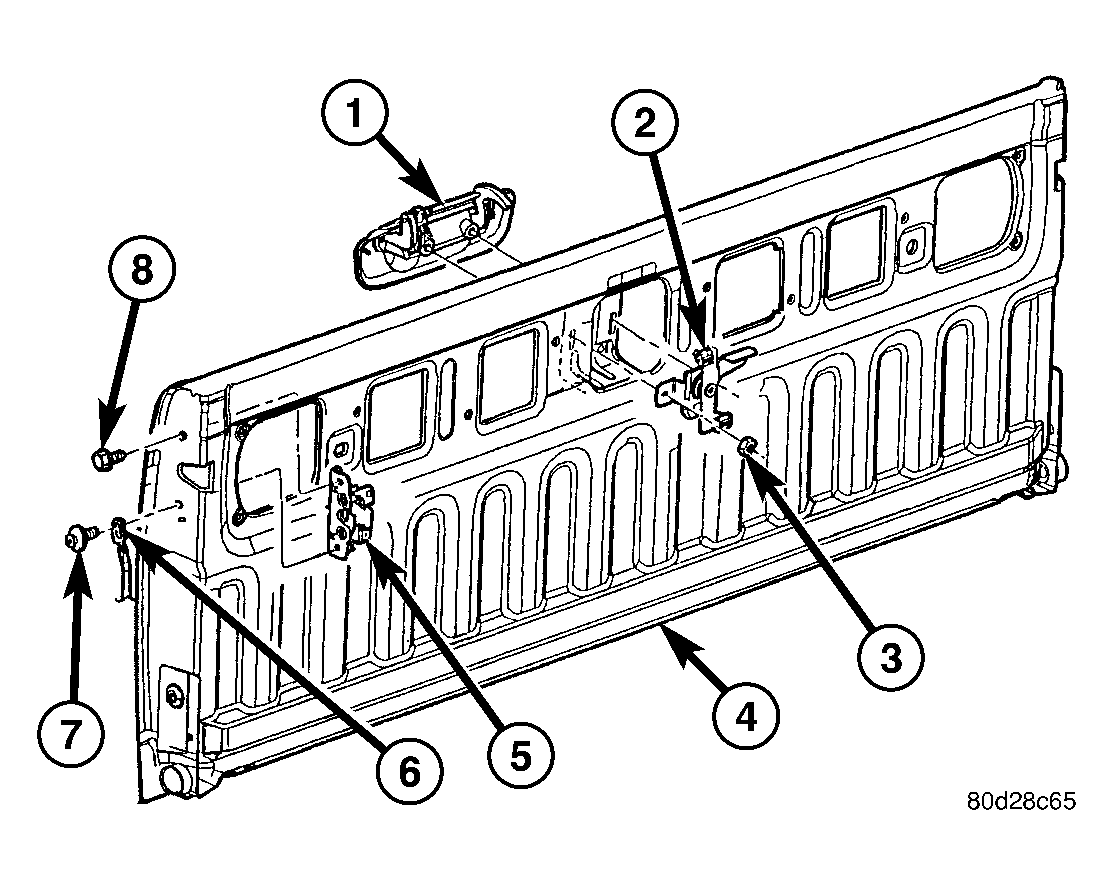

Fig 1: Identifying Latch Handle - Latch Components

Courtesy of DAIMLERCHRYSLER CORP.

If removed, install the actuator rod onto the latch (5) being serviced.
Install the latch and actuator rod into the tailgate (4) as an assembly.
Position the tailgate check cable (6) onto the tailgate and install the two bolts (7 and 8) that secure the latch and the check cable to the tailgate. Tighten the bolts to 23 N.m (17 ft. lbs.).

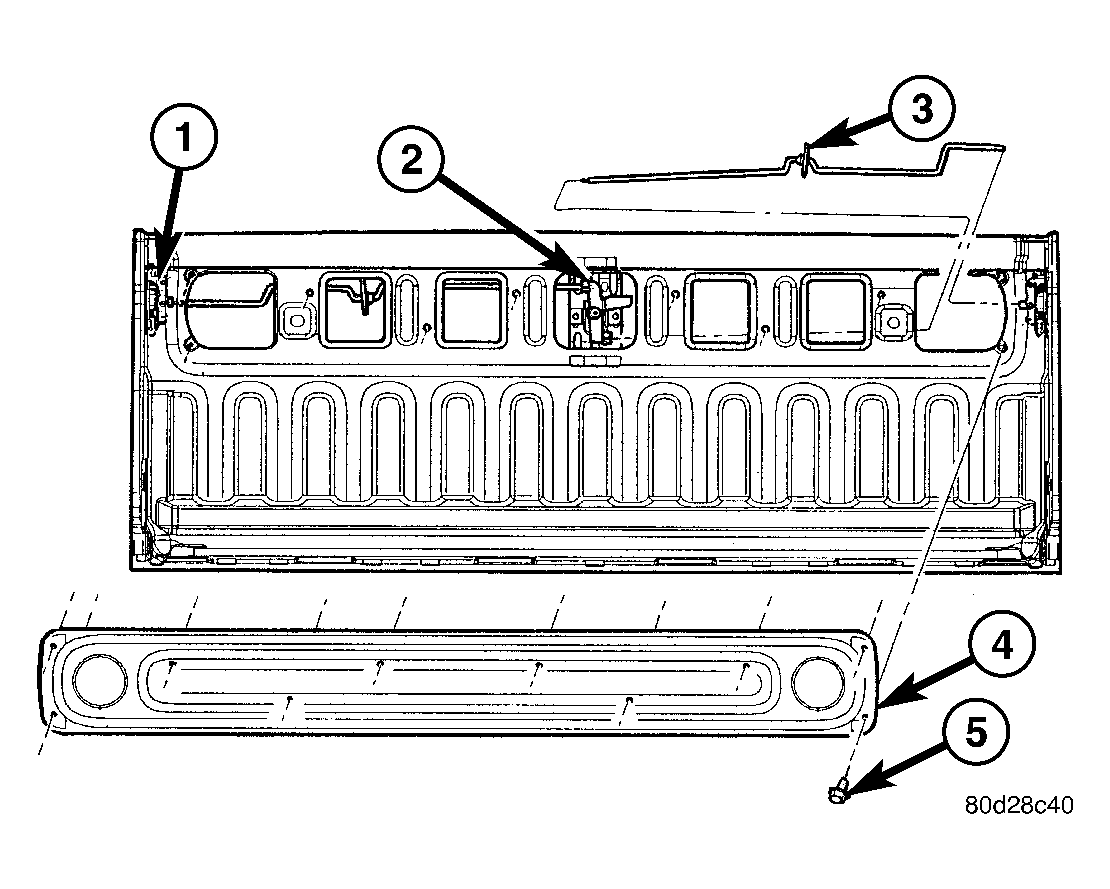

Fig 2: Identifying Tailgate Components
Courtesy of DAIMLERCHRYSLER CORP.
Locate the actuator rod (3) to the control (2) using the reference mark made during the removal procedure and connect the rod to the control.
Position the tailgate cover (4) onto the inside of the tailgate.
Install the ten bolts (5) that secure the tailgate cover to the tailgate. Tighten the bolts securely.
If equipped, install the tailgate liner onto the tailgate.
