3.7L/4.7L/5.7L Engine

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Loosely assemble exhaust tailpipe to permit proper alignment of all parts.
Connect the support hangers.
Position the exhaust tailpipe for proper clearance with the underbody parts.
Tighten all clamp nuts to 54.2 N.m (40 ft. lbs.) torque.
Check the exhaust system for contact with the body panels. A minimum of 25.4 mm (1.0 in.) is required between the exhaust system components and body/frame parts. Make the necessary adjustments, if needed.
Lower the vehicle.

Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.

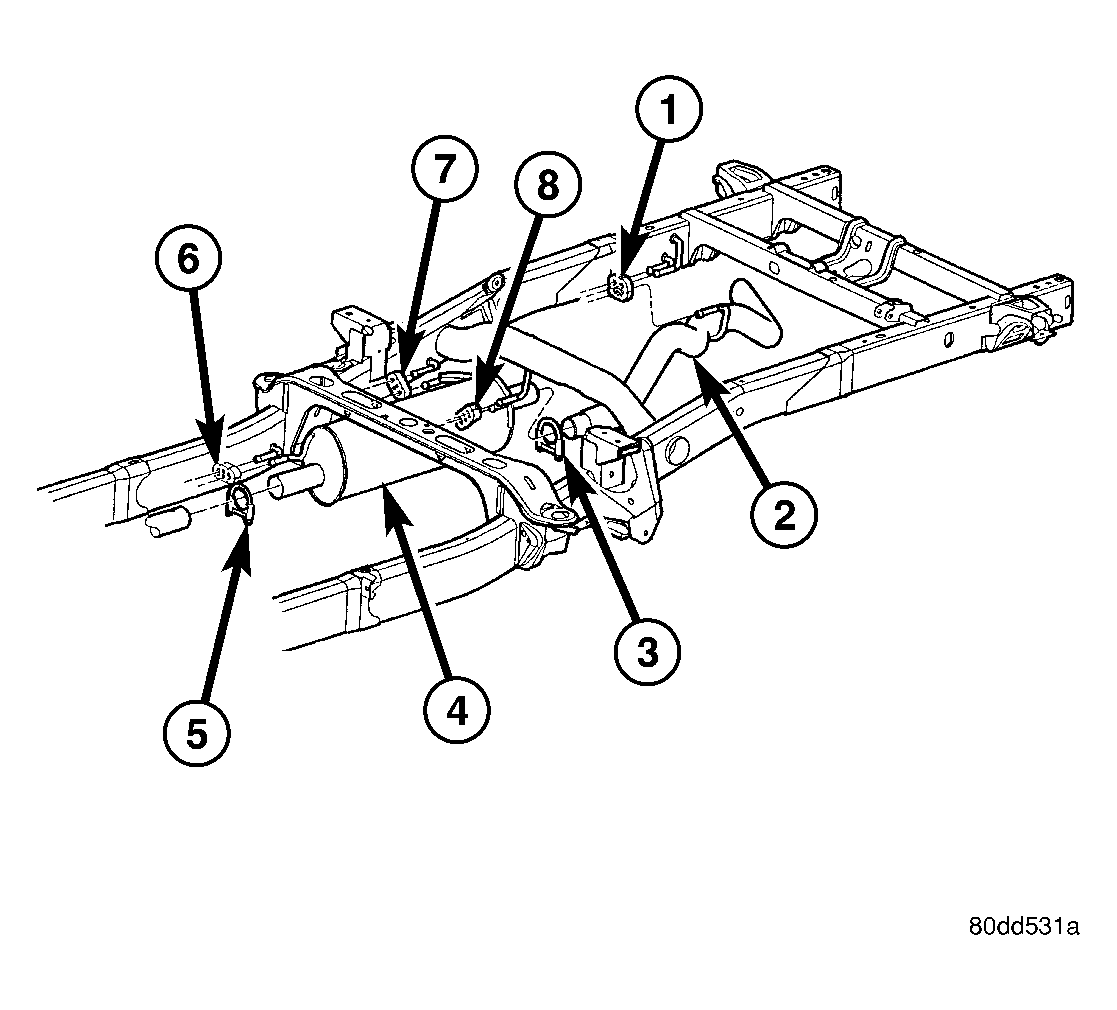

Fig 1: Tailpipe - 3.7L/4.7L/5.7L

Courtesy of DAIMLERCHRYSLER CORP.

1 - INSULATOR

2 - TAILPIPE

3 - CLAMP

4 - MUFFLER

5 - CLAMP

6 - INSULATOR

7 - INSULATOR

8 - INSULATOR
