A/C System

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Snap Ring Pliers C-4574

Courtesy of DAIMLERCHRYSLER CORP.

Snap Ring Pliers C-4574 are required to service the A/C clutch and field coil.

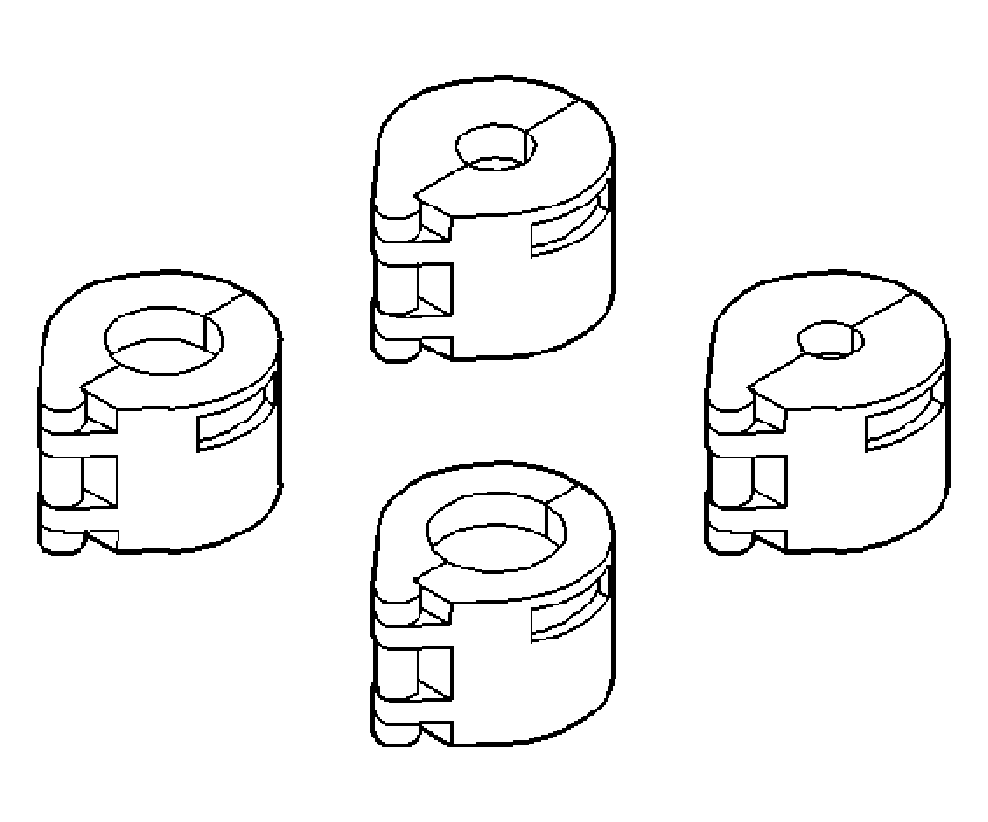

Fig 2: A/C Line Disconnect Tools 7193

Courtesy of DAIMLERCHRYSLER CORP.

A/C Line Disconnect Tools 7193 are required to service the A/C liquid and suction lines, A/C accumulator and the A/C evaporator.
