Section 302 (HVAC System (Service Information)): Distribution: Outlets-Air: Installation

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

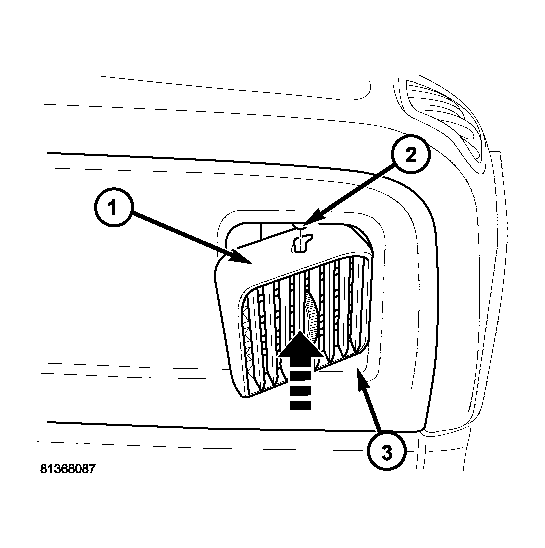

Fig 1: Outlet-Air Install 1

Courtesy of DAIMLERCHRYSLER CORP.

Install the air outlet (1) onto the pivot shaft (2) located at the bottom of the instrument panel air outlet housing (3).

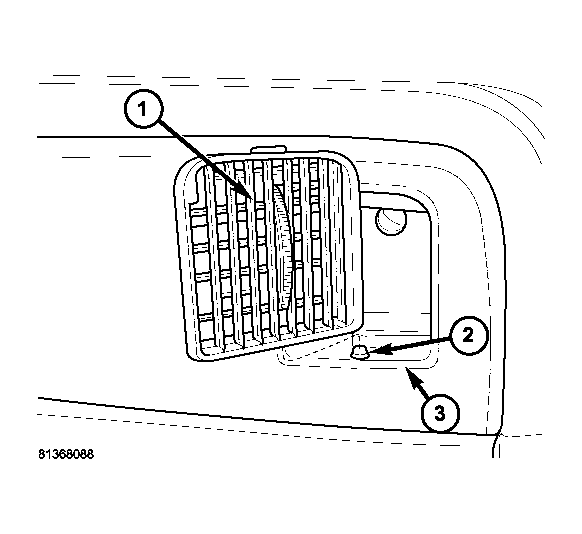

Fig 2: Outlet-Air Install 2
Courtesy of DAIMLERCHRYSLER CORP.
Gently push the top of the air outlet (1) onto the pivot shaft (2) at the top of the instrument panel air outlet housing (3) until it snaps into place.
