Section 302 (HVAC System (Service Information)): Distribution: Motor-Blower: Installation

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

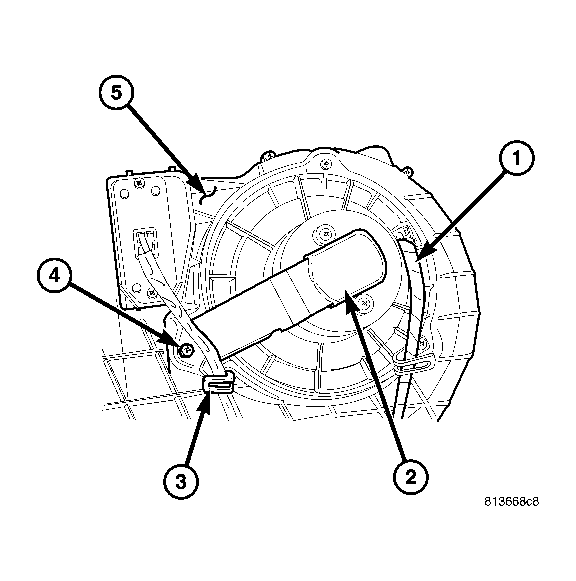

Fig 1: Motor-Blower R and I
GC0007423Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the blower motor (2) into the bottom of the HVAC housing (5).
  2. Install the three screws (4) that secure the blower motor to the HVAC housing. Tighten the screws to 2.2 N.m (20 in. lbs.).
  3. Connect the HVAC wire harness lead (1) to the blower motor and install the wire harness lead into the two wire harness retainers (3).
  4. Reconnect the negative battery cable.
