Duct-Floor Distribution: Installation

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

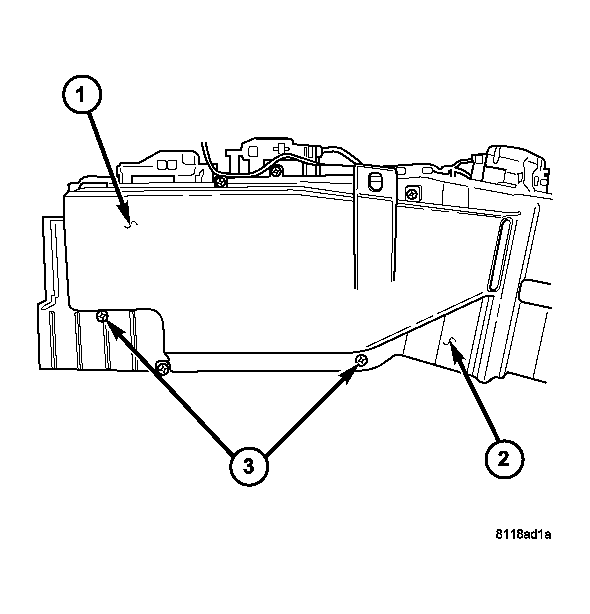

Fig 1: Floor Distribution Duct
GC0007401Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the floor distribution duct (1) onto the bottom of the HVAC housing (2).
  2. Install the screws (3) that secure the floor distribution duct to the HVAC housing. Tighten the screws to 2.2 N.m (20 in. lbs.).
  3. Install the HVAC housing (Refer to HEATING & AIR CONDITIONING/DISTRIBUTION/HOUSING-HVAC - INSTALLATION) .
