Engine Coolant Temperature Sensor - 2.4L: Installation

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

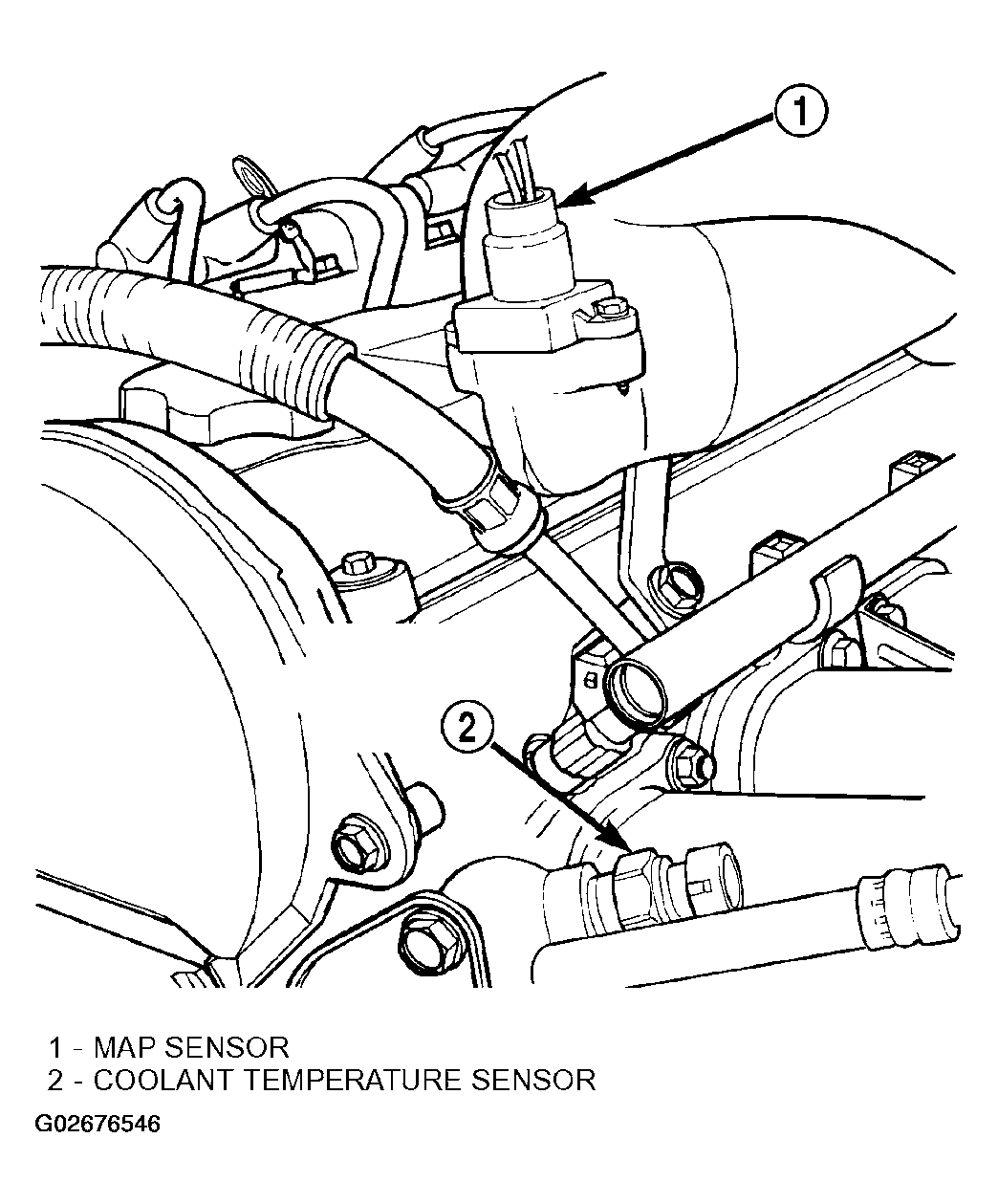

  1. Install coolant temperature sensor (Figure). Tighten sensor to 7 N-m (60 in. lbs.).
  2. Connect electrical connector to sensor.
  3. Fill cooling system. (Refer to STANDARD PROCEDURE ).
