Section 267 (Power Sliding Door System): Latch: Removal

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the appropriate side door trim panel. Refer to TRIM PANEL for the procedure.
  3. Remove the weather shield if necessary. Refer to SLIDING DOOR WEATHERSTRIP for the procedure.
  4. Open the side door all the way and remove the door latch retaining bolts (Fig 1 ).

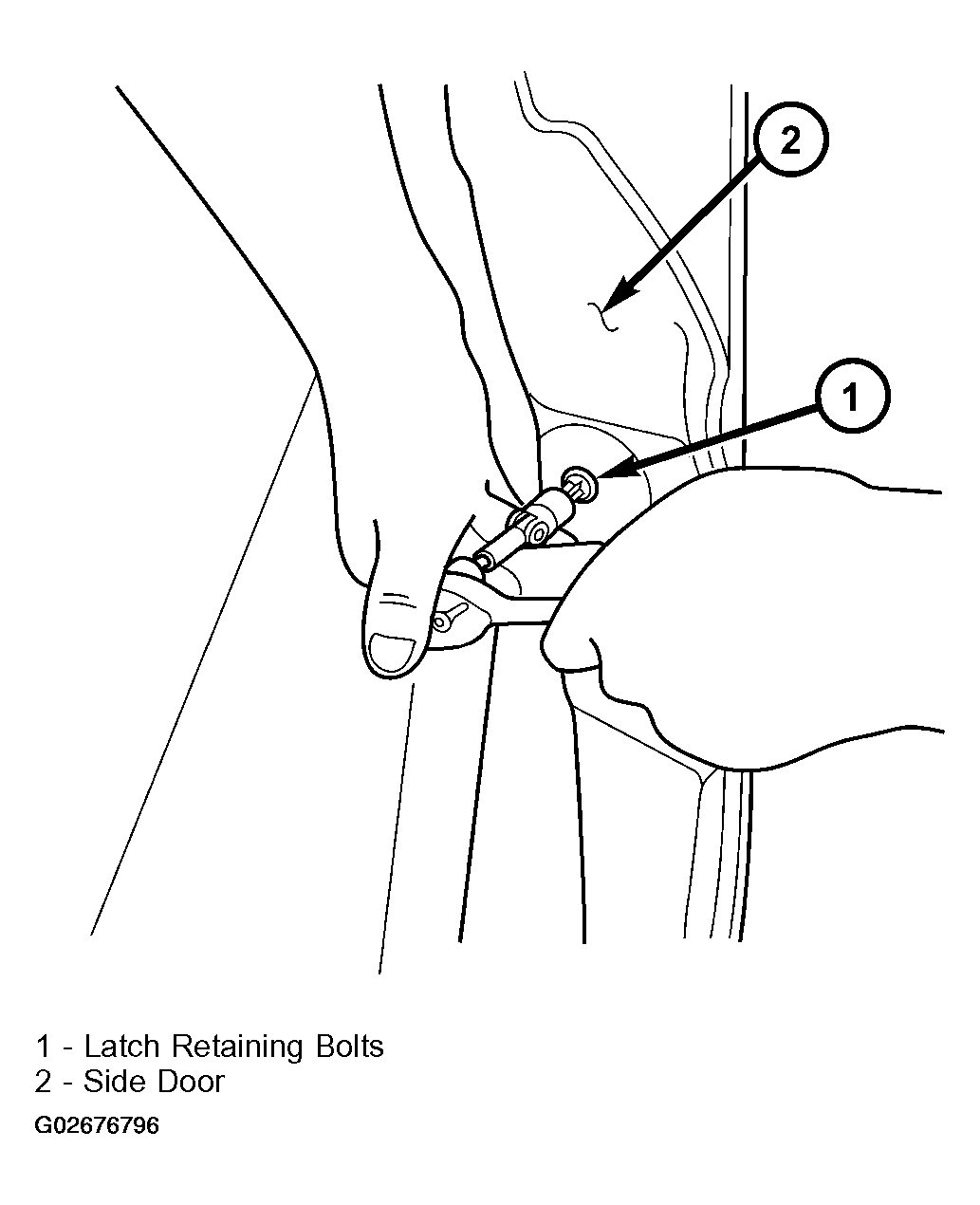

    Fig 1: Removing Latch Retaining Bolts
    G02676796Courtesy of DAIMLERCHRYSLER CORP.
  5. Partially close the door and pull the latch assembly out of the side door inner panel.
  6. Disconnect all electrical connectors leading to the latch assembly.
  7. Disconnect the inside and outside handle cables from the latch assembly. Refer to the LATCH/LOCK ASSEMBLY for the procedure.
  8. Disconnect the hold open latch cable from the latch assembly. Refer to HOLD OPEN LATCH article for the procedure.
  9. Disconnect lock actuator link rod from the latch assembly.
  10. Remove the latch assembly from the vehicle.
