Window Regulator - Power: Installation

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the regulator through the door panel opening and connect the electrical connector.
  2. Position the regulator bolts into the keyhole slots and slide into place.
  3. Install the forward bolt and tighten all three to 10 N.m (89 in. lbs.).
  4. Position the stabilizer, install the nuts and tighten to 10 N.m (89 in. lbs.).
  5. Raise the regulator to the position shown in (Figure ).

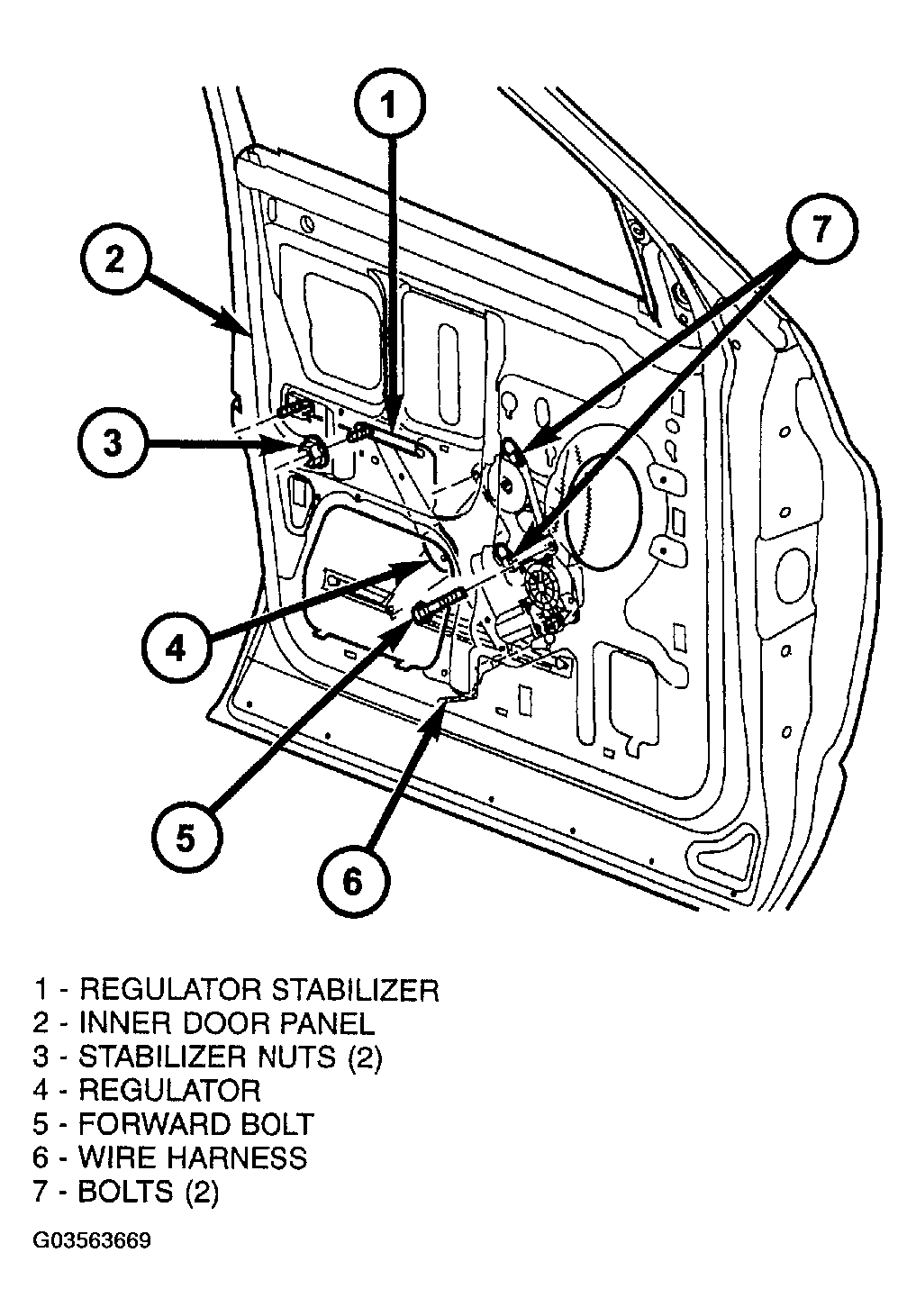

    Fig 1: Identifying Component Of Window Regulator - Power
    G03563669Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove the glass support and connect to the regulator lift plate.
  7. Install the glass nuts and tighten to 10 N.m (89 in. lbs.)
  8. Disconnect the window switch and install into the door trim panel.
  9. Install the waterdam. (Refer to INSTALLATION  )
