Section 148 (Doors - Front): Hinge: Installation

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Install the hinges and bolts.
Tighten bolts to 28 N.m (21 ft. lbs.)
Install the door, (Refer to INSTALLATION )

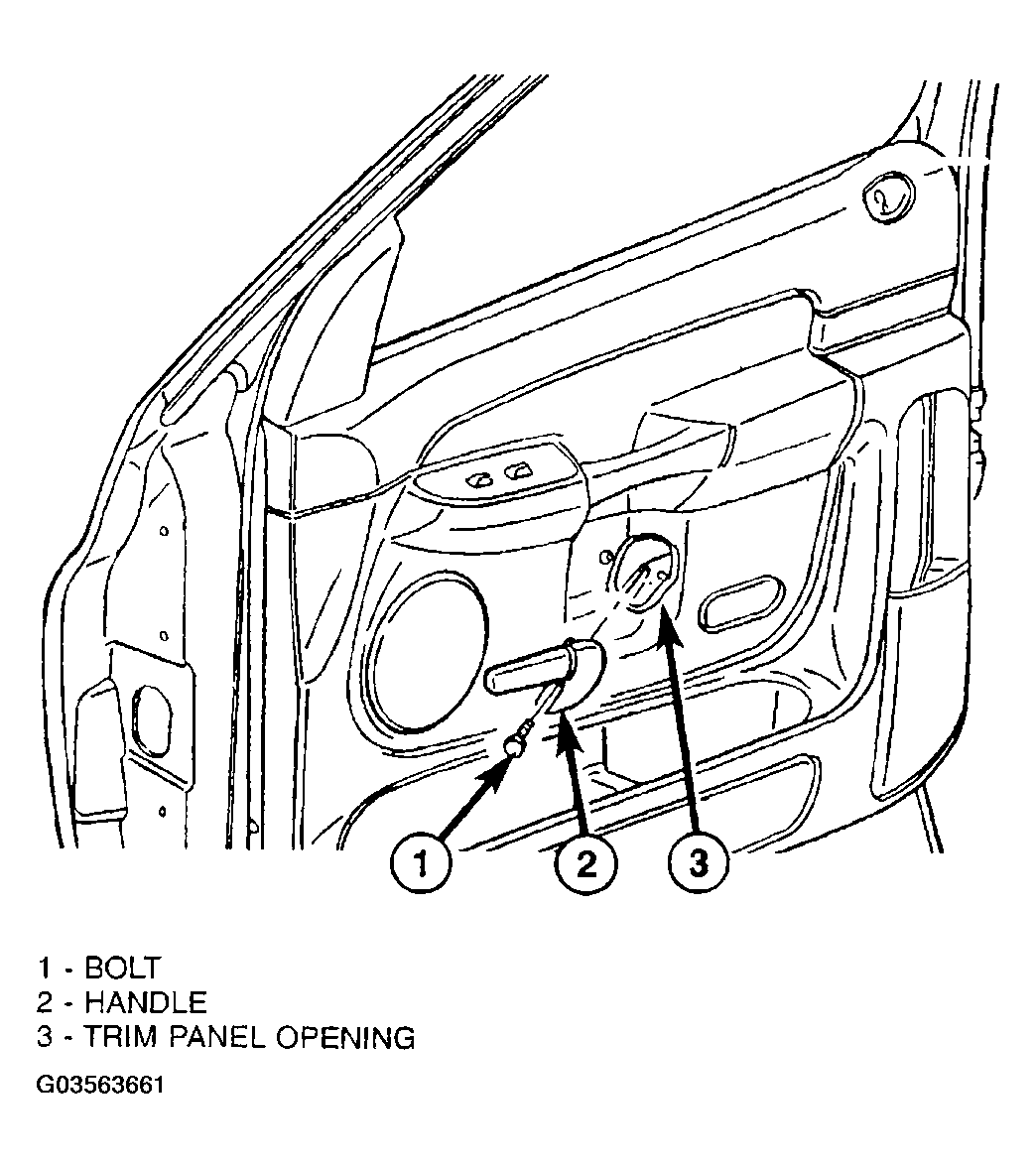

Fig 1: Identifying Inside Handle Actuator
Courtesy of DAIMLERCHRYSLER CORP.

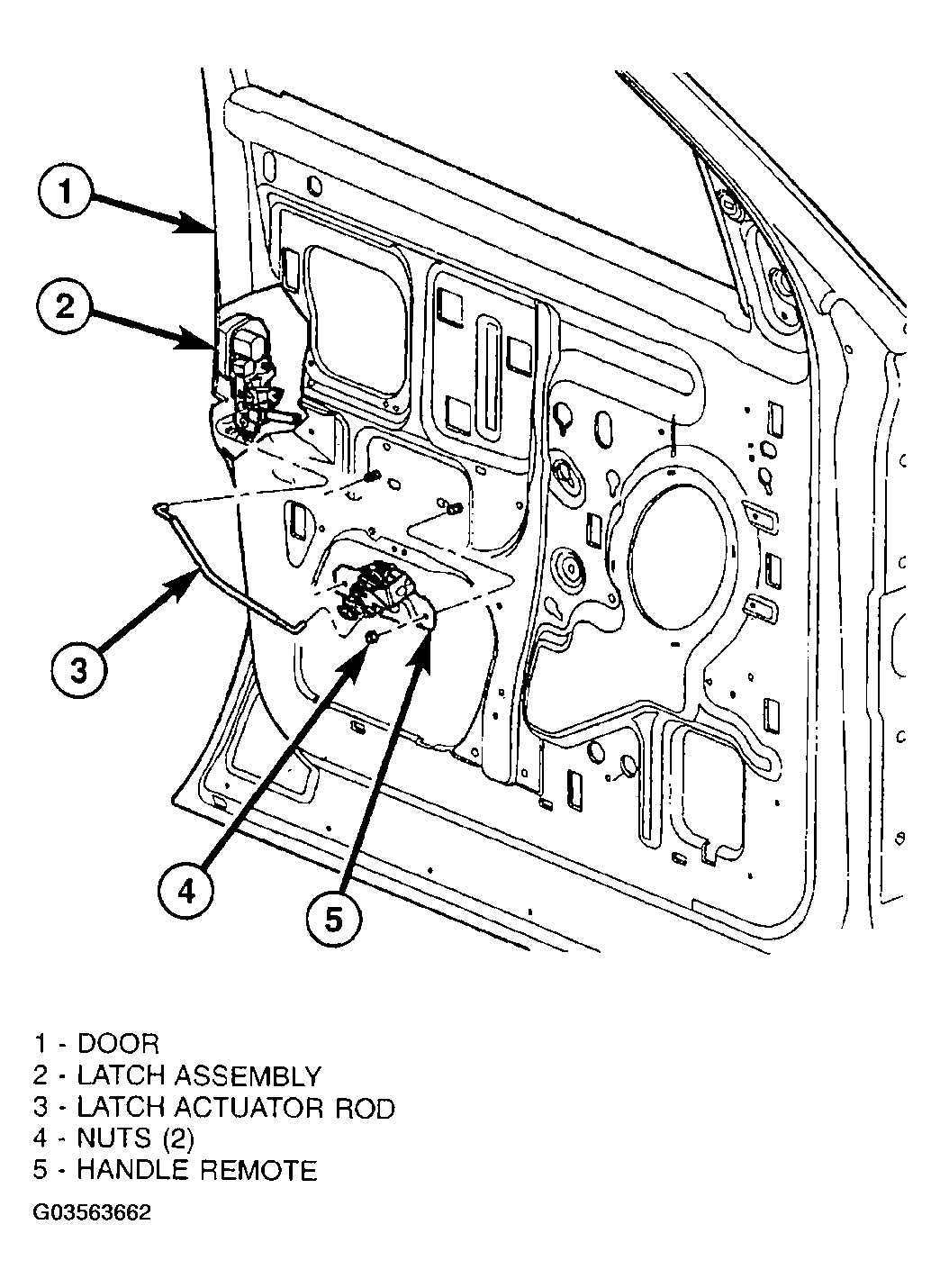

Fig 2: Identifying Remote Handle Actuator
Courtesy of DAIMLERCHRYSLER CORP.
