Home >> Chrysler >> 2005 >> 300 C, AWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0330 To P0481 >> Diagnosis And Testing >> P0335-Crankshaft Position Sensor Circuit >> Circuit Schematic

Circuit Schematic

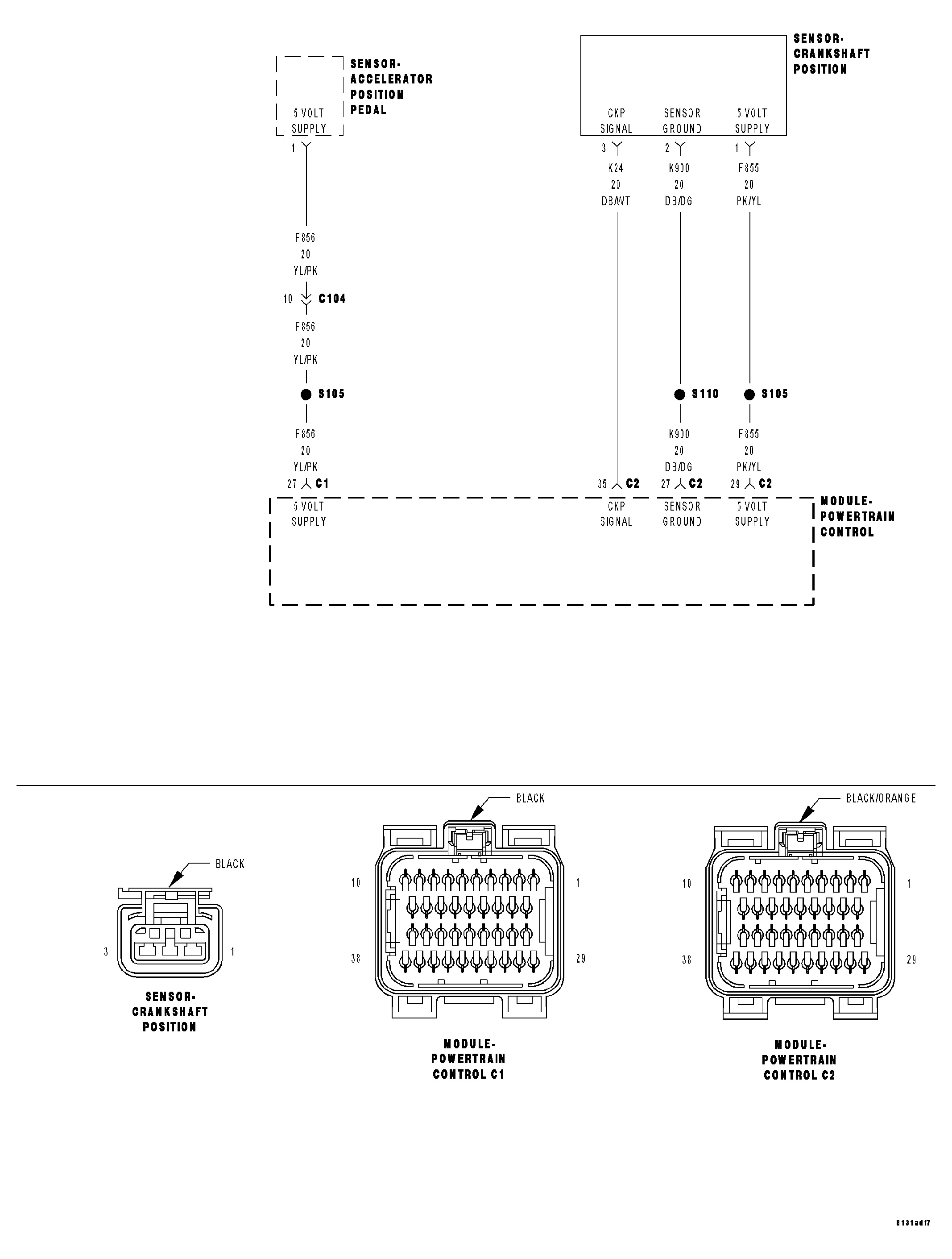

Fig 1: Crankshaft Position Sensor Circuit Schematic
GC0014937Courtesy of DAIMLERCHRYSLER CORP.

For the Engine circuit diagram (Refer to ENGINE - SCHEMATICS AND DIAGRAMS) .
