Steering System (Service Information): Pump: Pump: Description

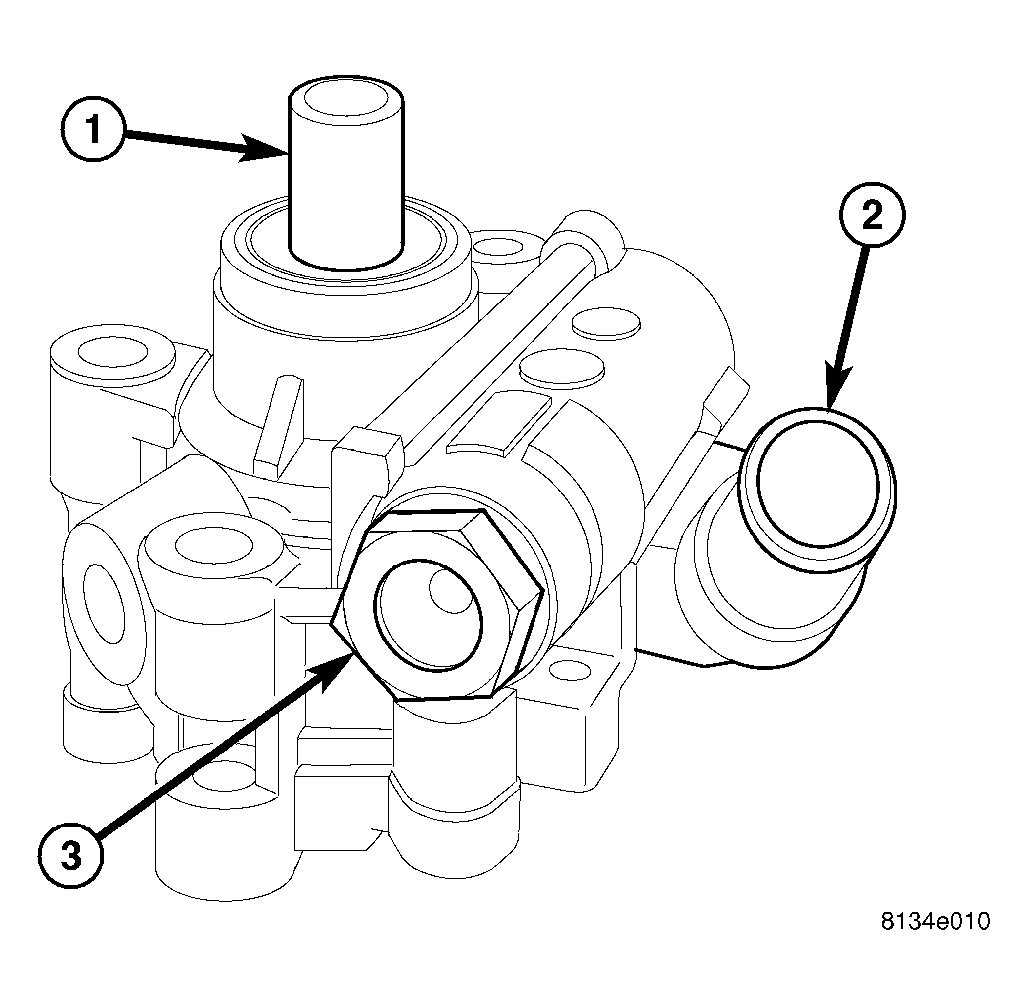

Fig 1: POWER STEERING PUMP

Courtesy of DAIMLERCHRYSLER CORP.

1 - SHAFT

2 - SUPPLY INLET

3 - PRESSURE OUTLET

Hydraulic pressure for operation of the power steering gear is provided by a belt-driven all-aluminum power steering pump. It is a droop flow rate and constant displacement type pump. A common power steering pump, mounted in a common location (left front of engine), is standard on all models.
