Column - Service Information: Shroud: Installation

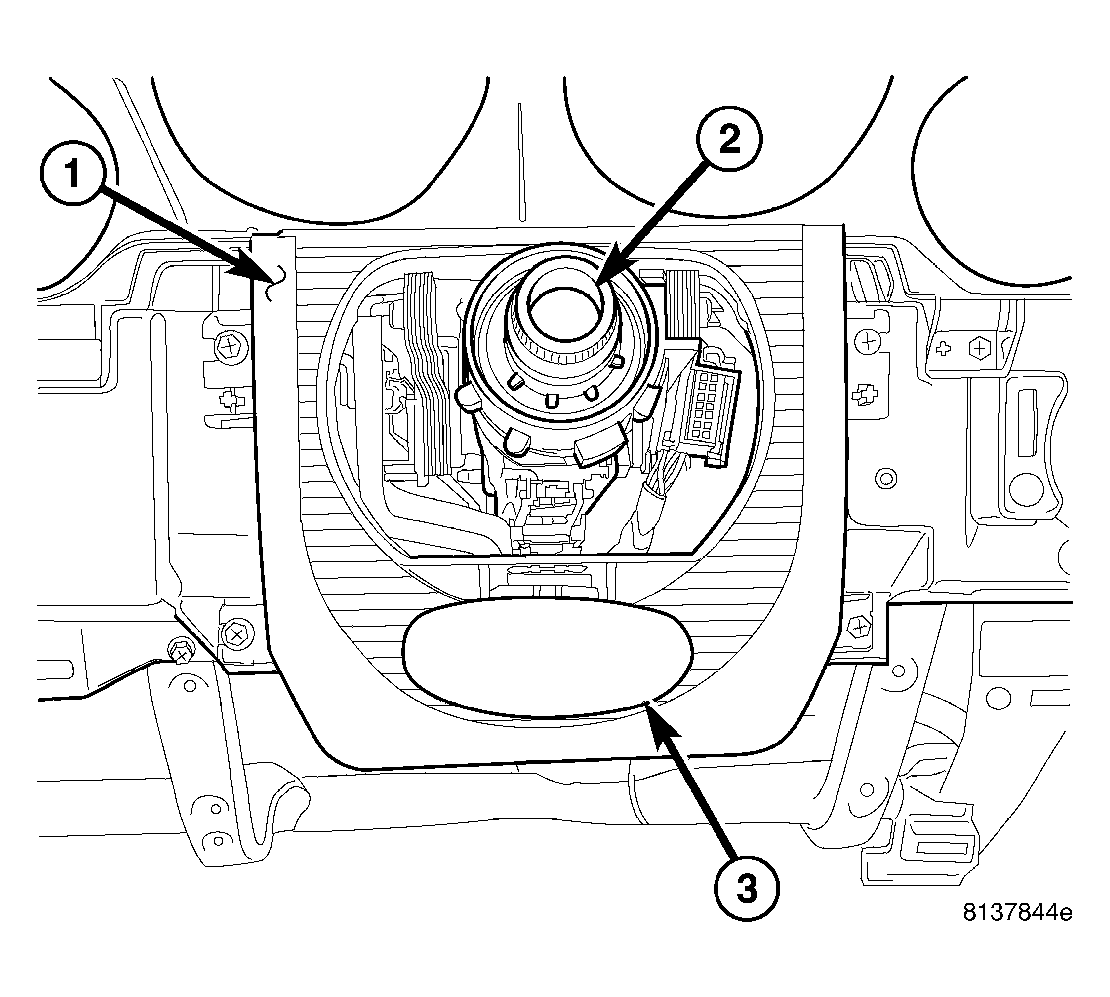

Fig 1: ROLL TOP SHROUD

Courtesy of DAIMLERCHRYSLER CORP.

1. Install the shroud (1) over the steering column (2).
   Fig 2: SHROUD SCREWS

   Courtesy of DAIMLERCHRYSLER CORP.
2. Install the four shroud screws (2).

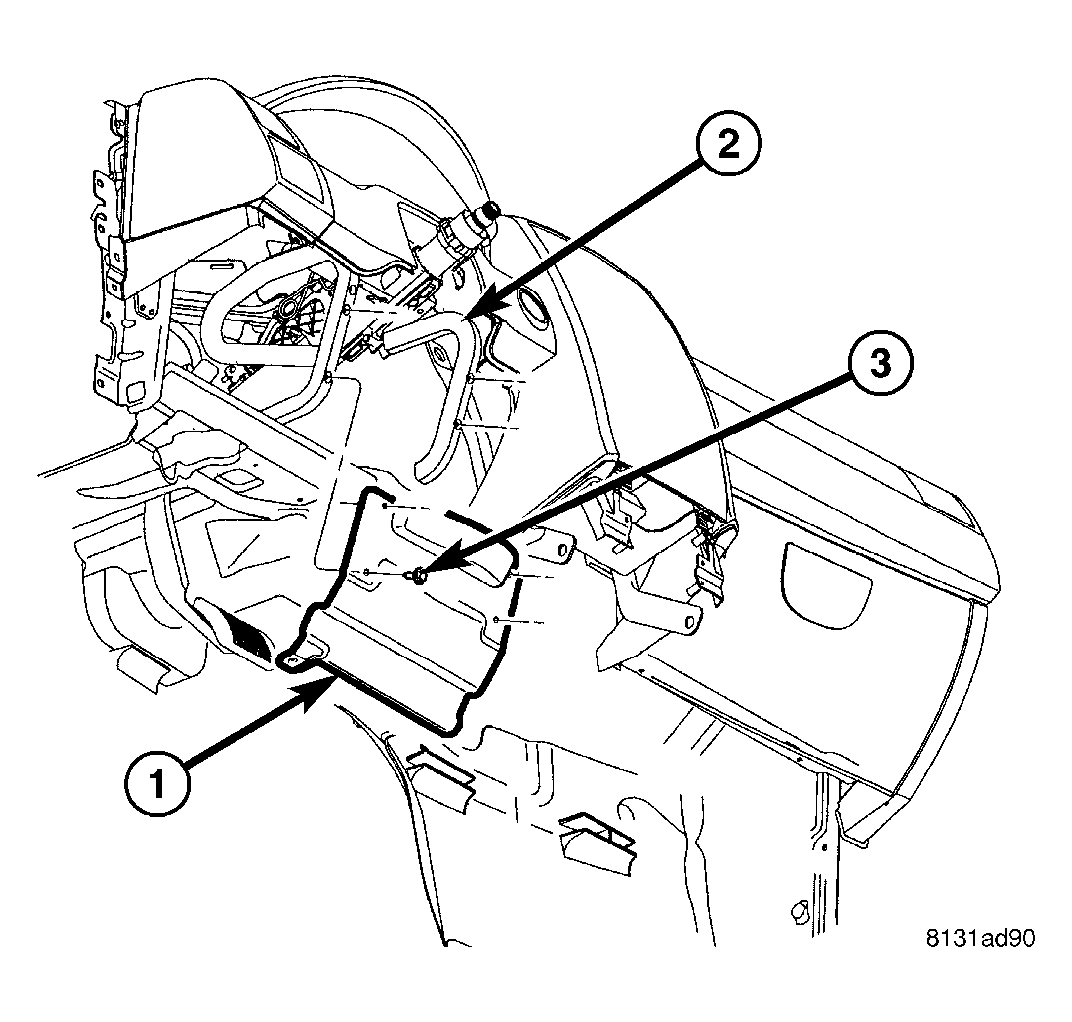

   Fig 3: REINFORCEMENT I/P STEERING COLUMN

   Courtesy of DAIMLERCHRYSLER CORP.
3. Install the steering column opening reinforcement (1).

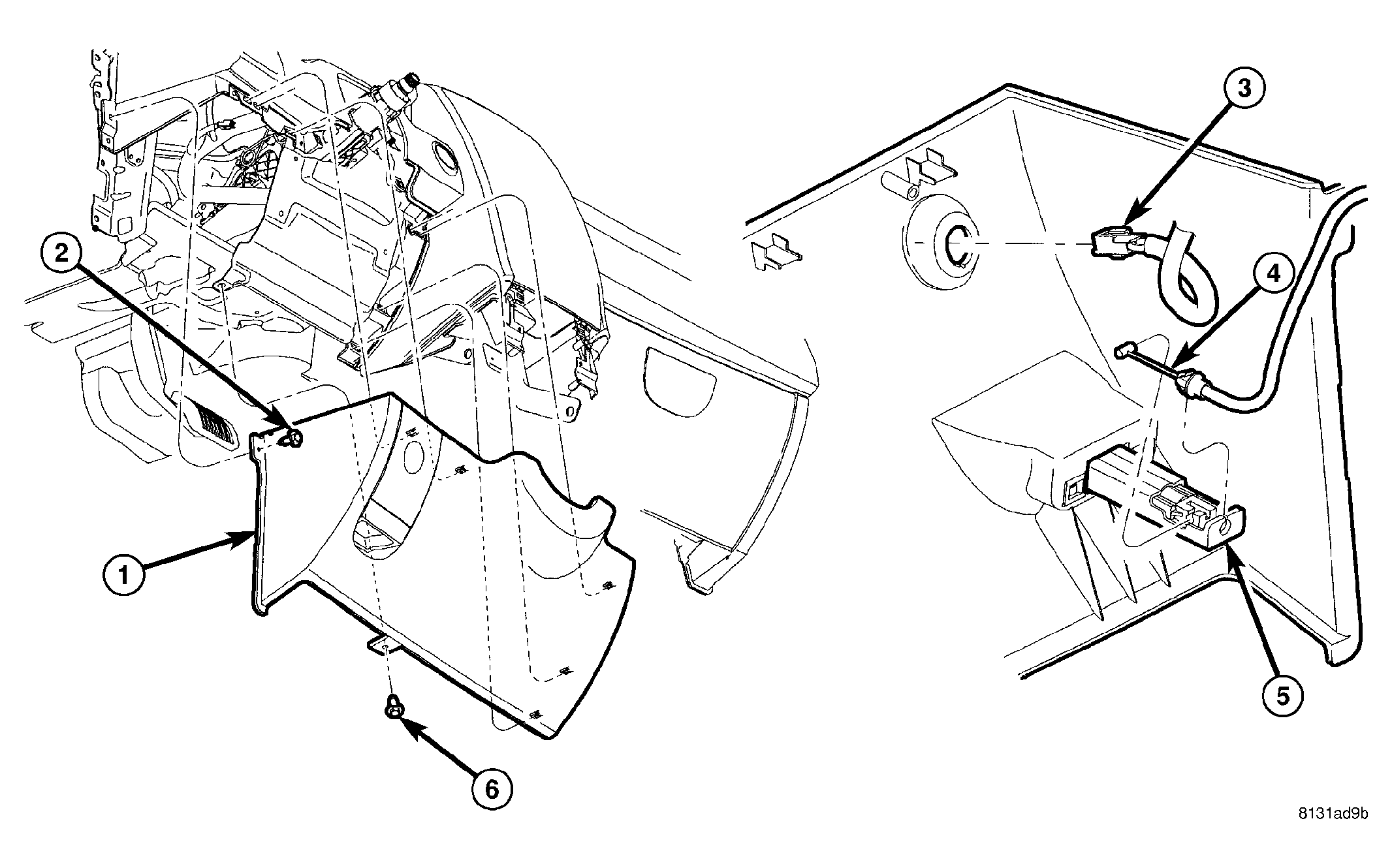

   Fig 4: STEERING COLUMN COVER

   Courtesy of DAIMLERCHRYSLER CORP.
4. Install the steering column opening cover (1).

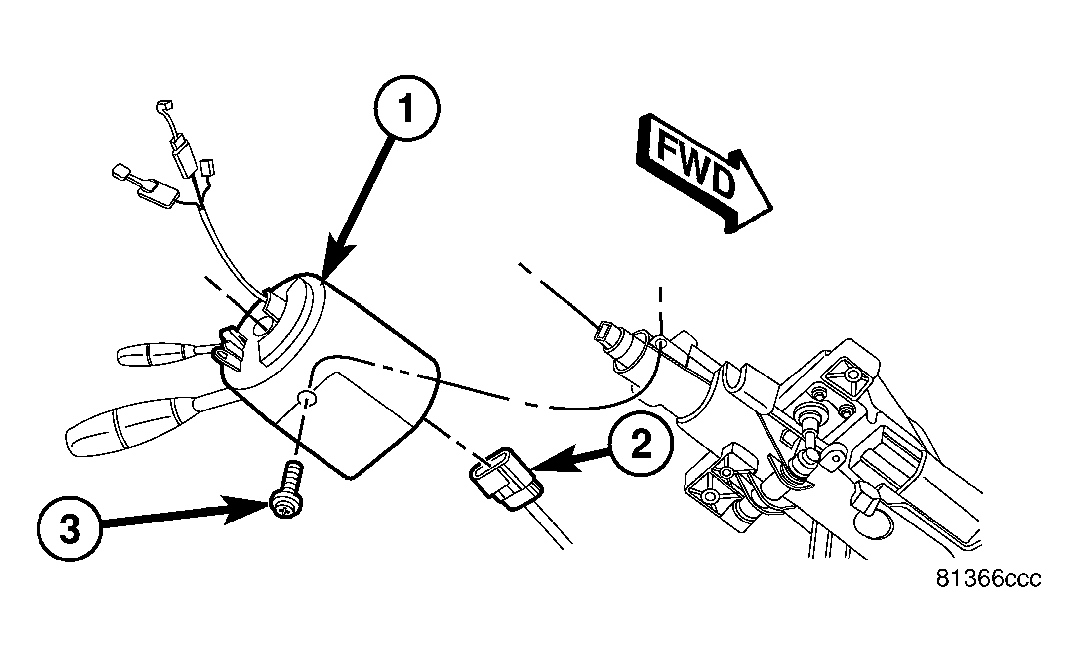

   Fig 5: SCCM R/I

   Courtesy of DAIMLERCHRYSLER CORP.
5. Install the SCCM (1) onto the steering column.
   Fig 6: SCCM SCREW

   Courtesy of DAIMLERCHRYSLER CORP.
6. Tighten the set screw (1) securing the SCCM (2).
   Fig 7: CLOCKSPRING SCREWS

   Courtesy of DAIMLERCHRYSLER CORP.
7. Tighten clockspring screws (1) that were backed out to keep the clockspring from unwinding. (Refer to RESTRAINTS - SERVICE INFORMATION ).

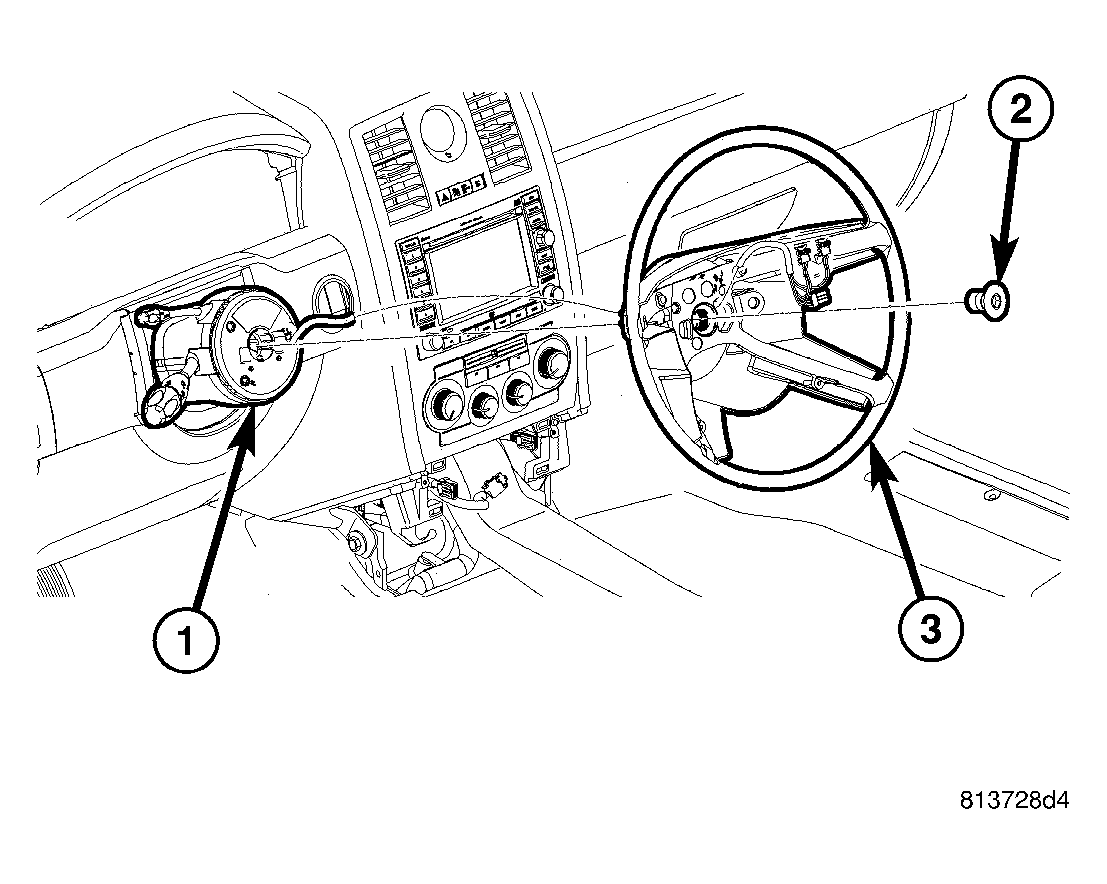

   Fig 8: STEERING WHEEL

   Courtesy of DAIMLERCHRYSLER CORP.
8. Align the spline on the steering wheel hub to the column shaft, then install the steering wheel (3).
9. Install a NEW  retainer bolt (2). Tighten the bolt to 70 N.m (52 ft. lbs.).

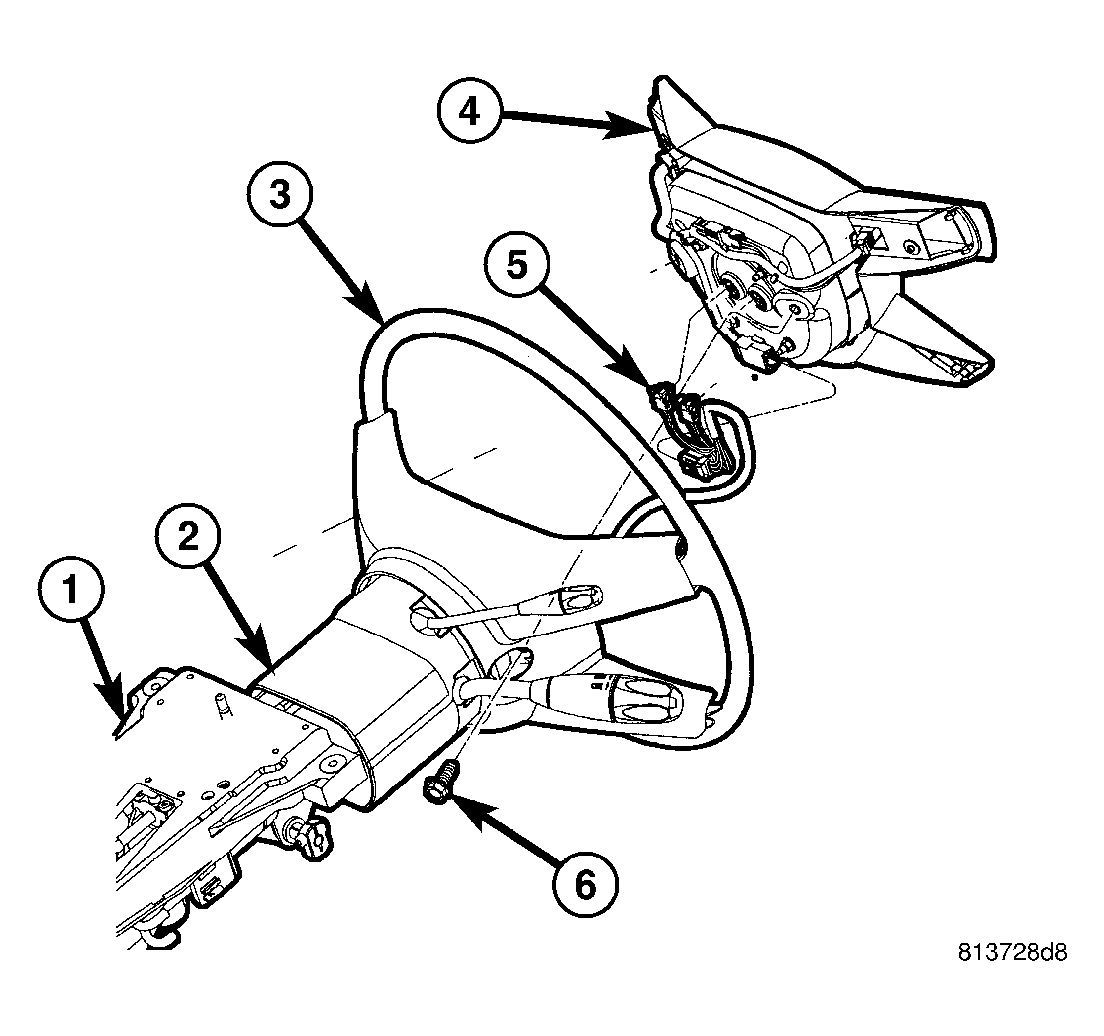

   Fig 9: AIR BAG

   Courtesy of DAIMLERCHRYSLER CORP.
10. Install the driver airbag (4) (Refer to ELECTRICAL/RESTRAINTS/DRIVER AIRBAG - INSTALLATION) .
11. Install the negative battery terminal on the battery. It is important that this is performed properly (including calibration of steering angle sensor if equipped with ESP). (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE)
12. Test the operation of the horn, lights and any other functions that are steering column operated.
