Lever-Electronic Telescoping: Installation

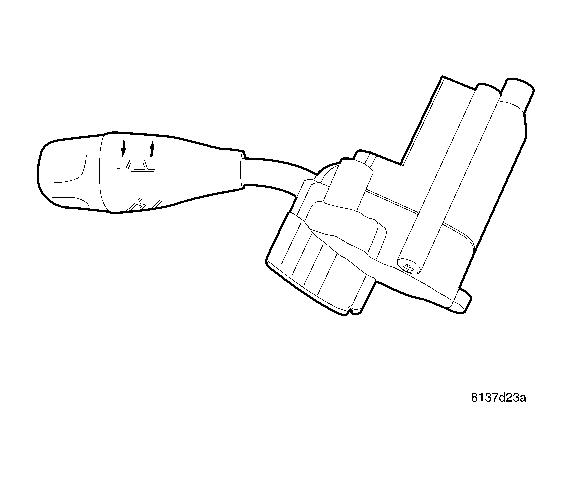

Fig 1: LEVER

Courtesy of DAIMLERCHRYSLER CORP.

1. Install the telescoping lever to the SCCM.
   Fig 2: TELESCOPIC LEVER

   Courtesy of DAIMLERCHRYSLER CORP.
2. Install the screws (4) fastening the telescoping steering lever to the SCCM (5).

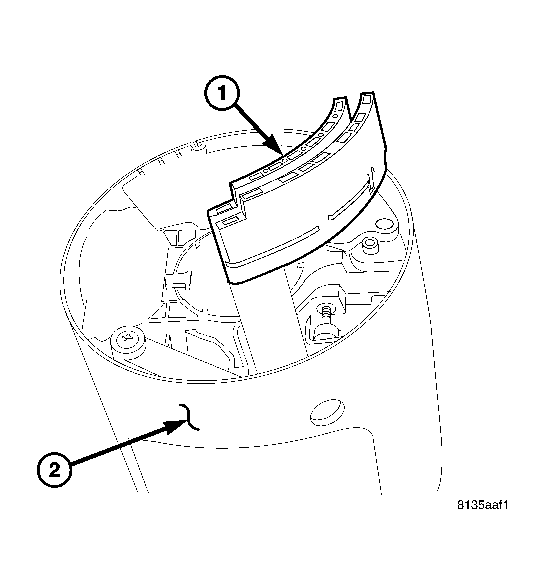

   Fig 3: STEERING ANGLE SENSOR

   Courtesy of DAIMLERCHRYSLER CORP.
3. If equipped with ESP  , install the steering angle sensor (1) to the SCCM (2).

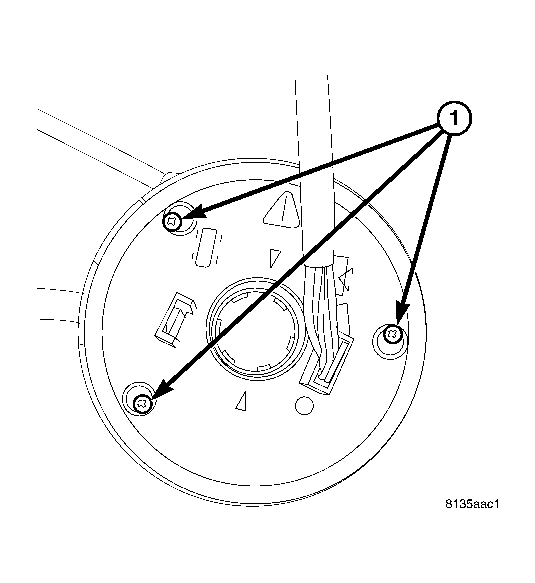

   Fig 4: CLOCKSPRING SCREWS

   Courtesy of DAIMLERCHRYSLER CORP.
4. Install the clockspring screws (1). (Refer to RESTRAINTS - SERVICE INFORMATION ).

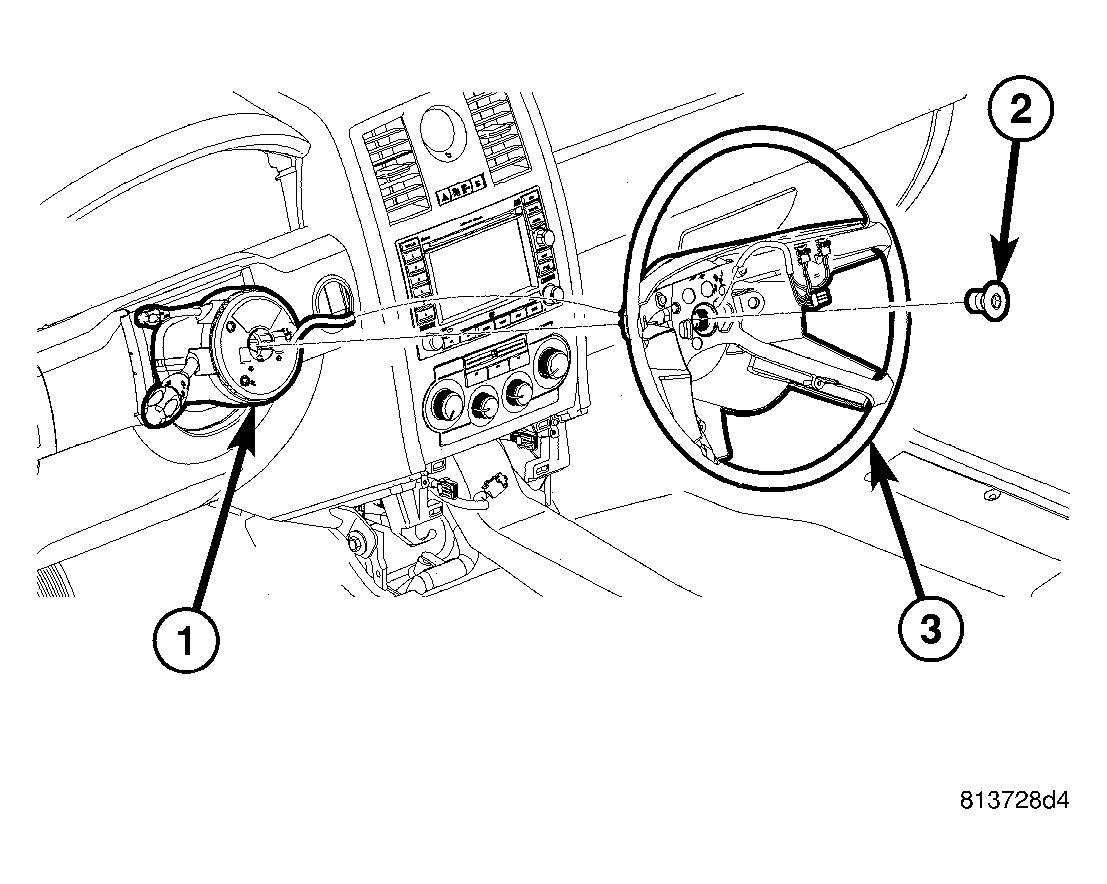

   Fig 5: STEERING WHEEL

   Courtesy of DAIMLERCHRYSLER CORP.
5. Align the spline on the steering wheel hub to shaft.
6. Then install the steering wheel (3) and install a NEW  retainer bolt (2). Tighten the bolt to 70 N.m (52 ft. lbs.).

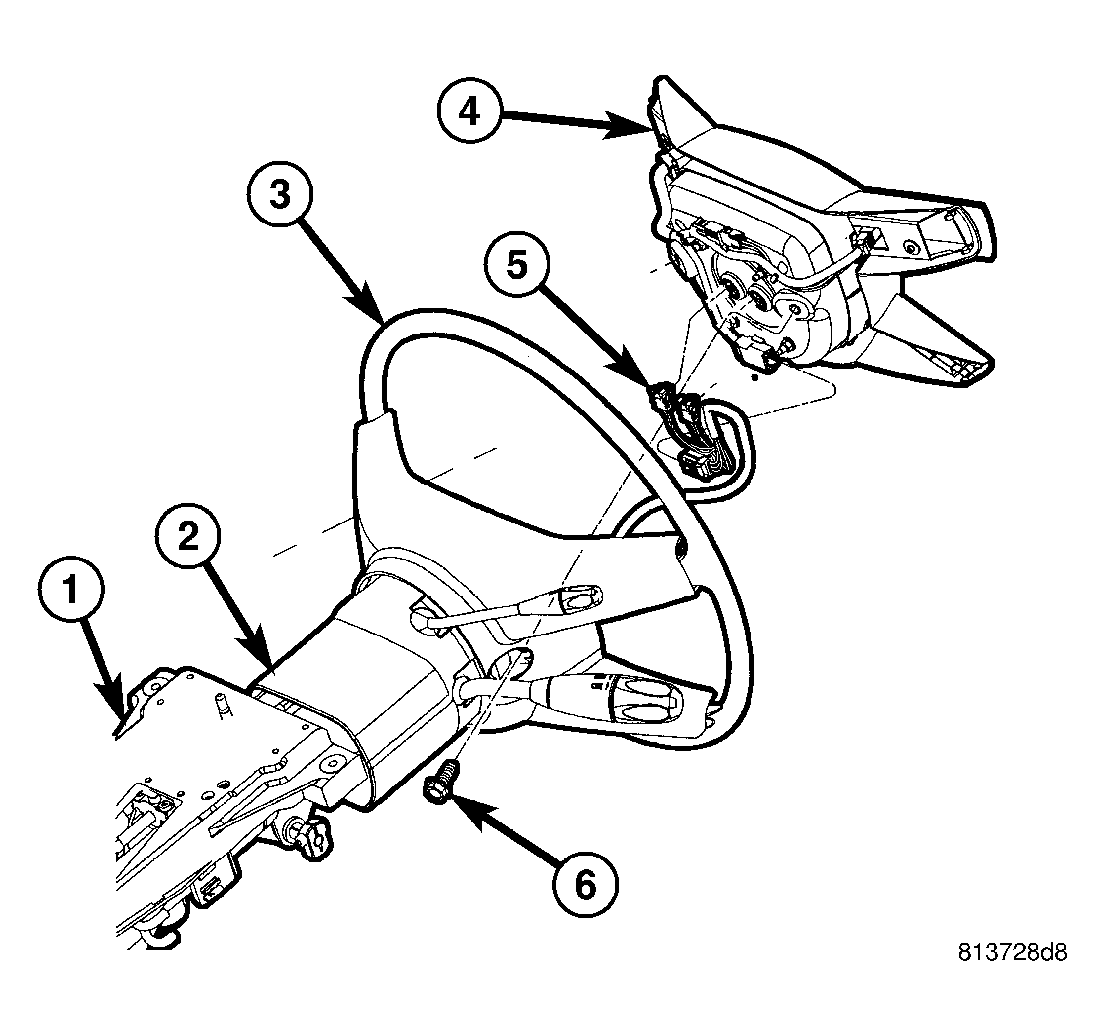

   Fig 6: AIR BAG

   Courtesy of DAIMLERCHRYSLER CORP.
7. Install the airbag (4). (Refer to ELECTRICAL/RESTRAINTS/DRIVER AIRBAG - REMOVAL) .
8. Install the negative battery terminal on the battery. It is important that this is performed properly (including calibration of steering angle sensor if equipped with ESP). (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE)
9. Test the operation of the horn, lights and any other functions that are steering column operated.
