Steering System (Service Information): Pump: Pulley: Installation

Fig 1: INSTALLING SPACER 6936 ON PULLEY

Courtesy of DAIMLERCHRYSLER CORP.

CAUTION: Do not hammer on power steering pump pulley (2) or pump shaft to install pulley. This action will damage pulley and power steering pump.

1. Place power steering pump pulley (2) squarely on end of power steering pump shaft.
2. Place Installation Spacer (1), Special Tool 6936, on top of power steering pump pulley (2).

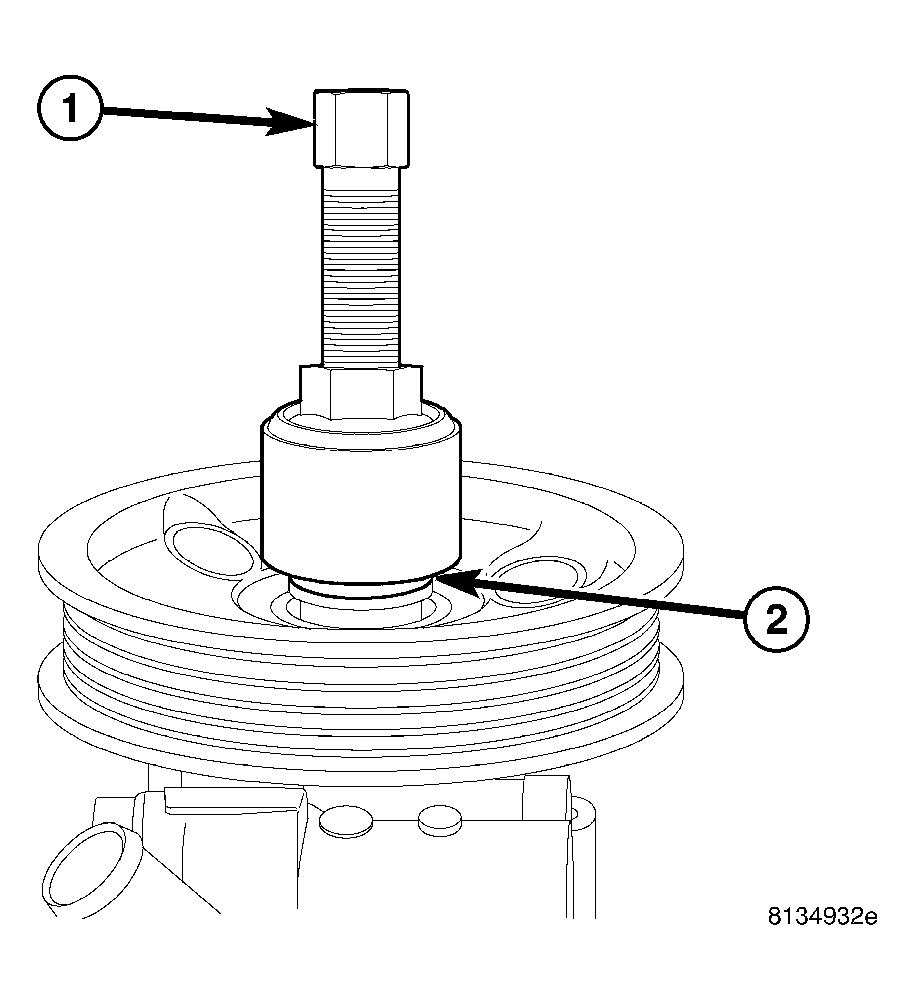

   Fig 2: INSTALLING PULLEY USING C-4063B

   Courtesy of DAIMLERCHRYSLER CORP.
3. Mount Installer (1), Special Tool C-4063, in internal threads of power steering pump shaft and against Spacer (2) on power steering pump pulley.
4. Ensuring that special tools and pulley remain aligned with pump shaft, force pulley onto power steering pump shaft using Installer (1) until Spacer (2) is against end of power steering pump shaft. When Spacer (2) is against shaft of power steering pump, Installer (1) will no longer be able to be turned.
5. Remove special tools from power steering pump.
6. Install power steering pump on engine. (Refer to STEERING/PUMP - INSTALLATION) .
