U0020-Can B Bus Off Performance: Notes

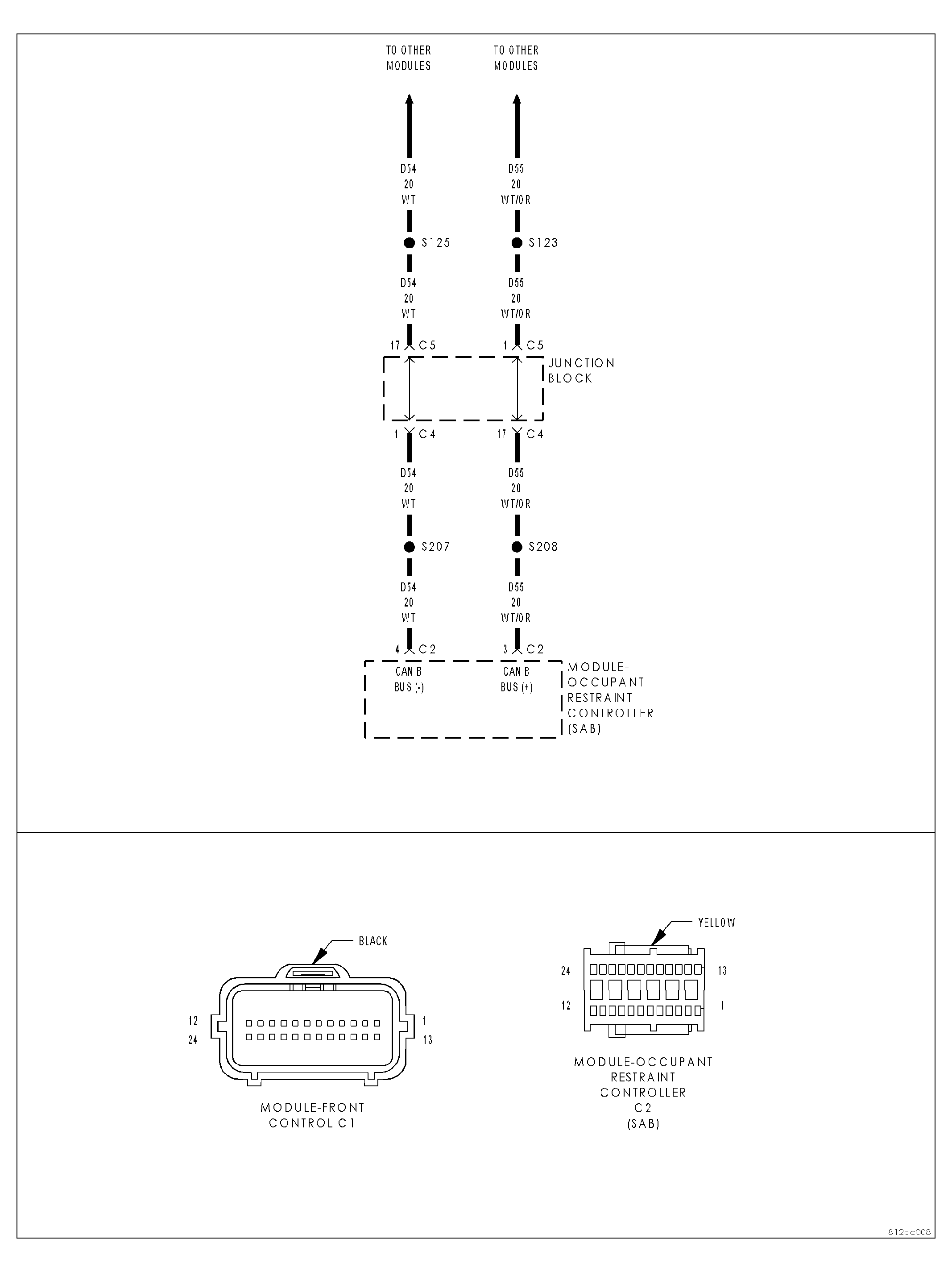

Fig 1: MS-CAN B D54 AND D55
GC0009944Courtesy of DAIMLERCHRYSLER CORP.

For the Air Bag System circuit diagram (Refer to ELECTRICAL/RESTRAINTS - SCHEMATICS AND DIAGRAMS) .
