Air Intake System: Installation

WARNING: This page is about a different variant/trim than selected.

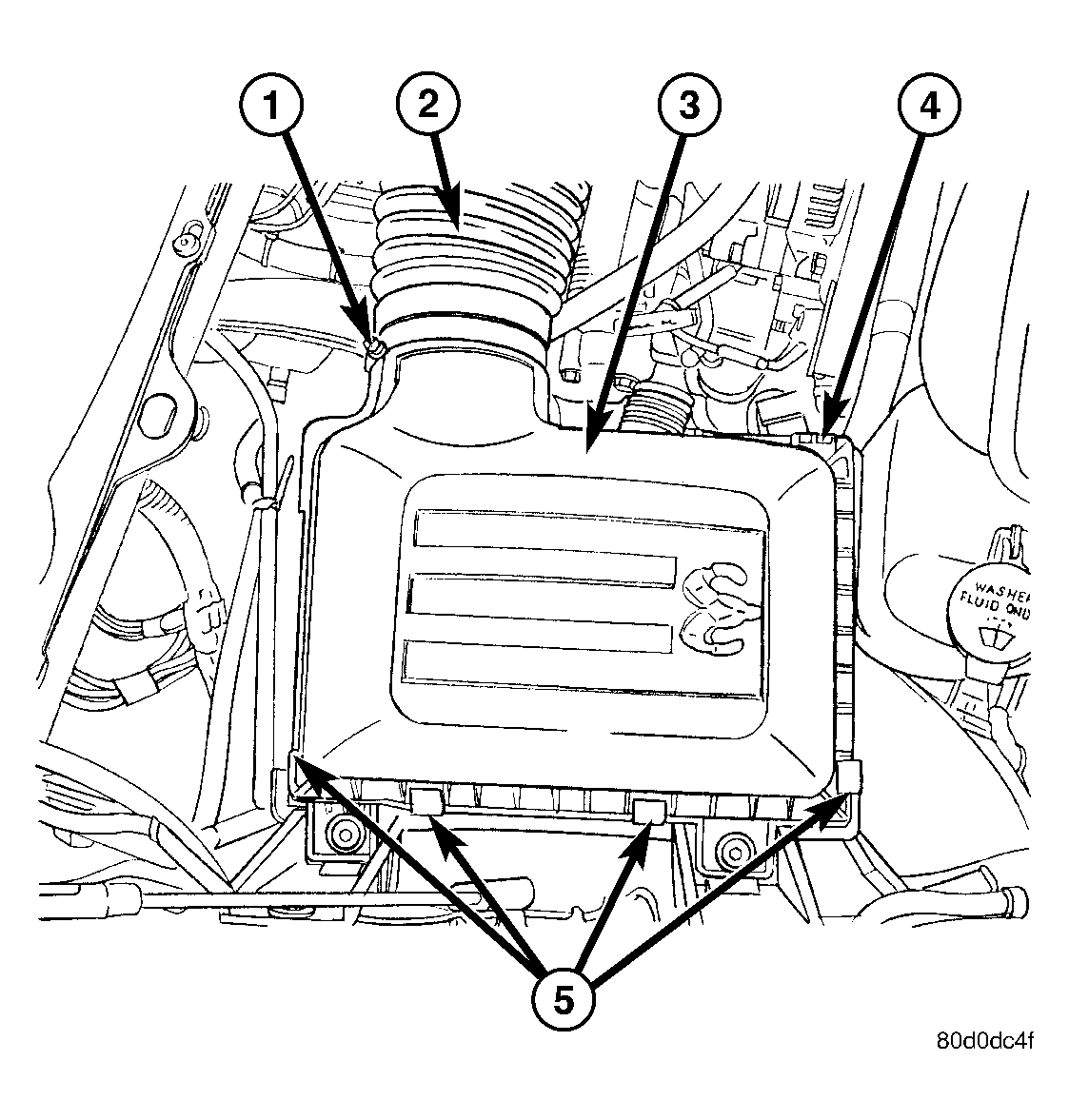

Fig 1: AIR CLEANER COVER

Courtesy of DAIMLERCHRYSLER CORP.

1 - CLAMP

2 - AIR DUCT

3 - AIR CLEANER COVER

4 - LOCATING TABS

5 - CLIPS (4)

Install filter element into housing.
Position housing cover into housing locating tabs (4).
Pry up 4 spring clips(5) and lock cover to housing.
Install air duct to air cleaner cover and tighten hose clamp to 3 N.m (30 in. lbs.) torque.
If any other hose clamps were removed from air intake system, tighten them to 3.4 N.m (30 in. lbs.) torque.
If any bolts were removed from air resonator housing or air intake tubing, tighten them to 4.5 N.m (40 in. lbs.) torque.

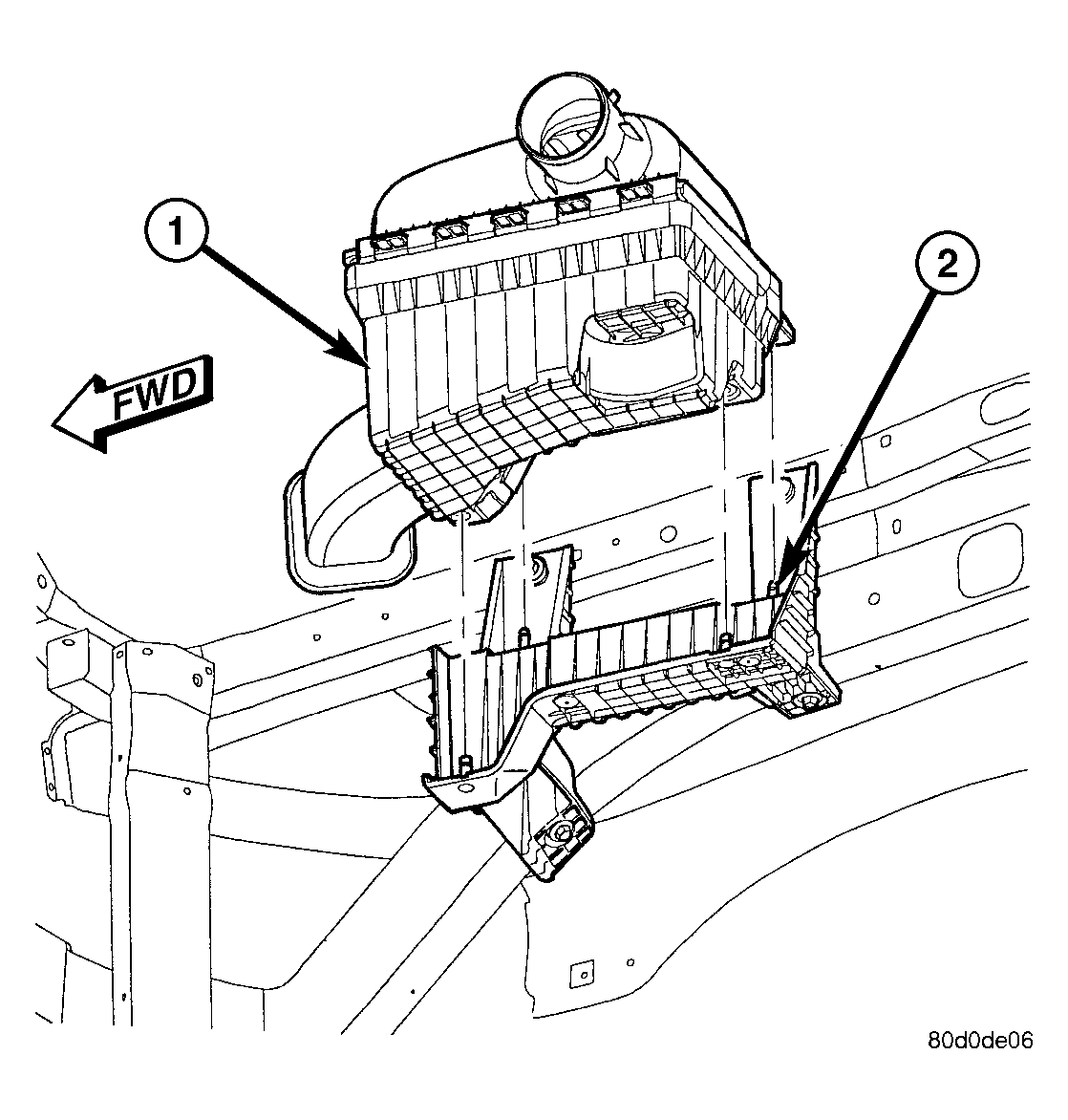

Fig 2: AIR CLEANER HOUSING
Courtesy of DAIMLERCHRYSLER CORP.

1 - AIR CLEANER HOUSING ASSEMBLY

2 - LOCATING PINS (4)
Install filter housing (1) into locating pins (2).
