Mount Left - AWD: Removal

WARNING: This page is about a different variant/trim than selected.

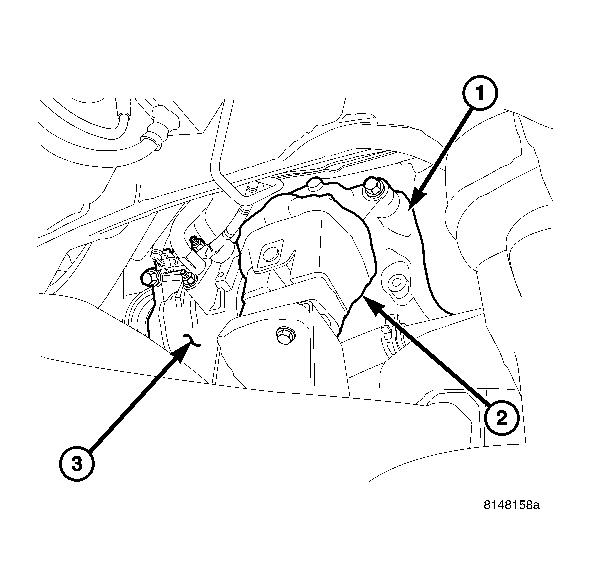

Fig 1: LEFT ENGINE MOUNT - AWD
GC0015429Courtesy of DAIMLERCHRYSLER CORP.
1 - ENGINE MOUNT BRACKET
2 - LEFT ENGINE MOUNT
3 - AIR CONDITIONING COMPRESSOR
  1. Disconnect the negative battery cable.
  2. Raise and support the vehicle.
  3. Remove the left front wheel.
  4. Remove the left engine mount to cradle fastener.
  5. Place a jack stand under the engine and support the engine weight.
  6. Remove the engine mount fasteners and remove the mount. See Fig 1.
