Mount - Rear: Installation

WARNING: This page is about a different variant/trim than selected.

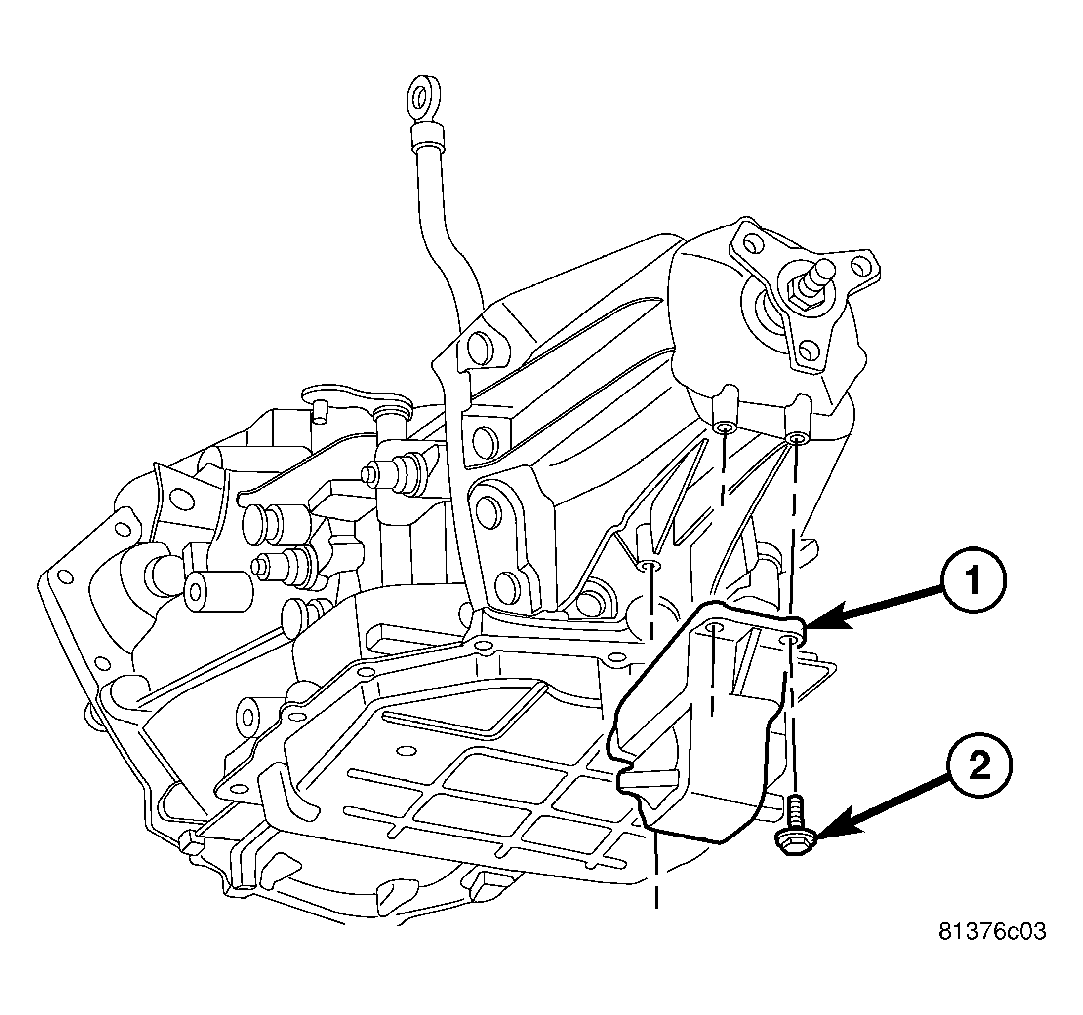

Fig 1: Remove Trans Mount Bolts
GC0015436Courtesy of DAIMLERCHRYSLER CORP.
  1. Install mount to transmission bolts (2) and tighten to 47 N.m (35 ft.lbs.).

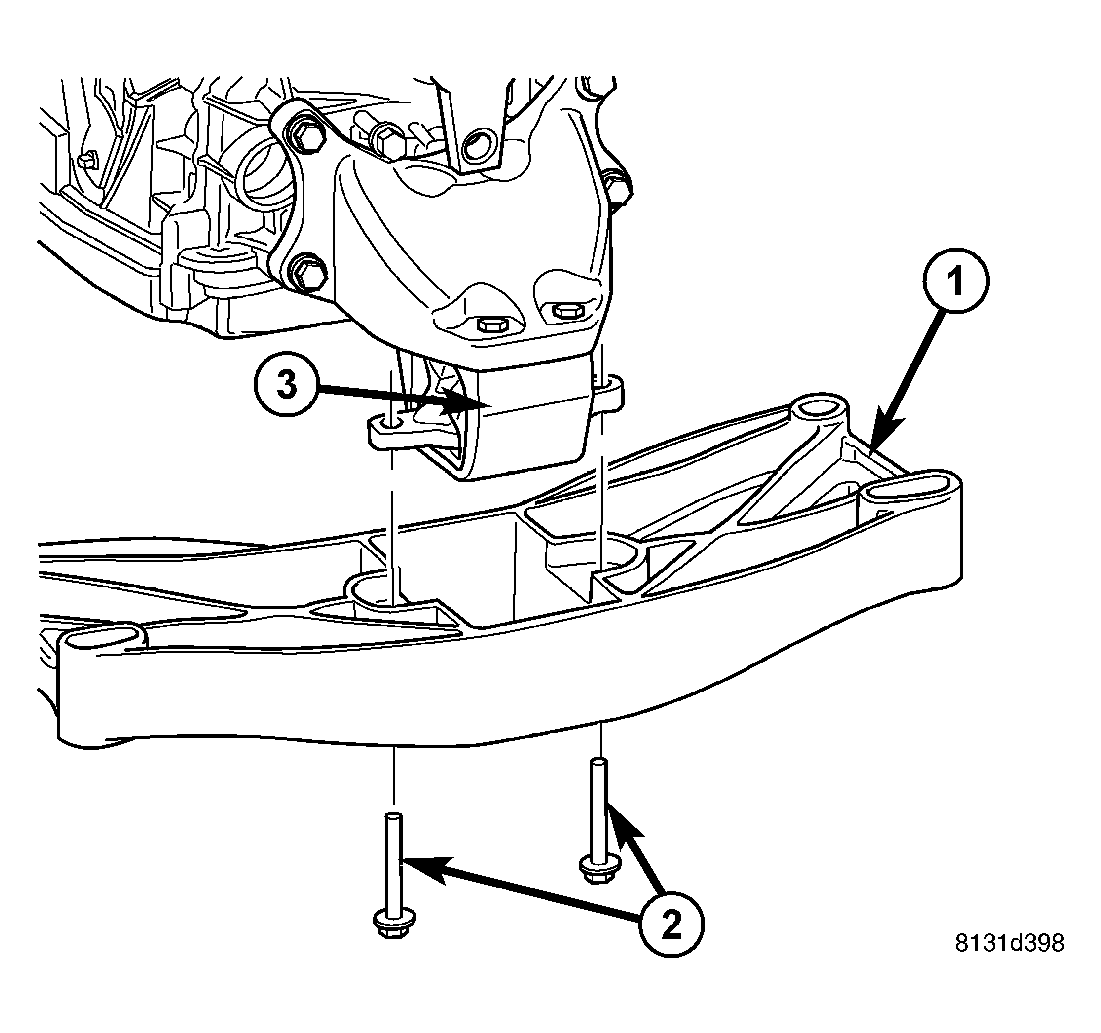

    Fig 2: REMOVE TRANS CROSS MEMBER BOLTS
    GC0015435Courtesy of DAIMLERCHRYSLER CORP.
  2. Install cross member (1) and attaching bolts. Tighten bolts to 68 N.m (50 ft.lbs.).
  3. Lower transmission so cross member to mount bolts (2) can be started tightened by hand.
  4. Lower transmission and remove jack.
  5. Tighten mount bolts (2) to 47 N.m (39 ft.lbs.).
