Track Bar: Removal

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the axle.
  2. Remove the track bar bolts and nuts. (Fig 1).

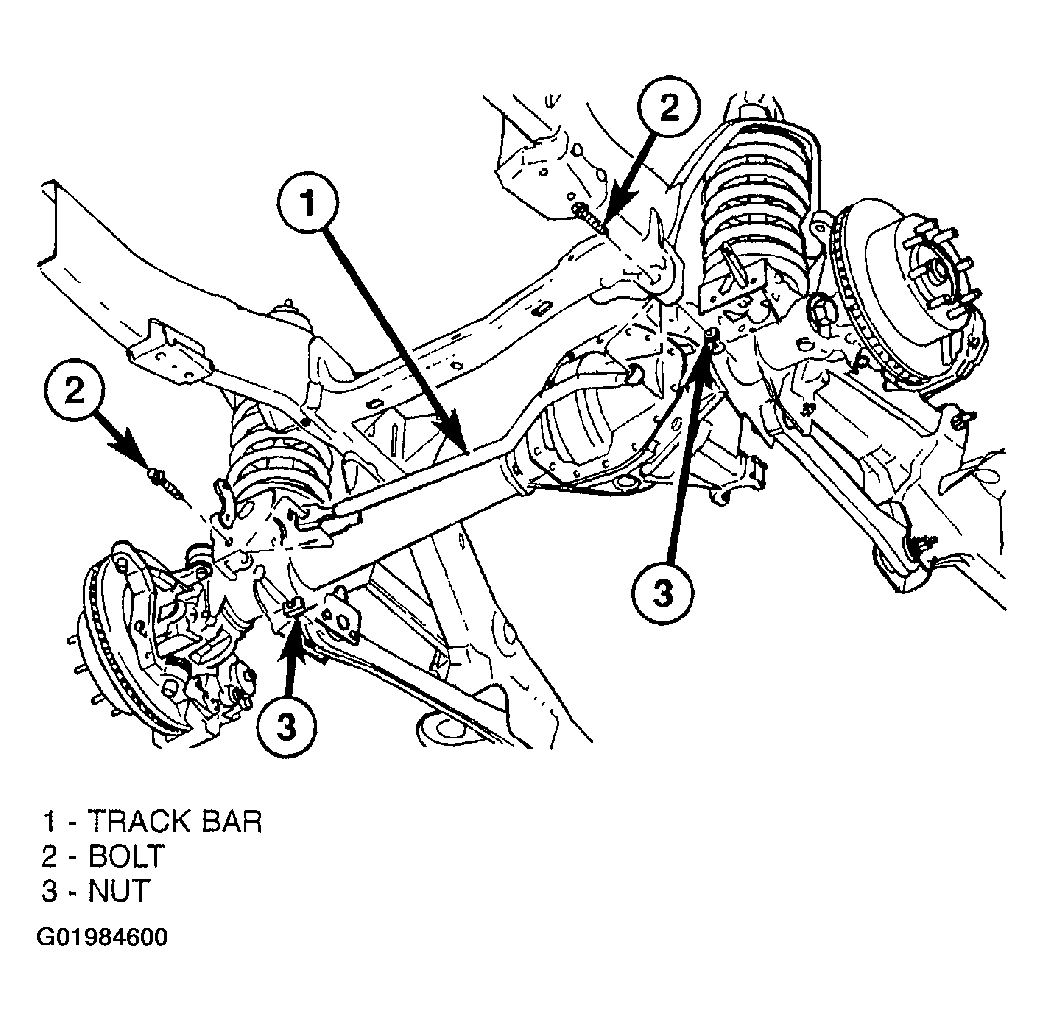

    Fig 1: Removing/Installing Track Bar
    G01984600Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the track bar. (Fig 1).
