Power Steering System

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

There is some noise in all power steering systems. One of the most common is a hissing sound evident at a standstill parking. Or when the steering wheel is at the end of it's travel. Hiss is a high frequency noise similar to that of a water tap being closed slowly. The noise is present in all valves that have a high velocity fluid passing through an orifice. There is no relationship between this noise and steering performance.

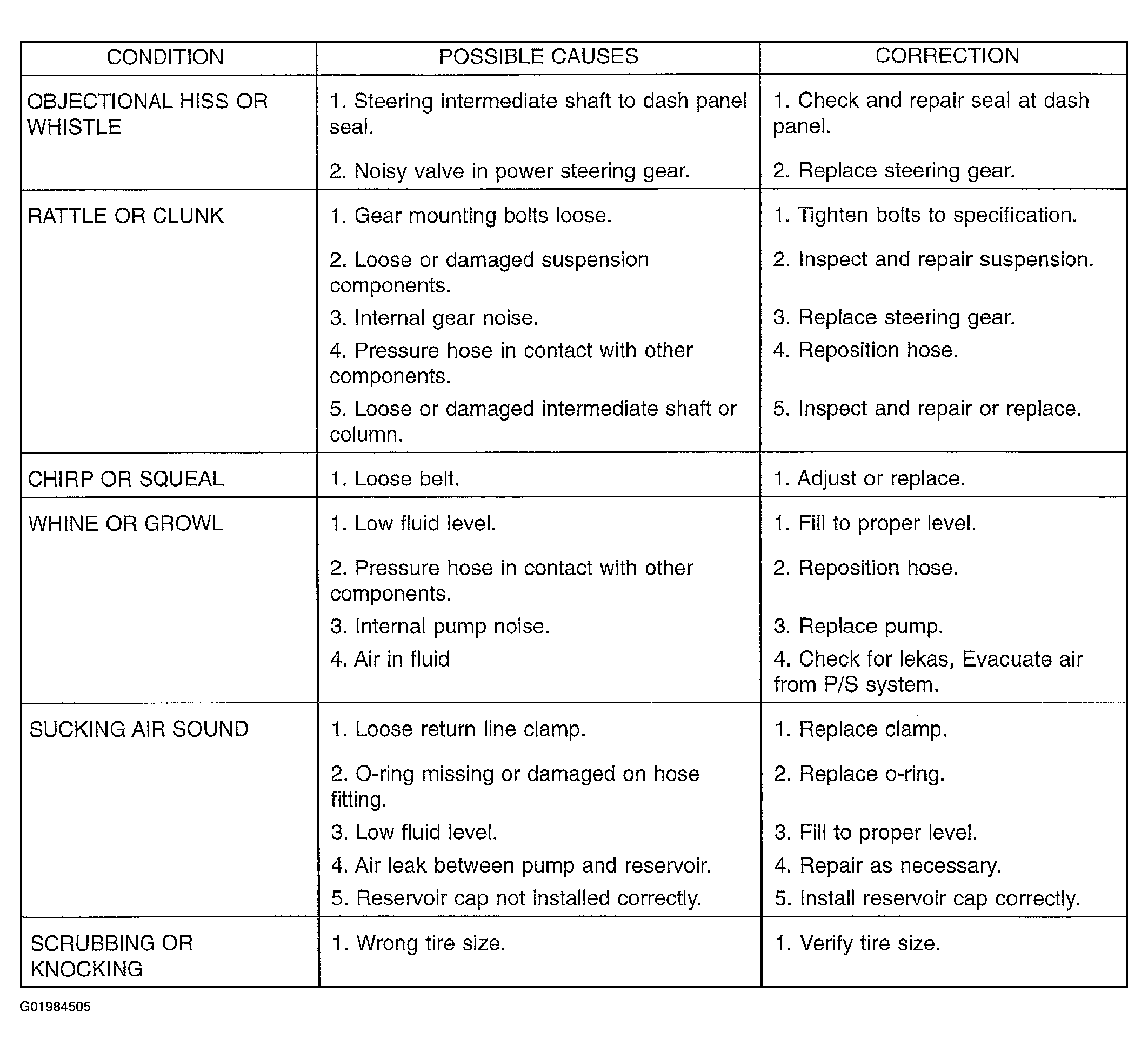

Fig 1: Diagnosis & Testing - Steering Noise

Courtesy of DAIMLERCHRYSLER CORP.

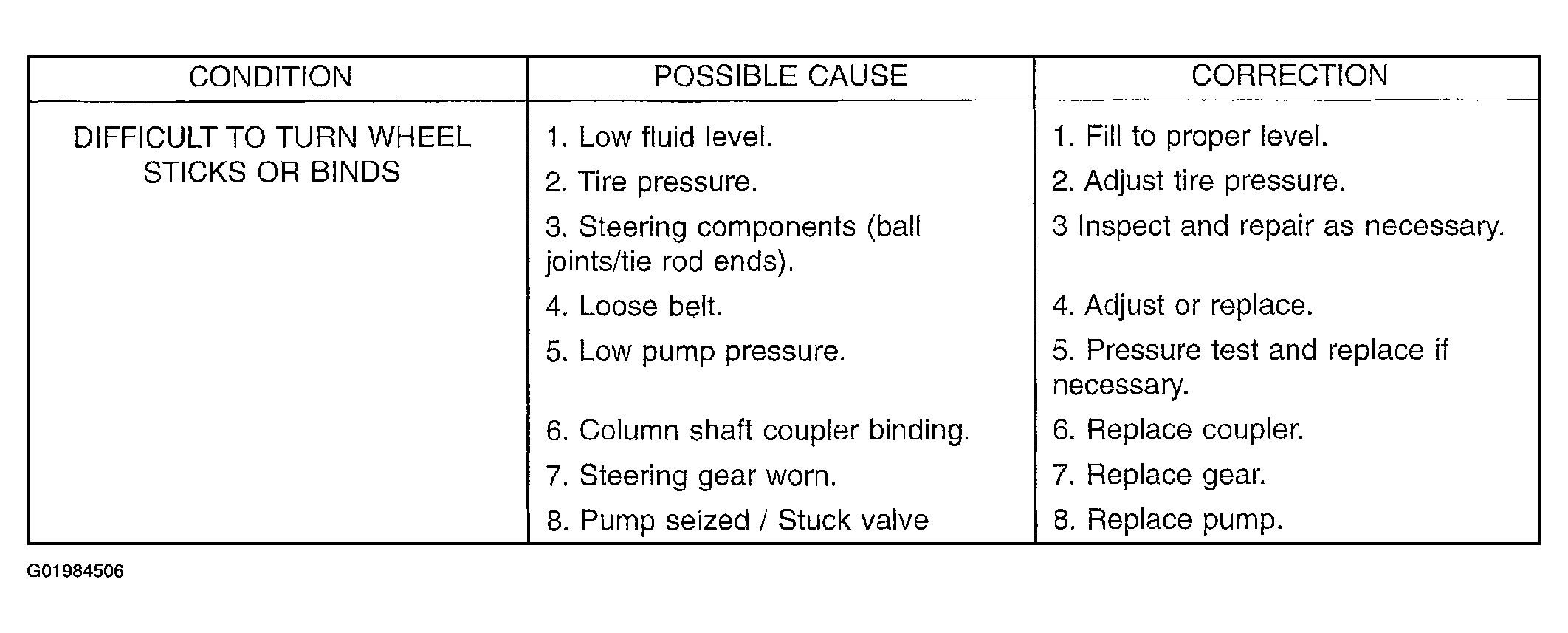

Fig 2: Diagnosis & Testing - Binding & Sticking

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Diagnosis & Testing - Insufficient Assist Or Poor Return To Center

Courtesy of DAIMLERCHRYSLER CORP.

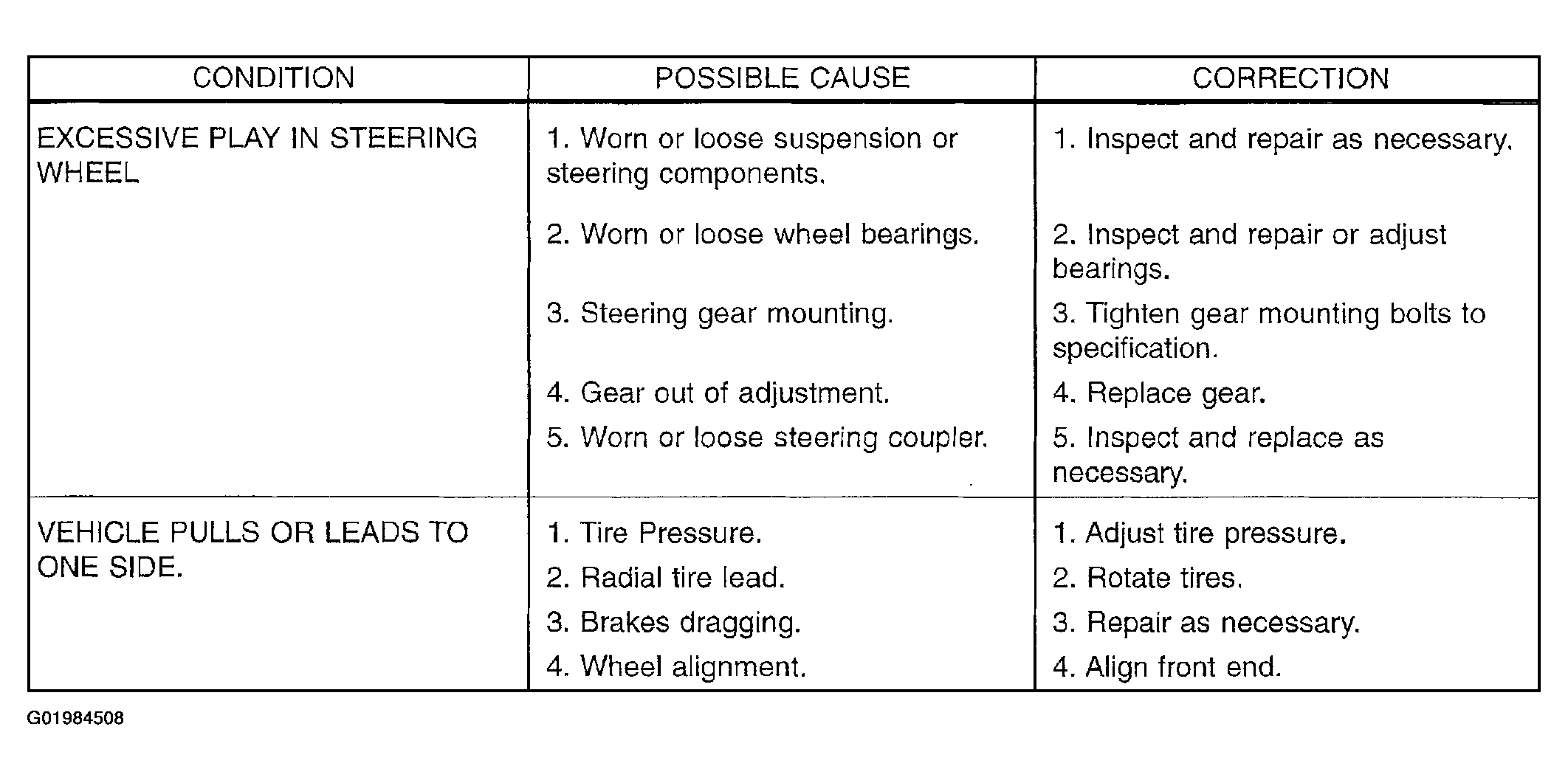

Fig 4: Diagnosis & Testing - Loose Steering & Vehicle Lead

Courtesy of DAIMLERCHRYSLER CORP.
