Section 99 (Power Steering System): Pulley: Removal

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not reuse the old power steering pump pulley it is not intended for reuse. A new pulley must be installed if removed.
  1. Remove the power steering pump assembly, (Refer to PUMP ).
  2. Remove the pulley from the pump using (OTC® 7185) power steering pulley removal tool or equivalent. (Fig 1).

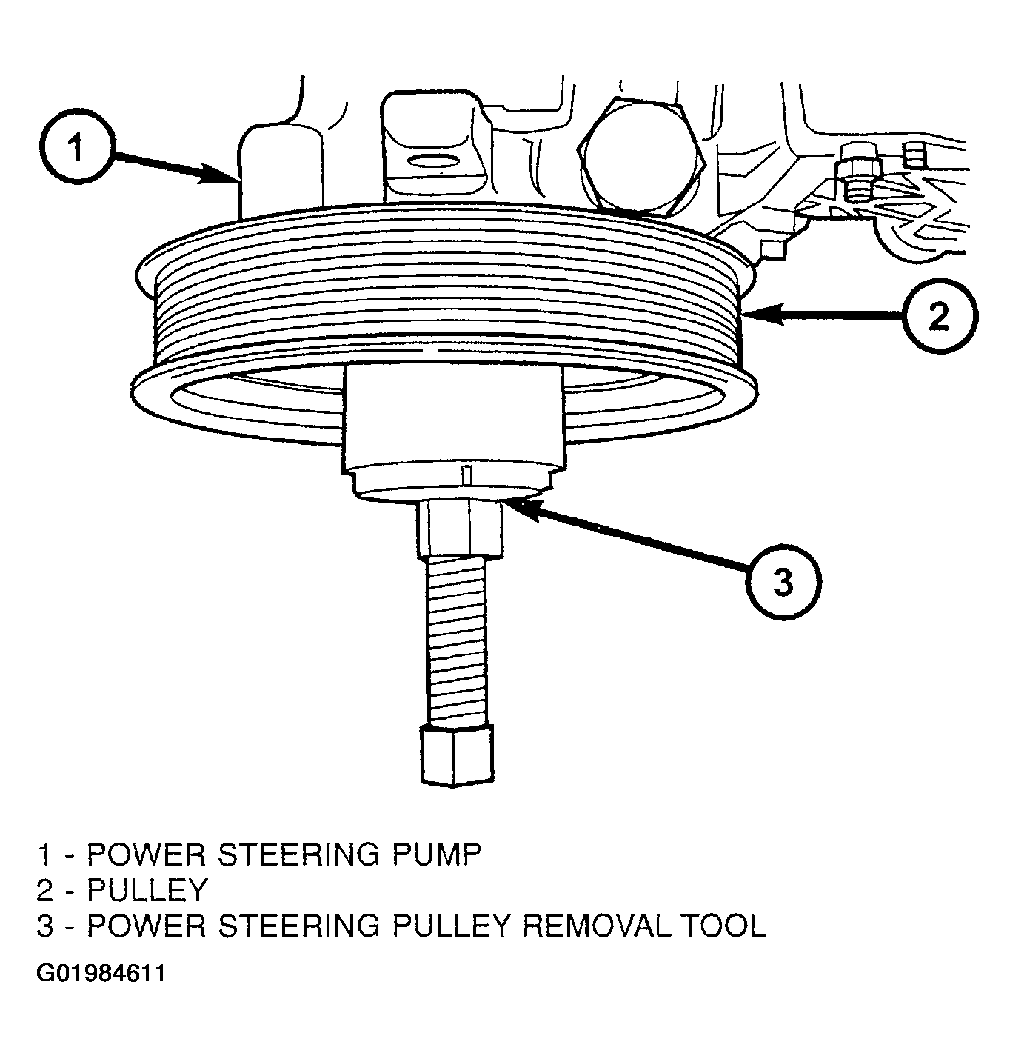

    Fig 1: Removing Pulley
    G01984611Courtesy of DAIMLERCHRYSLER CORP.


  1. Remove the power steering pump assembly, (Refer to REMOVAL ).
  2. Remove the pulley from the pump using (OTC® 7185) power steering pulley removal tool or equivalent. (Fig 1).

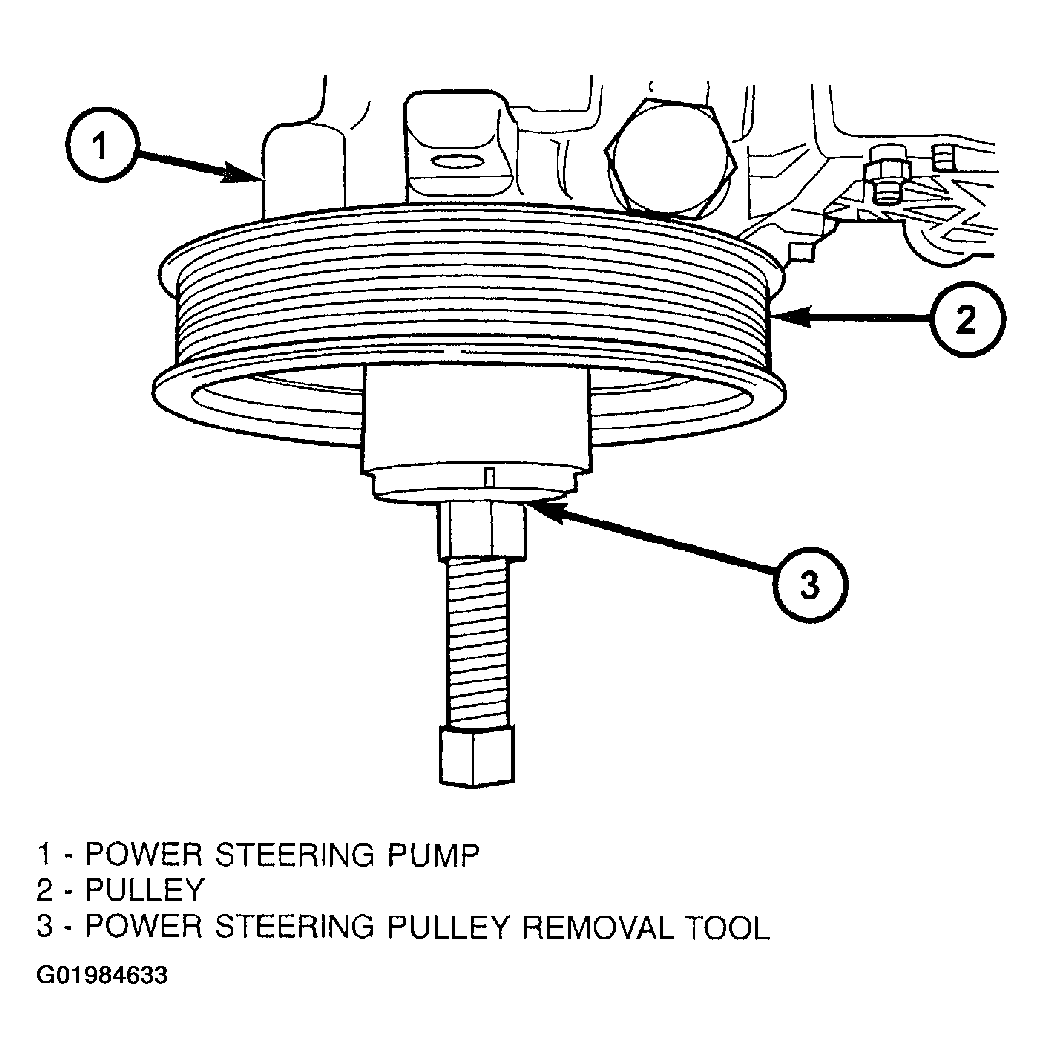

    Fig 1: Removing Pulley
    G01984633Courtesy of DAIMLERCHRYSLER CORP.
