Pitman Arm: Removal
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the drag link from the right knuckle and pitman arm with Puller C-4150A. (Fig 1).
Courtesy of DAIMLERCHRYSLER CORP.

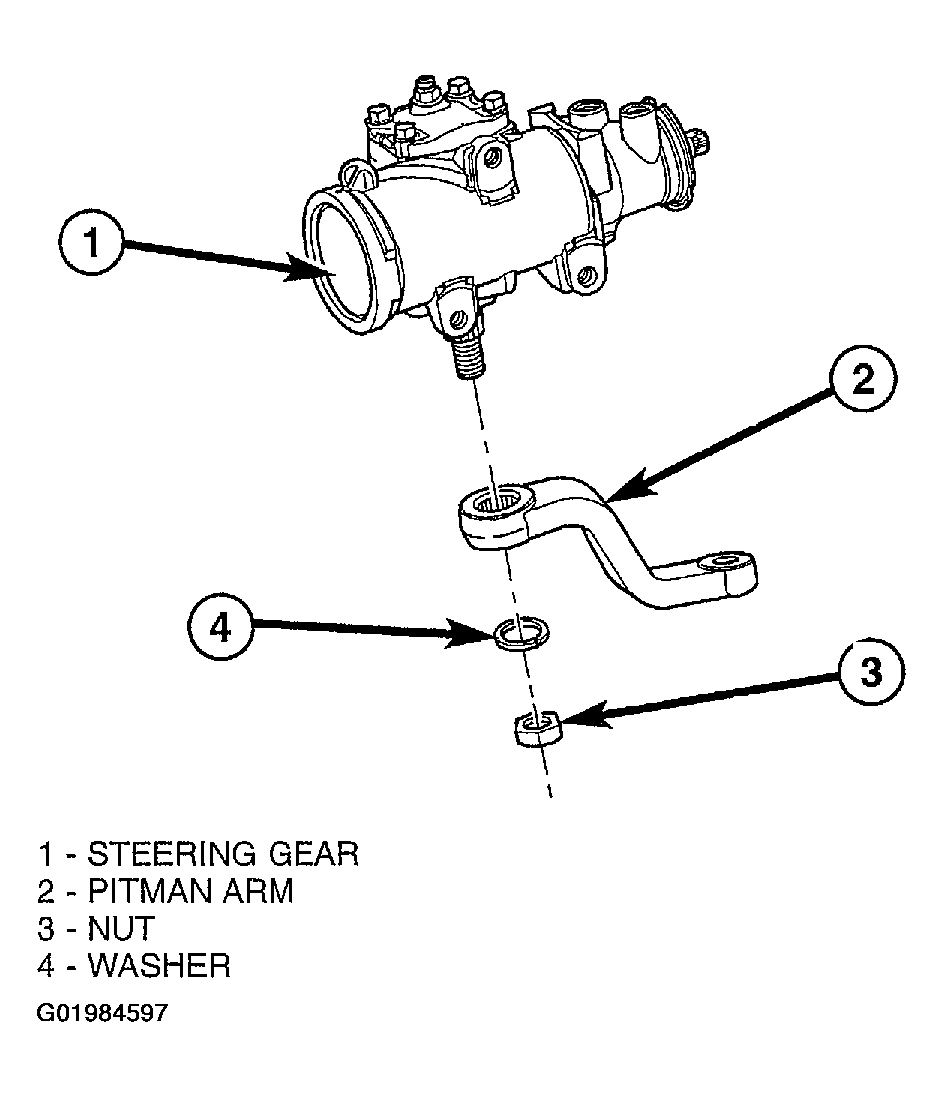

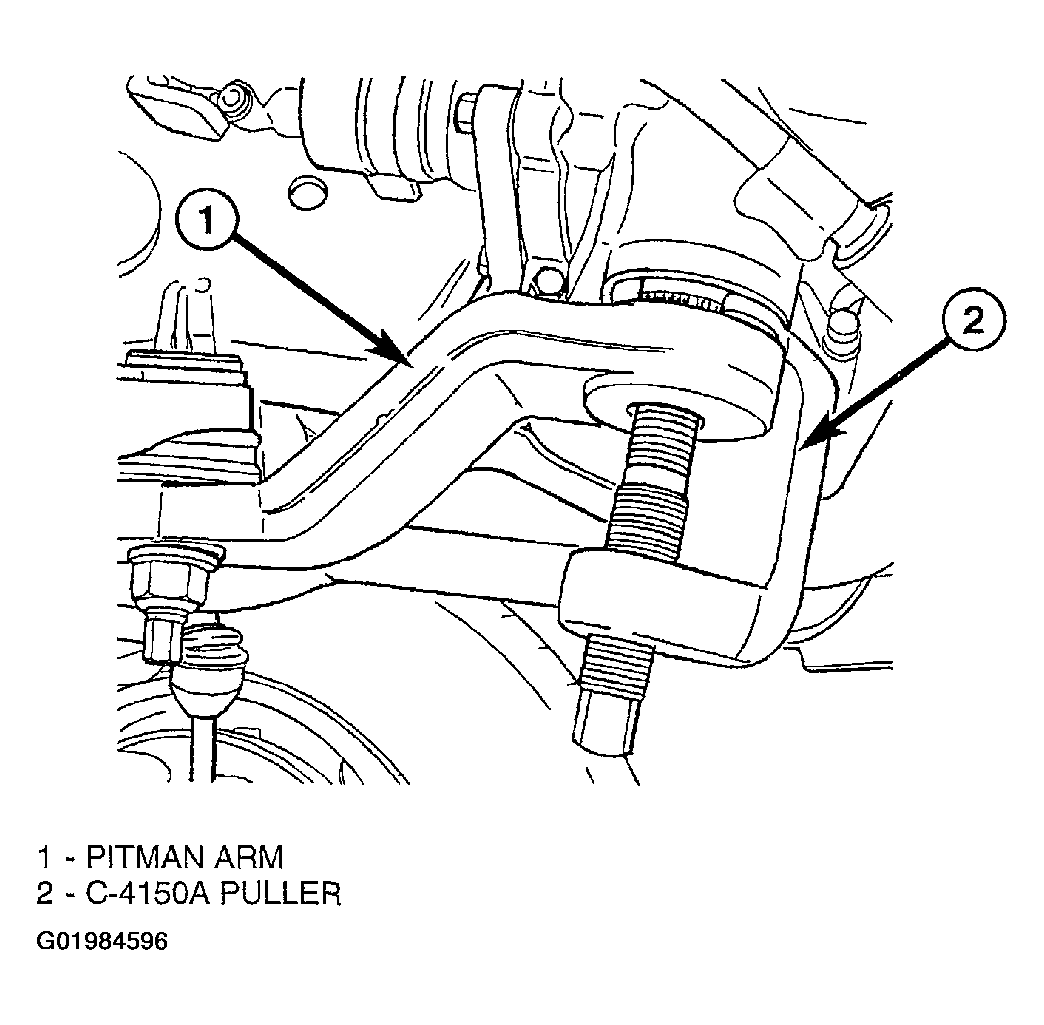

- Mark the pitman arm and shaft positions for installation reference. Remove the nut and washer from the pitman arm. (Fig 2). Remove the pitman arm with Puller C-4150A.
Courtesy of DAIMLERCHRYSLER CORP.
