Drag Link: Removal

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drag link nut from the pitman arm side.
  2. Remove the drag link nut from the knuckle side.
  3. Remove the drag link from the right knuckle and pitman arm with Puller C-3894A. (Fig 1).

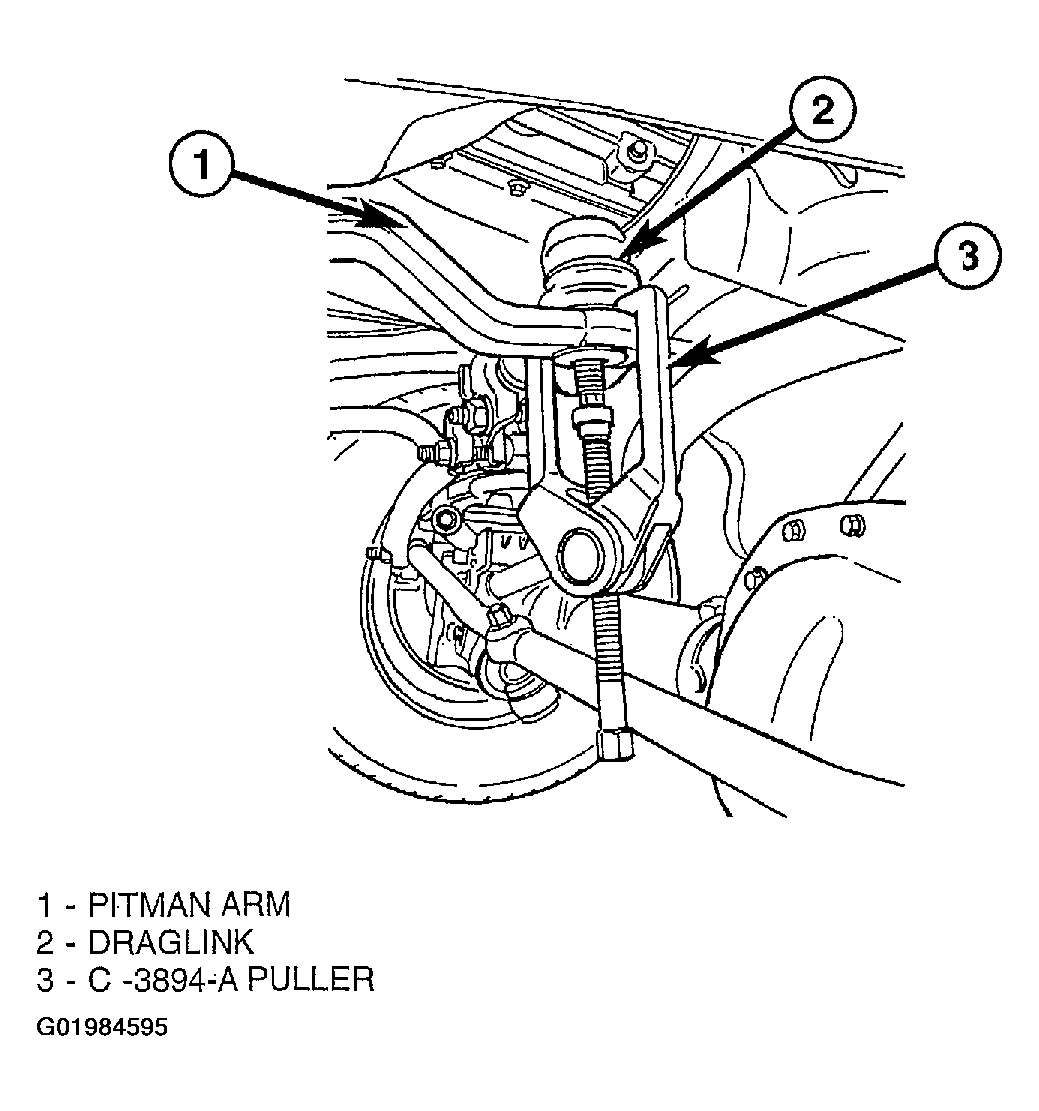

    Fig 1: Removing Drag Link
    G01984595Courtesy of DAIMLERCHRYSLER CORP.
