Gearshift Cable
WARNING: This page is about a different car, the 2004 Dodge Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Check adjustment by starting the engine in "PARK" and "NEUTRAL". Adjustment is correct if the engine starts only in these positions. Adjustment is incorrect if the engine starts in one but not both positions. If the engine starts in any position other than "PARK" or "NEUTRAL", or if the engine will not start at all, the transmission range sensor may be faulty.
- Shift transmission into PARK.

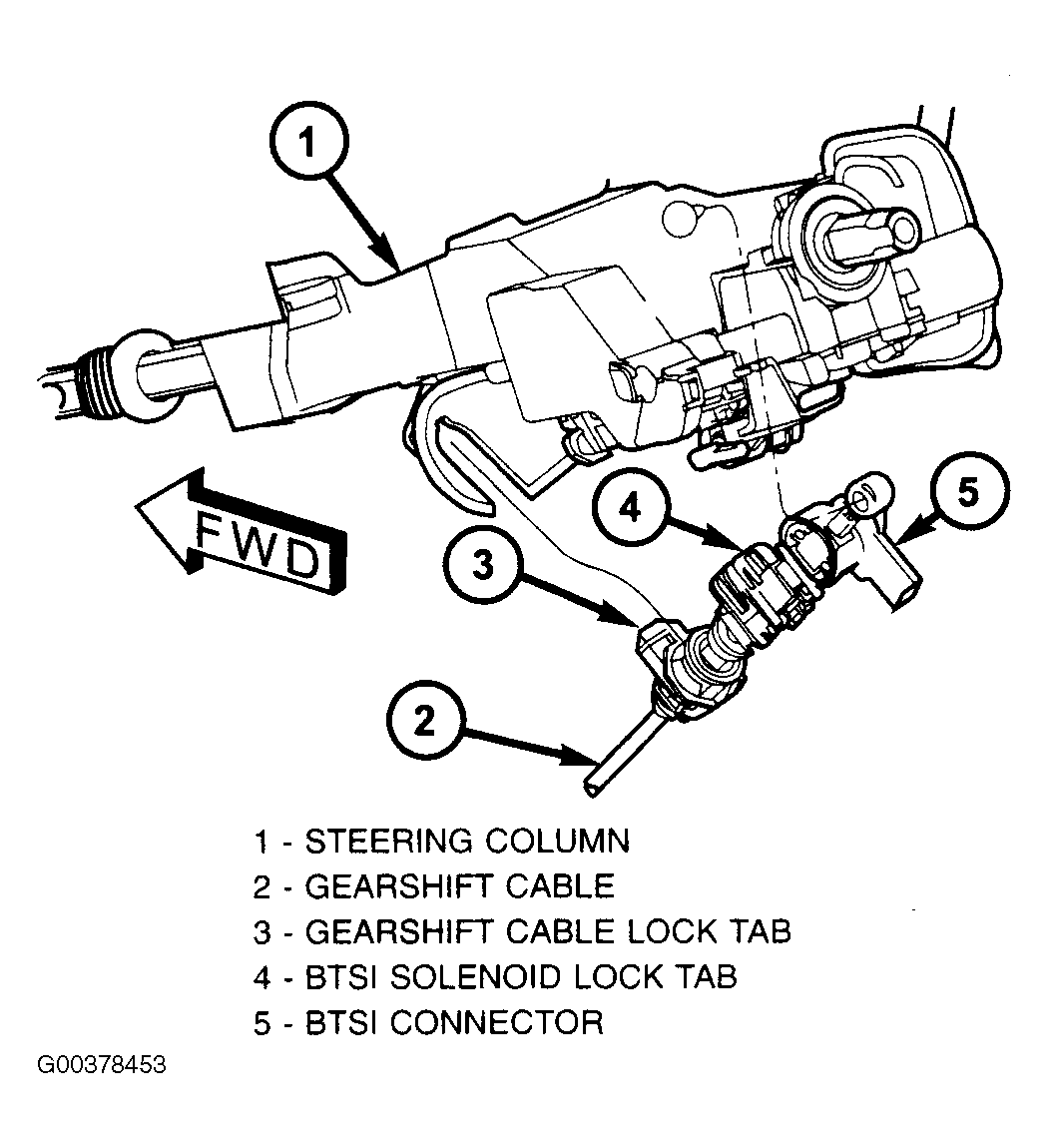

- Release cable adjuster lock tab (underneath the steering column) to unlock cable. See Fig 1.
- Raise vehicle.
- Disengage the cable eyelet from the transmission manual shift lever.
- Verify transmission shift lever is in "PARK" detent by moving lever fully rearward. Last rearward detent is PARK position.
- Verify positive engagement of transmission park lock by attempting to rotate propeller shaft. Shaft will not rotate when park lock is engaged.
- Snap the cable eyelet onto the transmission manual shift lever.
- Lower vehicle.
- Lock shift cable by pressing cable adjuster lock tab upward until it snaps into place.
- Check engine starting. Engine should start only in "PARK" and "NEUTRAL".
