Starter Solenoid

WARNING: This page is about a different car, the 2004 Dodge Pickup, 2004 Dodge Cab & Chassis, 2003 Dodge Pickup, and 2003 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

This test can only be performed with starter motor removed from vehicle.

Remove starter motor from vehicle. See STARTER MOTOR under REMOVAL & INSTALLATION.
Disconnect wire from solenoid field coil terminal.
Check for continuity between solenoid terminal and solenoid field coil terminal with a continuity tester. See Fig 1 . There should be continuity. If OK, go to next step. If not OK, replace faulty starter motor assembly.

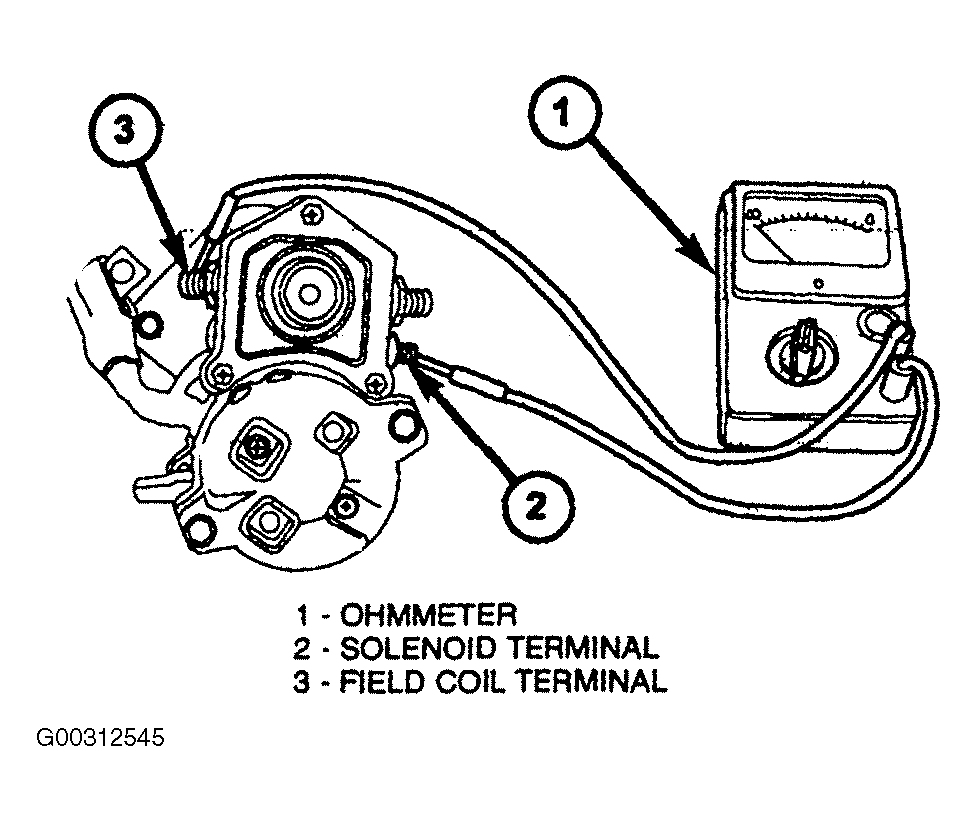

Fig 1: Continuity Between Solenoid Terminal And Case
Courtesy of DAIMLERCHRYSLER CORP.
Check for continuity between solenoid terminal and solenoid case. See Fig 2 . There should be continuity. If not OK, replace faulty starter motor assembly.

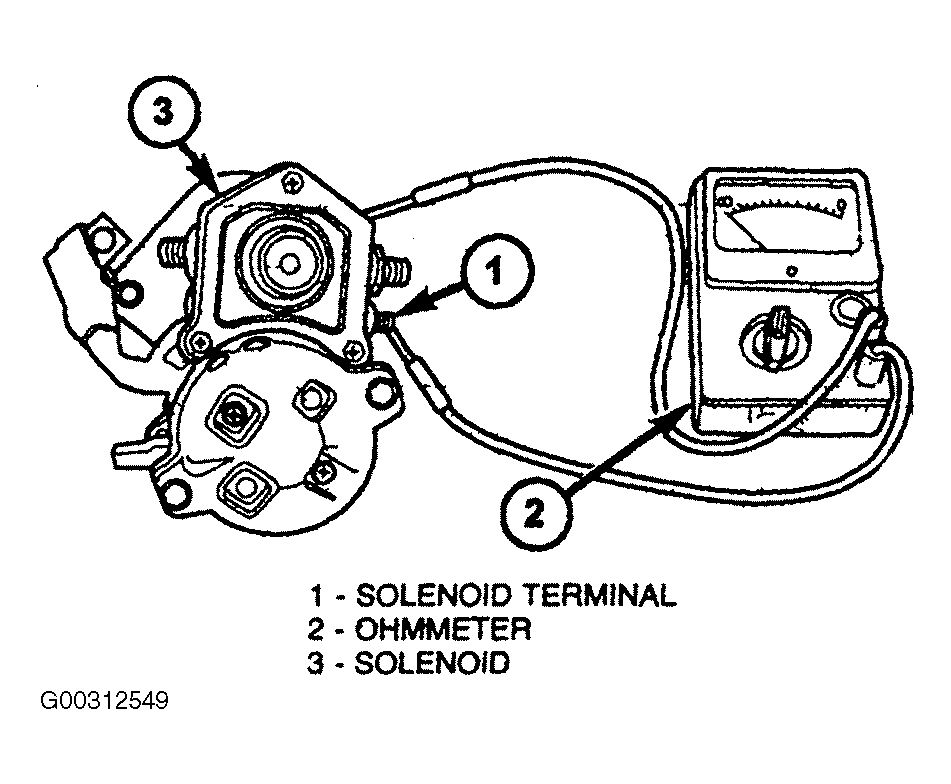

Fig 2: Continuity Between Solenoid Terminal And Case

Courtesy of DAIMLERCHRYSLER CORP.
