Red Brake Warning Indicator Lamp

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

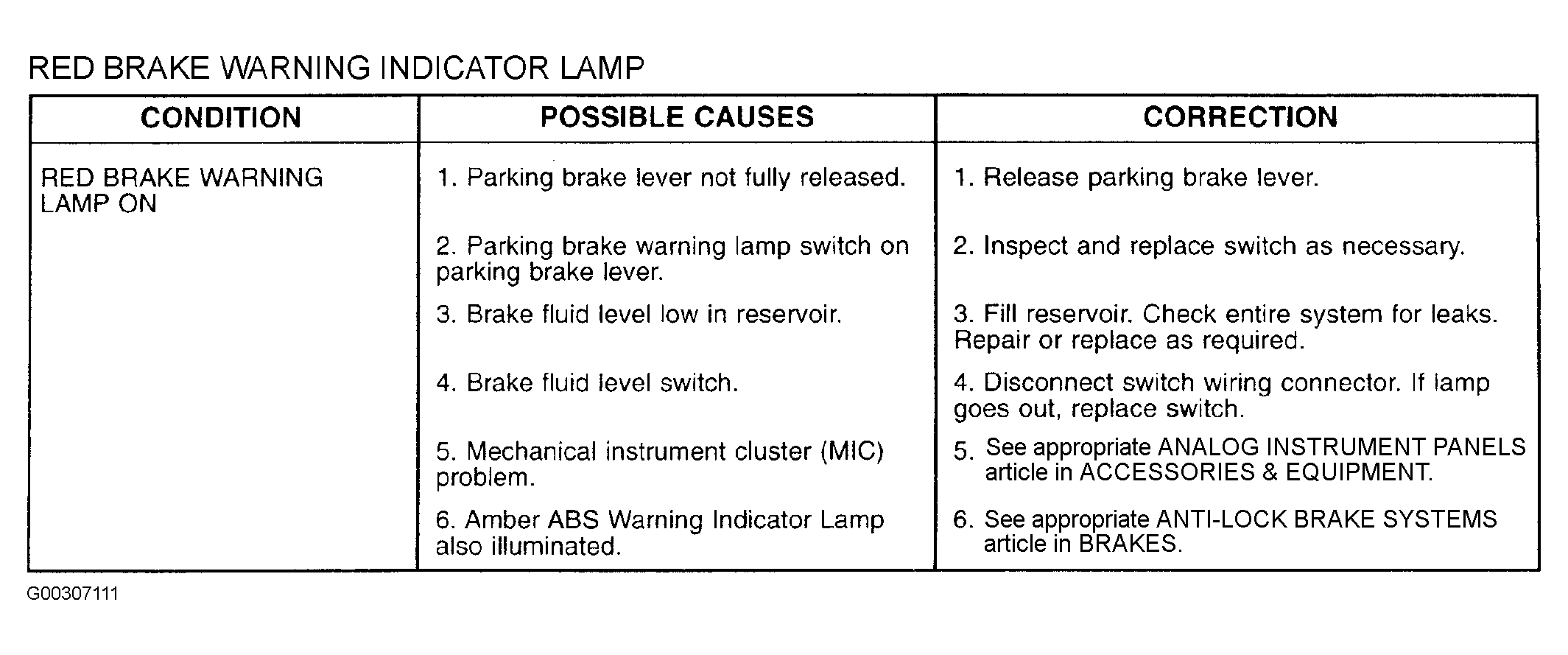

Fig 1: Identifying Red Brake Warning Indicator Lamp Diagnosis Chart
G00307111Courtesy of CHRYSLER CORP.
