Horns Will Not Sound: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Dodge Grand Caravan, 2003 Dodge Caravan, 2003 Chrysler Voyager, 2003 Chrysler Town & Country, and 2002 Dodge Grand Caravan. However, it is still accessible from the selected car via links, so may be relevant.

Check horn fuse No. 8 in the IPM. If fuse is blown, check for a shorted switch in the airbag module. Also see FUSE BLOWN . If fuse is OK, see FUSE OK . See Fig 1.

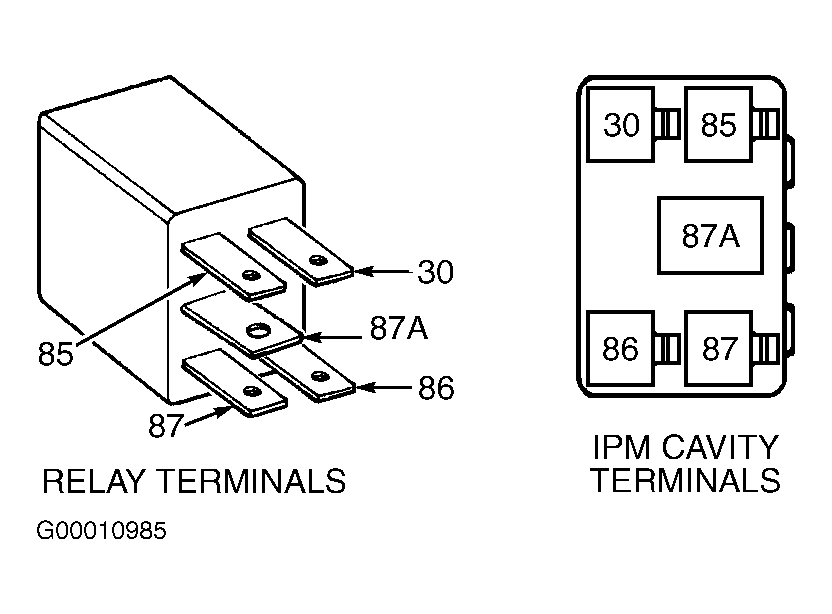

Fig 1: Identifying Horn Relay Terminals & Horn Relay Cavities
G00010985Courtesy of DAIMLERCHRYSLER CORPORATION
