Distribution - Rear: Duct-Distribution: Installation
WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

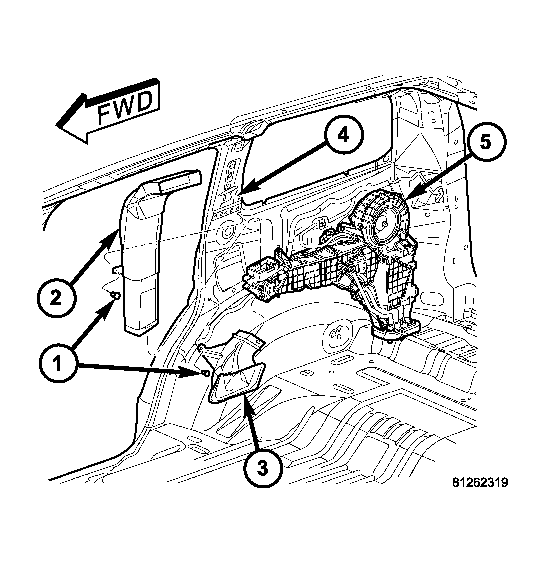

- Connect the rear floor distribution duct (3) to the rear HVAC housing (5).
- Connect the rear ceiling distribution duct (2) to the headliner duct and the rear HVAC housing. Make sure that the rear ceiling distribution duct is fully installed to ensure a good seal.
- Install the push-pin fasteners (1) that secure the rear ceiling distribution duct and the rear floor distribution duct to the right interior quarter panel (4).
- Install the right interior quarter panel trim (Refer to BODY/INTERIOR/QUARTER PANEL TRIM - INSTALLATION) .
