Distribution - Front: Motor-Blower: Installation

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

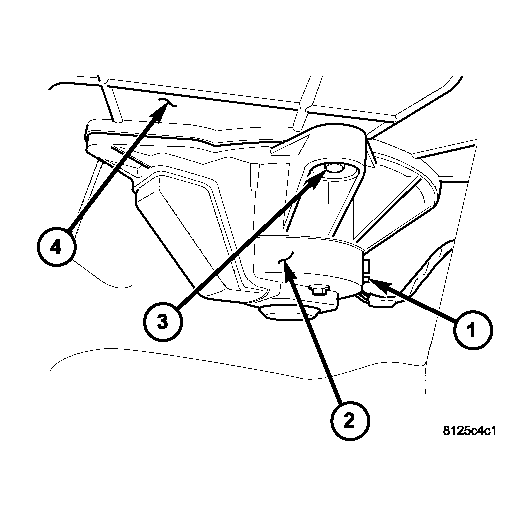

Fig 1: Removing/Installing Blower Motor
GC0011051Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the blower motor and blower wheel assembly (2) into the HVAC housing (4).
  2. Install the three screws (3) that secure the blower motor and blower wheel assembly to the HVAC housing. Tighten the screws to 2.2 N.m (20 in. lbs.).
  3. Connect the wire harness connector (1) to the blower motor.
  4. Install the right side interior cowl trim cover. Refer to PANEL-COWL SIDE TRIM .
  5. Install the right front door sill trim panel. Refer to DOOR - FRONT .
  6. Reconnect the negative battery cable.
