Distribution - Front: Duct-Defroster: Installation

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

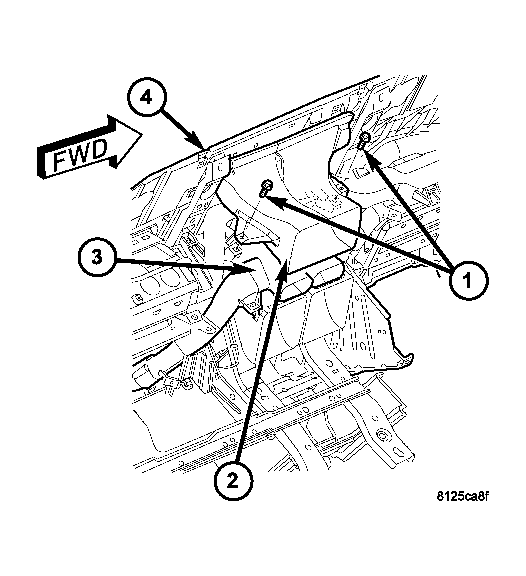

Fig 1: Locating Screws Securing Defroster Duct To Demister Center Duct
GC0011033Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the defroster duct into the instrument panel.
  2. Install the two screws that secure the defroster duct to the demister center duct. Tighten the screws to 2 N.m (17 in. lbs.).

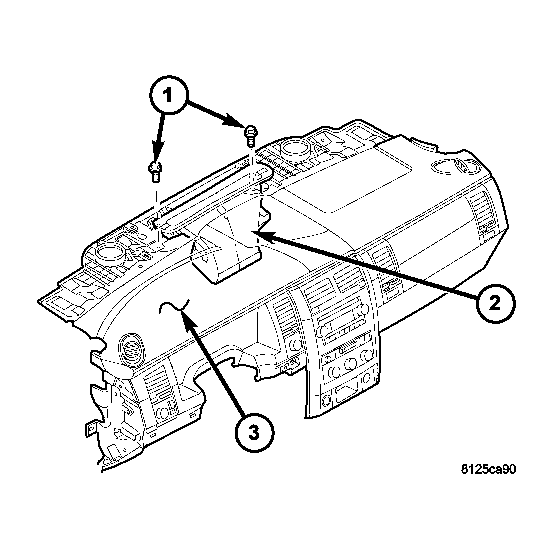

    Fig 2: Locating Screws Securing Defroster Duct To Instrument Panel
    GC0011032Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the two screws that secure the defroster duct to the top of the instrument panel. Tighten the screws to 2 N.m (17 in. lbs.).
  4. Install the instrument panel (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - INSTALLATION) .
