Controls - Rear: Control-A/C-Heater: Removal

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

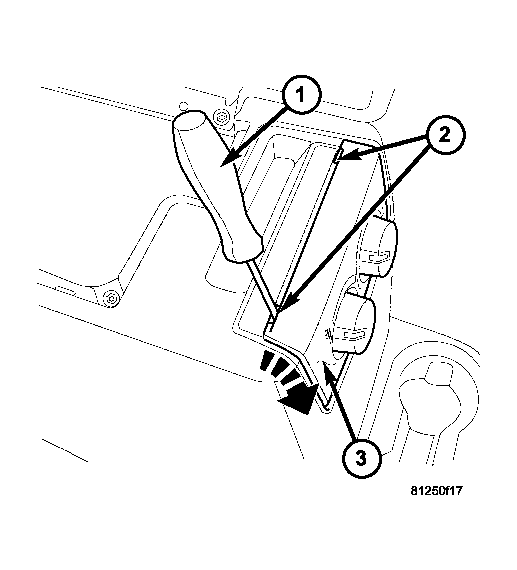

Fig 1: Pushing Clip Retainers Down Using Screwdriver
GC0011026Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the negative battery cable.
  2. Using a small screwdriver or similar flat blade tool (1), gently push down on the clip retainer (2) located at each top corner of the rear A/C-heater control (3). Rotate the top of rear A/C-heater control downwards to release the two bottom retaining tabs from the slots in the center floor console.

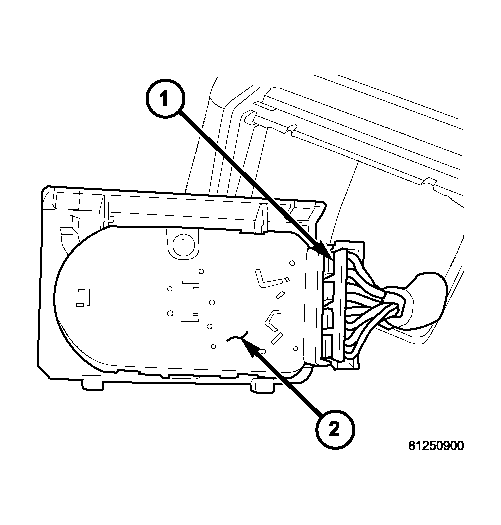

    Fig 2: Locating Wire Harness Connector At Rear A/C Heater Control
    GC0011025Courtesy of DAIMLERCHRYSLER CORP.
  3. Disconnect the wire harness connector (1) from the rear A/C-heater control (2).
  4. Remove the rear A/C-heater control from the vehicle.
