Controls - Rear: Control-A/C-Heater: Installation

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Wire Harness Connector At Rear A/C Heater Control

Courtesy of DAIMLERCHRYSLER CORP.

Position the rear A/C-heater control (2) near the center floor console.
Connect the wire harness connector (1) to the back of the rear A/C-heater control.

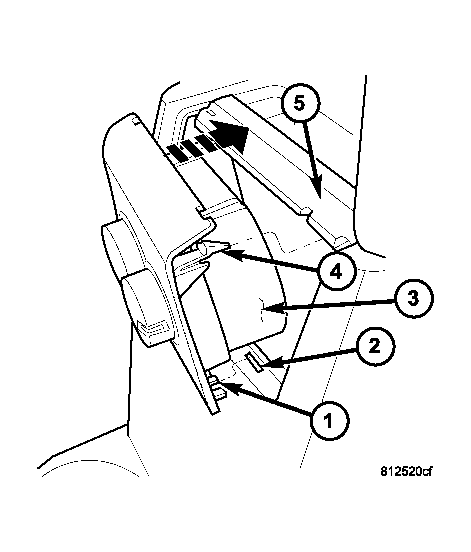

Fig 2: Locating Two Slots At Floor Console Opening
Courtesy of DAIMLERCHRYSLER CORP.
Insert the two locator tabs on the bottom of the rear A/C-heater control (1) into the two slots on the bottom edge of the floor console opening (2).
Rotate the rear A/C-heater control (3) forward far enough to align the two snap clips on the top of the rear A/C-heater control (4) with the receptacles in the top edge of the floor console opening (5).
Using hand pressure, press the top edge of the rear A/C-heater control forward until the two snap clips are fully seated in into the receptacles.
Reconnect the negative battery cable.

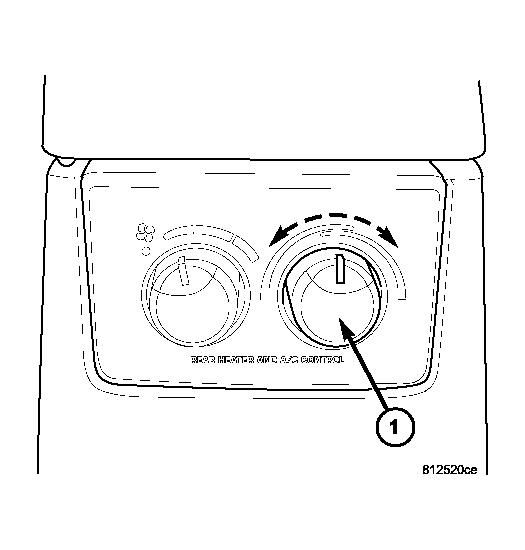

Fig 3: Rotating Rear Temperature Selector
Courtesy of DAIMLERCHRYSLER CORP.
Using a scan tool, calibrate the Rear Temperature Selector potentiometer calibration values.
Verify that the Actuator Calibration of the front A/C-heater control has passed. If an Actuator Calibration has not passed correct any errors before proceeding.
Rotate the Rear Temperature Selector (1) counterclockwise to the Cold Position, allow the Selector to remain in the Cold Position for 5 seconds.
Rotate the Rear Temperature Selector Clockwise to the Hot Position, allow the Selector to remain in the Cold Position for 5 seconds.
Calibration is now complete.
