Controls - Rear: Control-A/C-Heater: Description
WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

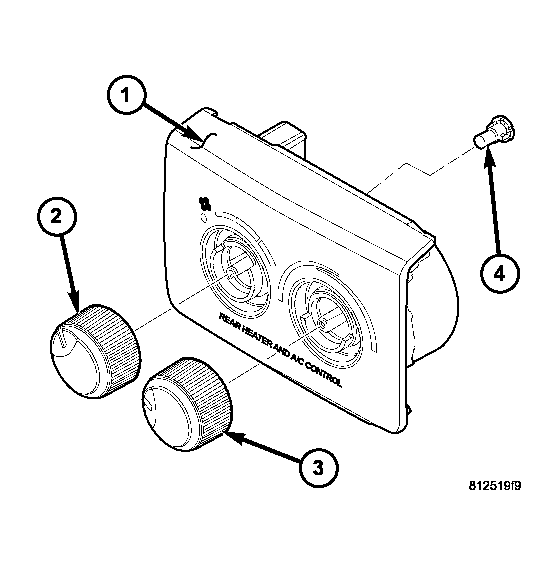

The rear A/C-heater control (1) for the rear heater-A/C system is located at the rear of the center floor console and allows intermediate seat passengers to adjust rear temperature and blower motor speed when the front A/C-heater control is set to the Rear position, otherwise the front A/C-heater control operates both the front and the rear heater-A/C systems. The rear A/C-heater control contains:
- a rotary control knob (2) for rear fan speed selection and turning the rear heater-A/C system off.
- a rotary control knob (3) for rear temperature control.
The rear A/C-heater control cannot be repaired and, if faulty or damaged, it must be replaced. The illumination lamp (4) and the control knobs are available for service replacement.
